Differential Case: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

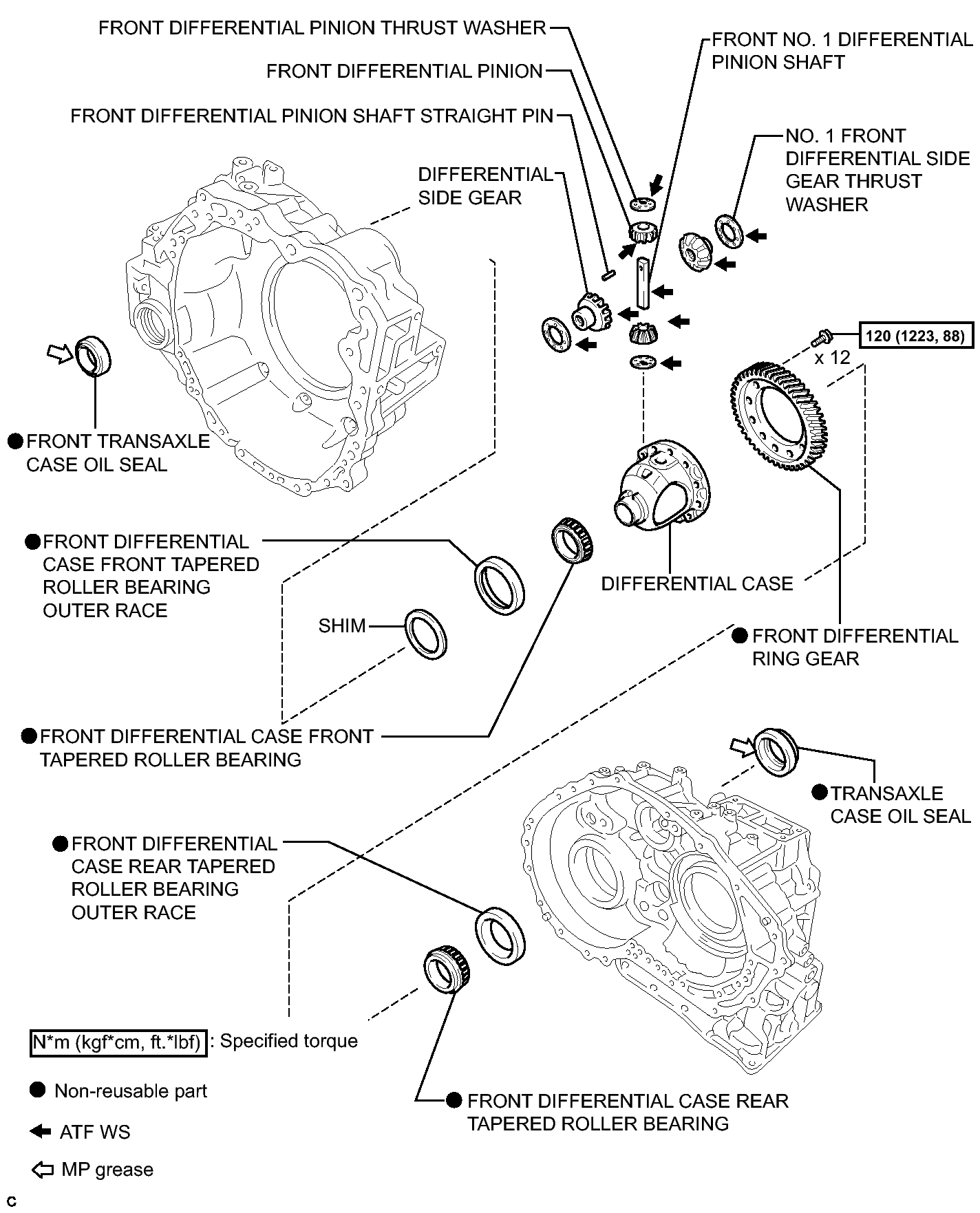

Fig 1: Identifying Differential Case Replacement Components With Torque Specification
GTY205522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
