Automatic Transaxle Unit: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

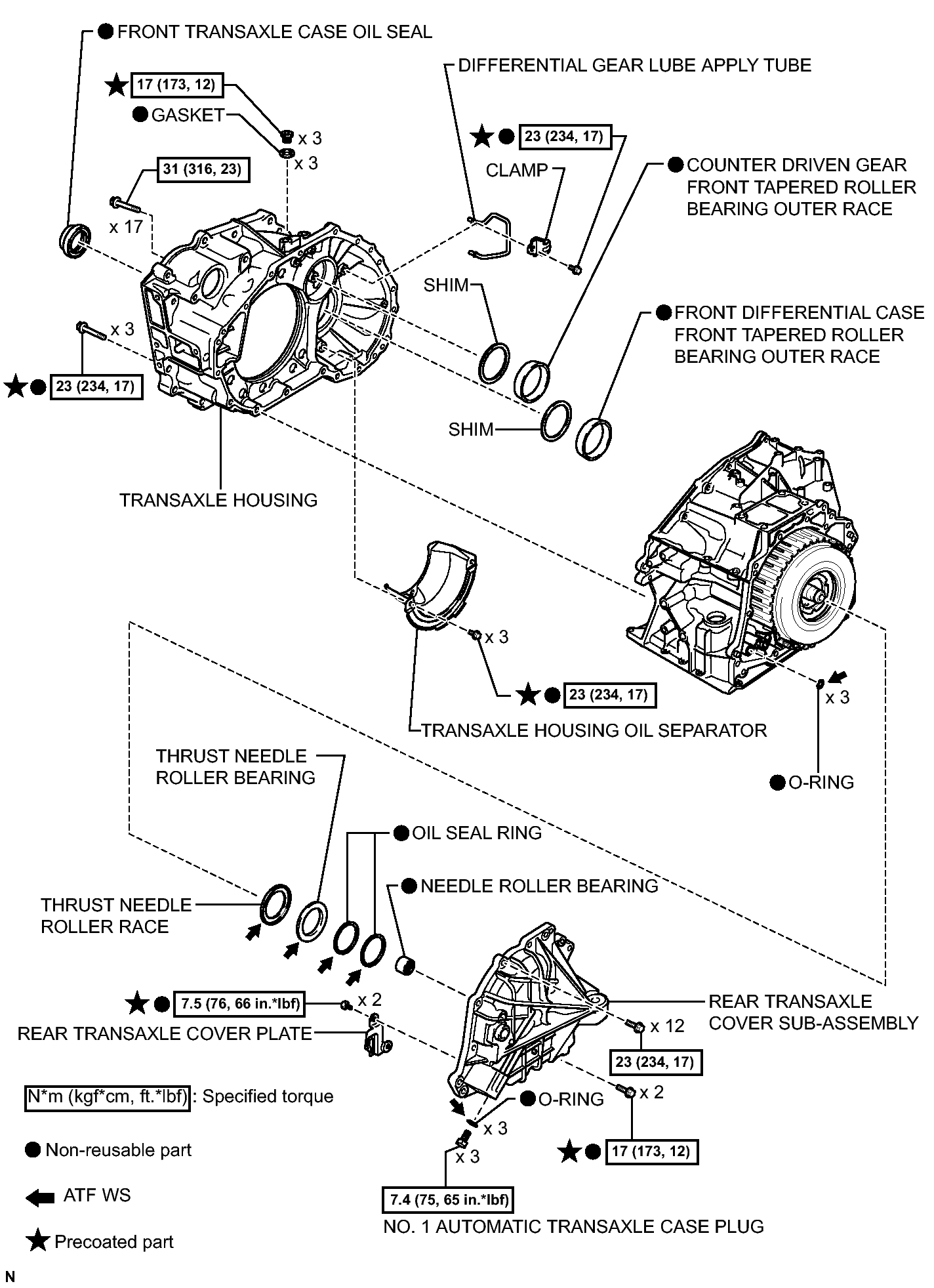

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

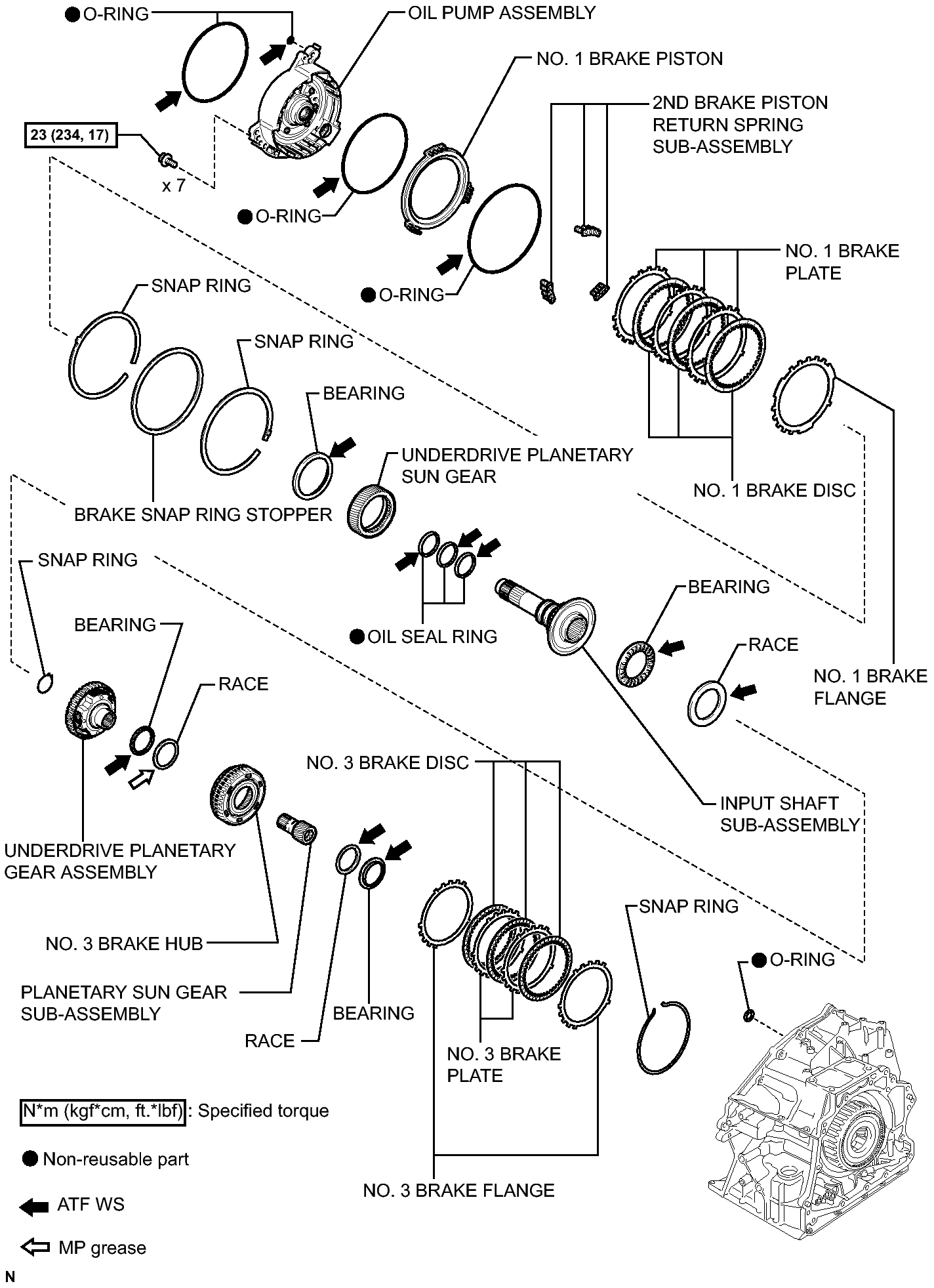

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

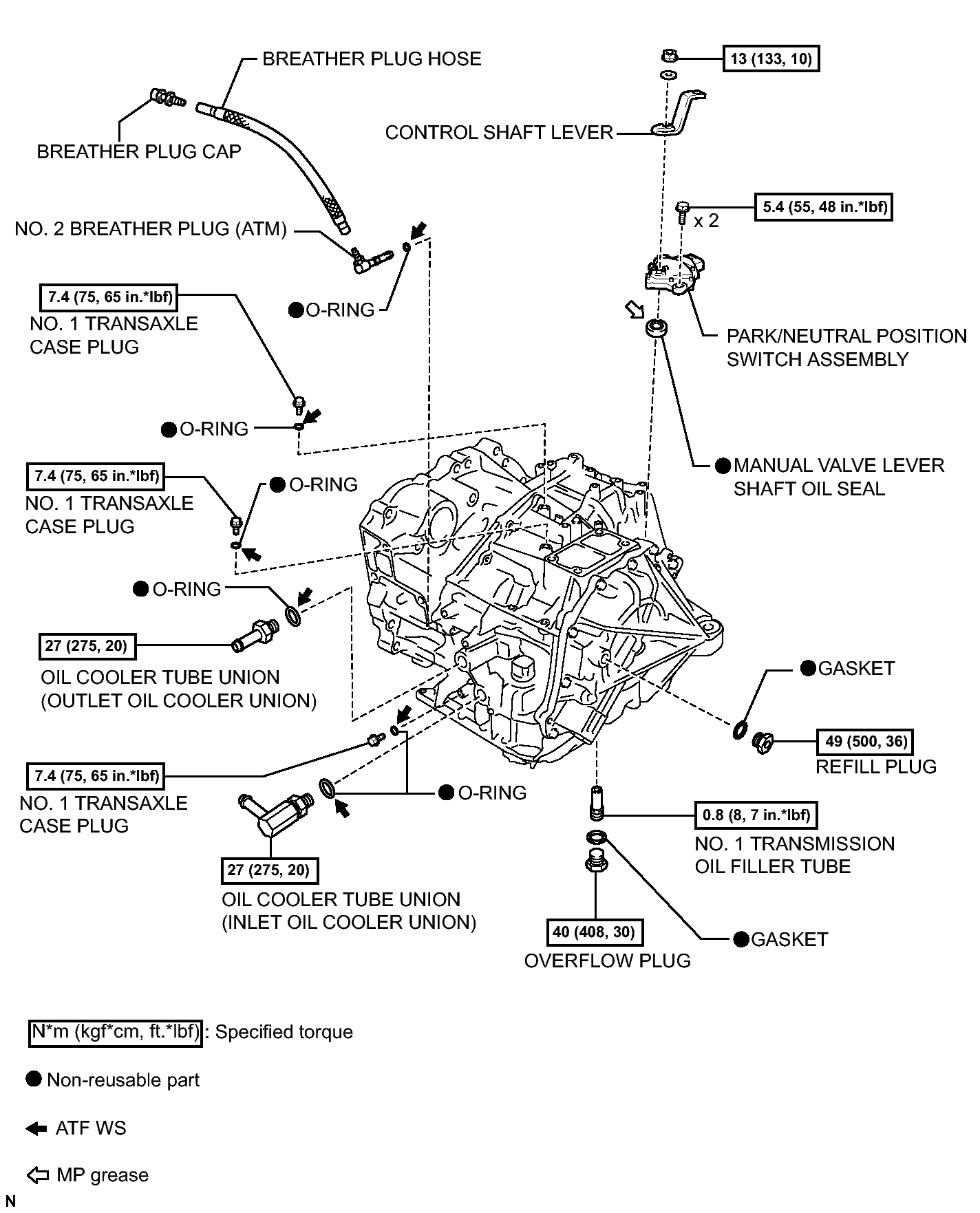

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

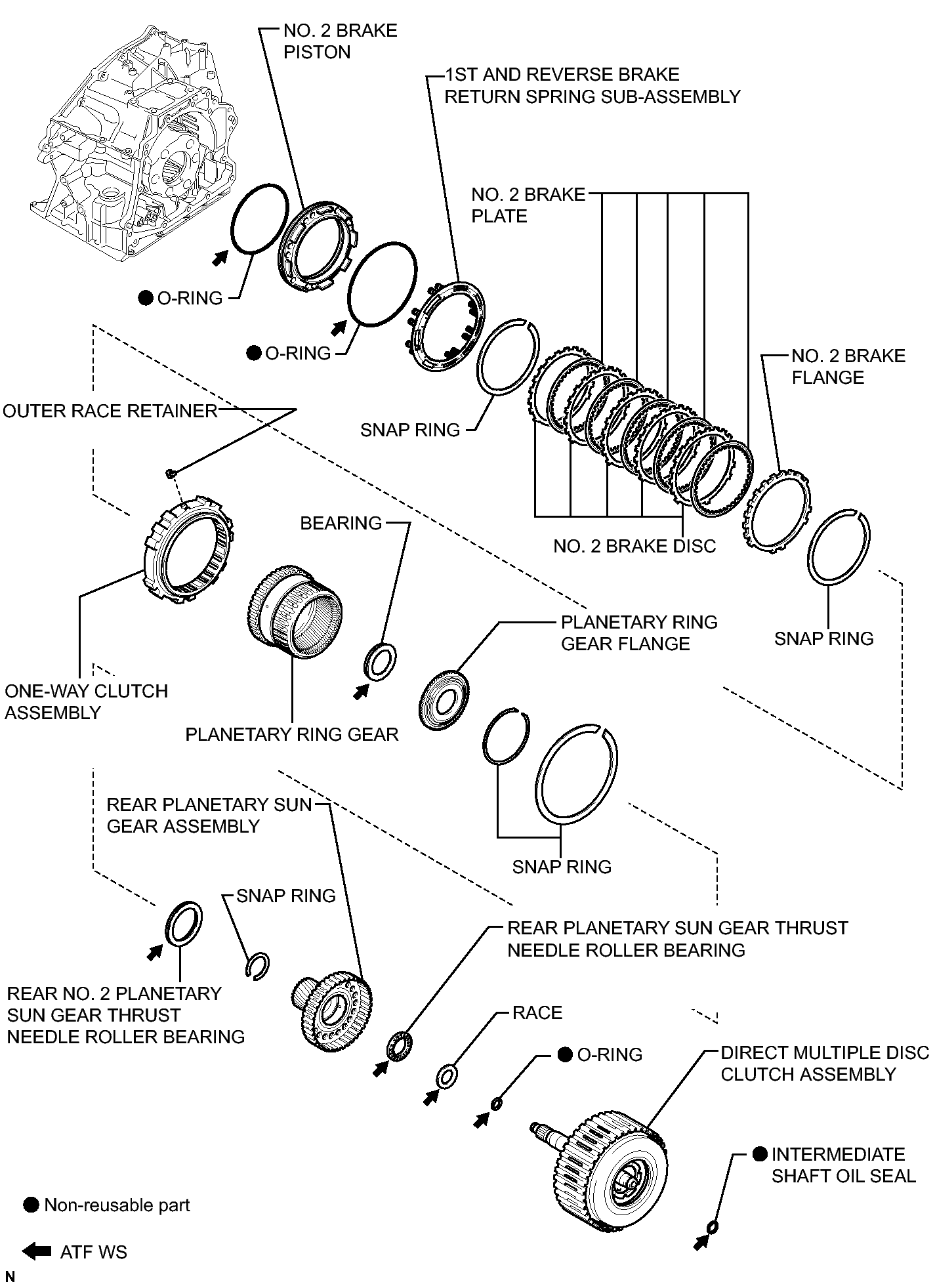

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

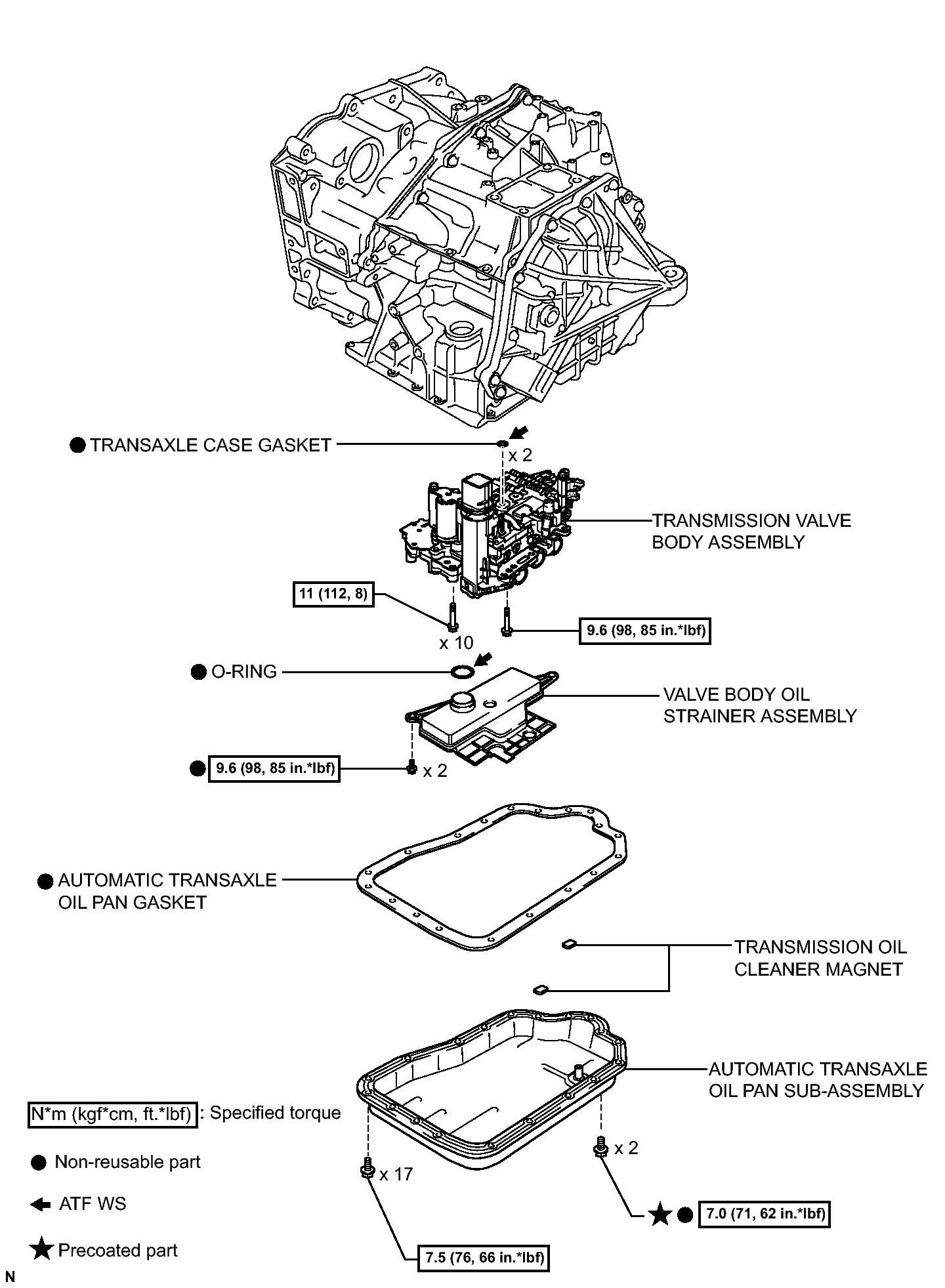

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (5 Of 7)

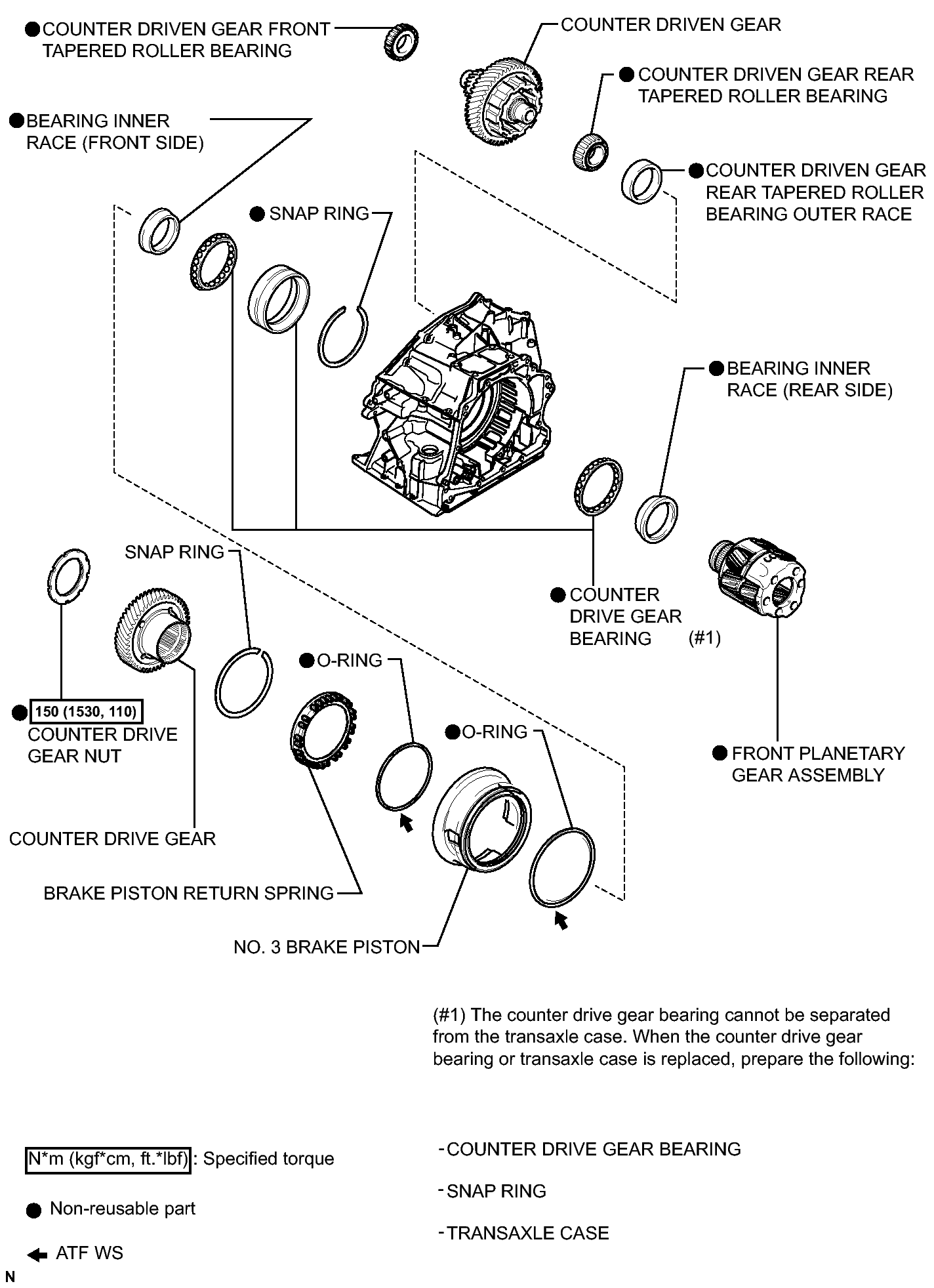

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (6 Of 7)

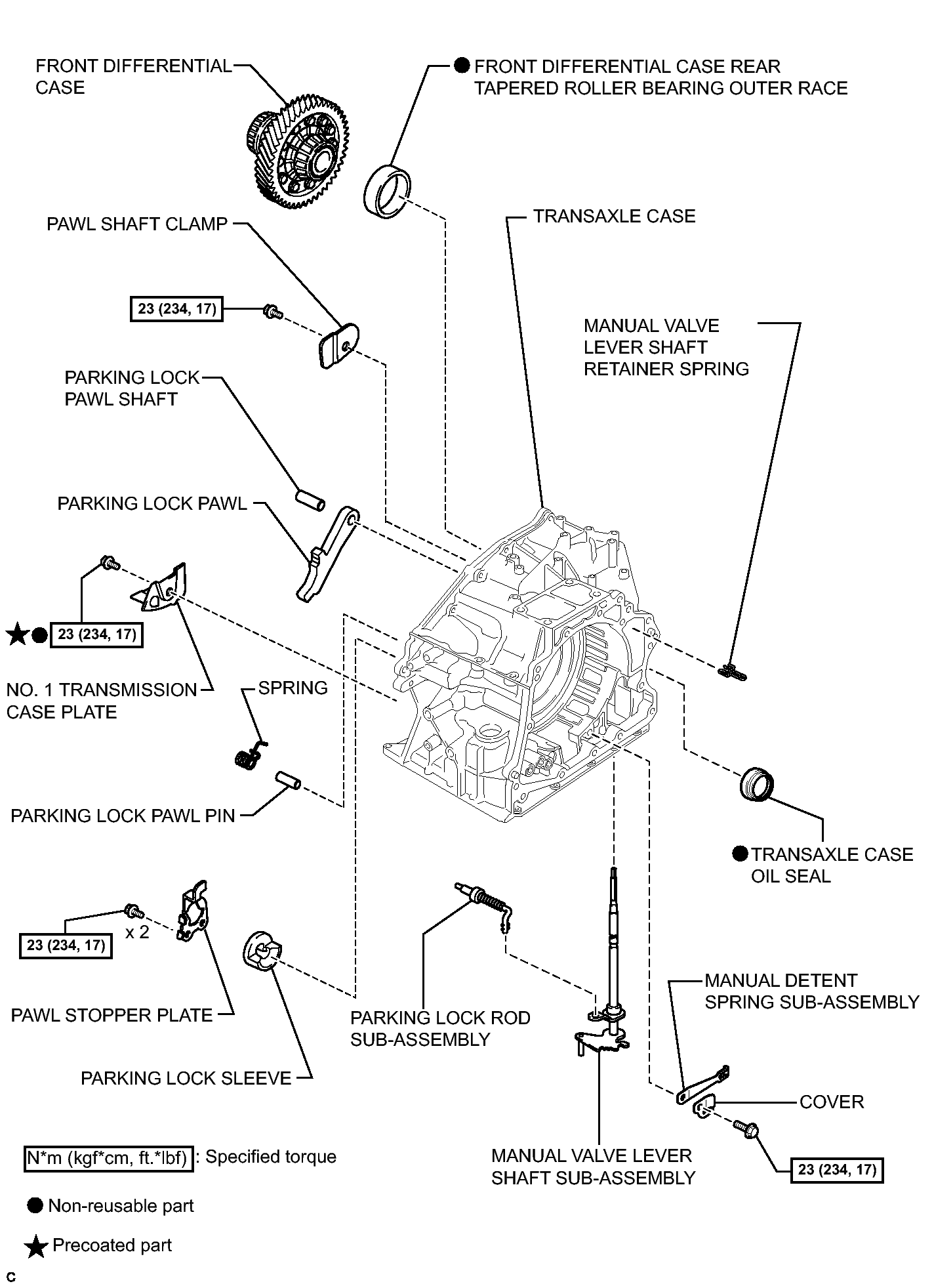

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (7 Of 7)
