Automatic Transaxle Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (1 Of 3)
GTY205639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

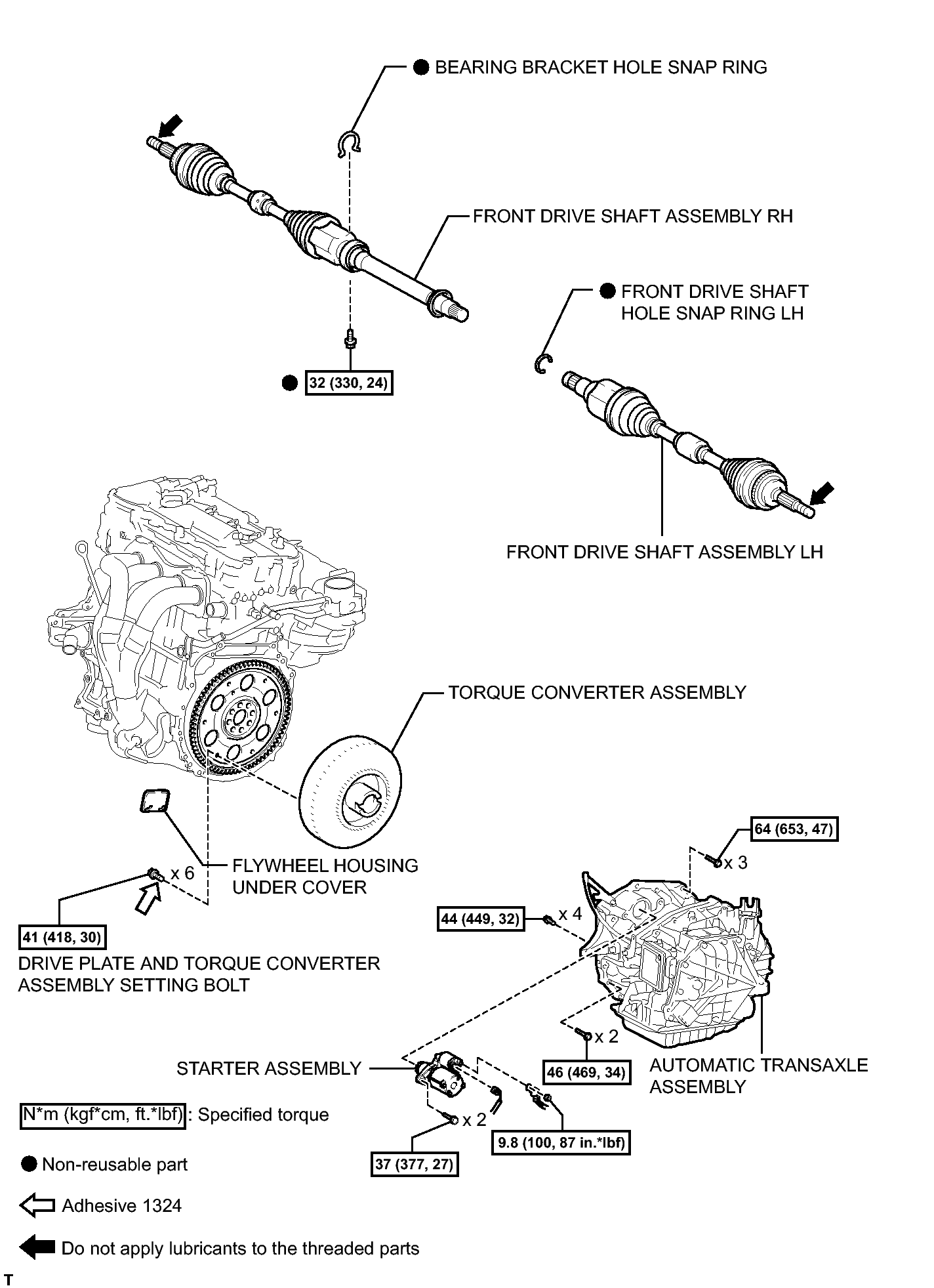

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY383942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

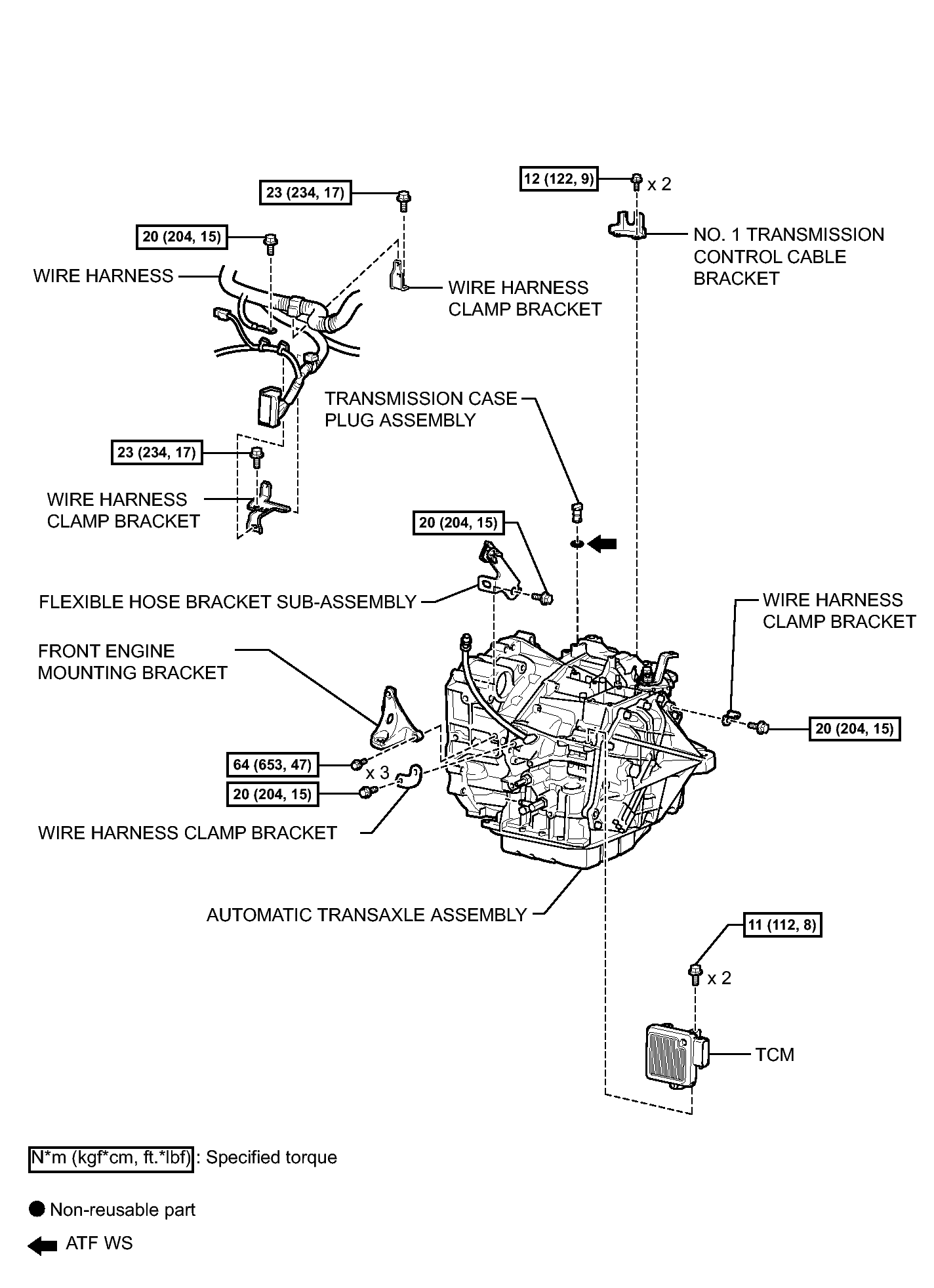

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (3 Of 3)
GTY306466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
