Air Cooled Oil Cooler: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Air Cooled Oil Cooler Replacement Components With Torque Specifications (1 Of 2)
GTY297454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

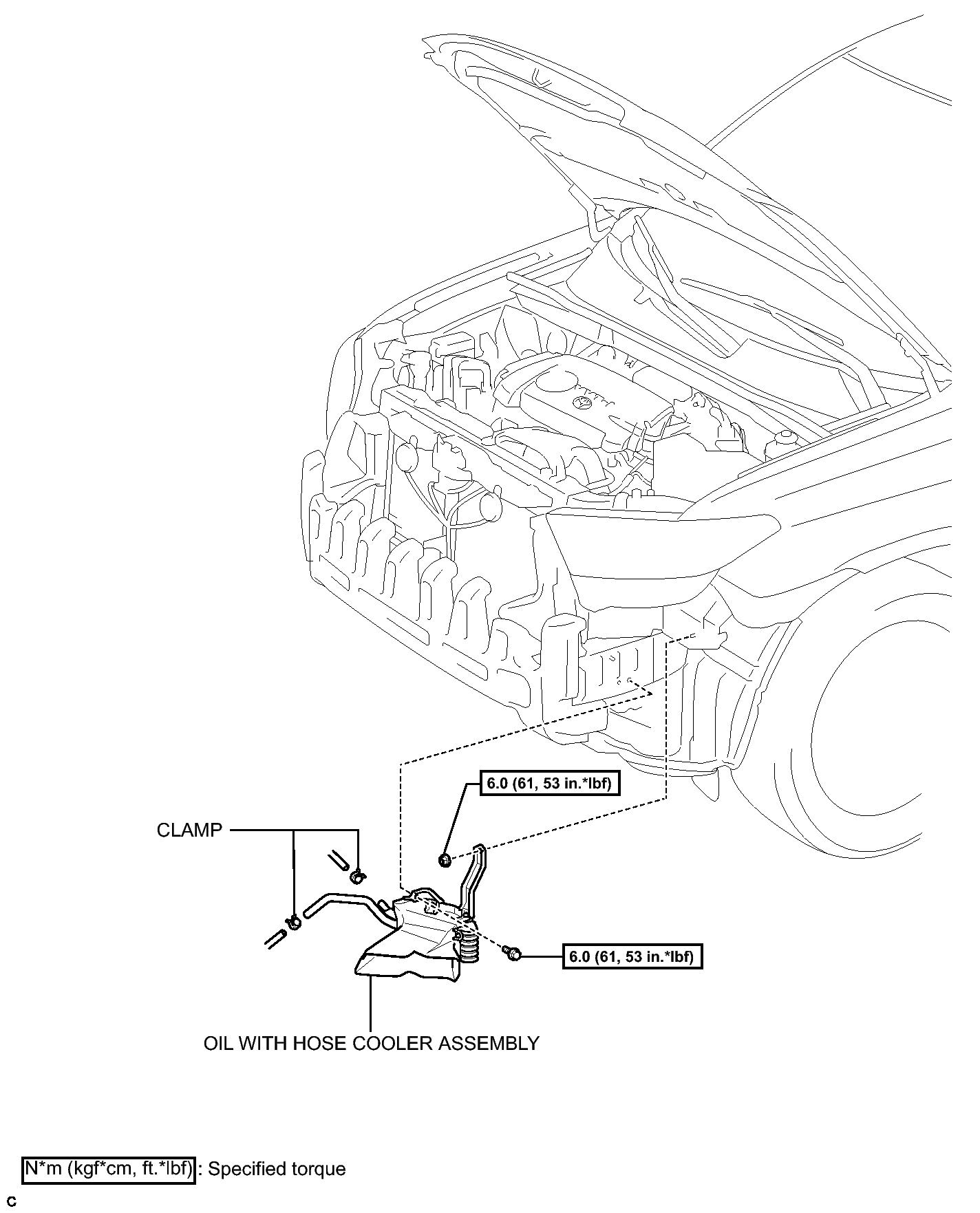

Fig 1: Identifying Air Cooled Oil Cooler Replacement Components With Torque Specifications (2 of 2)
GTY303929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
