Section 33 (Charging System (1AR-FE) (Service Information) (Except Hybrid)): Generator: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

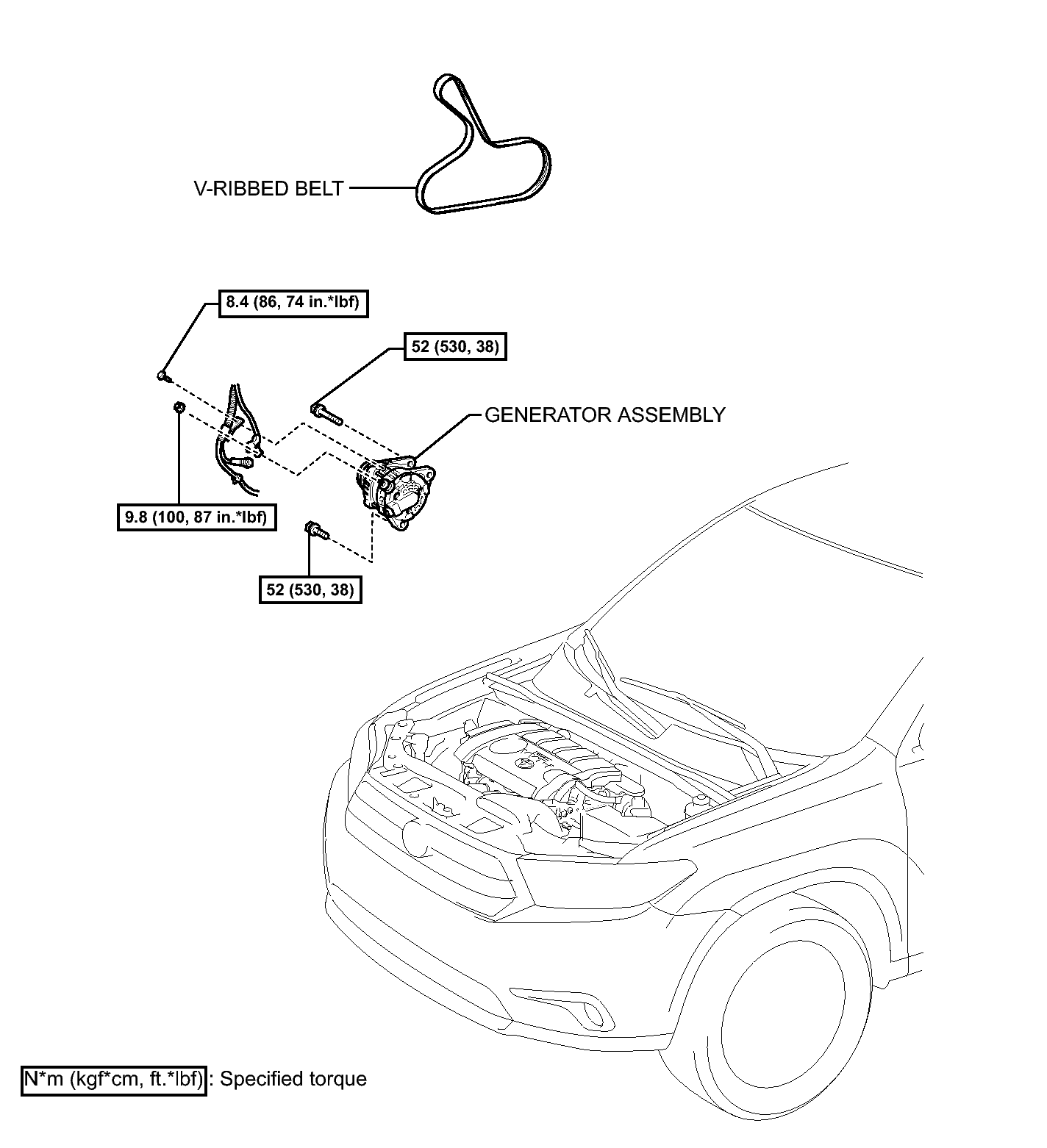

Fig 1: Identifying Generator Replacement Components With Torque Specifications (1 Of 2)
GTY303772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

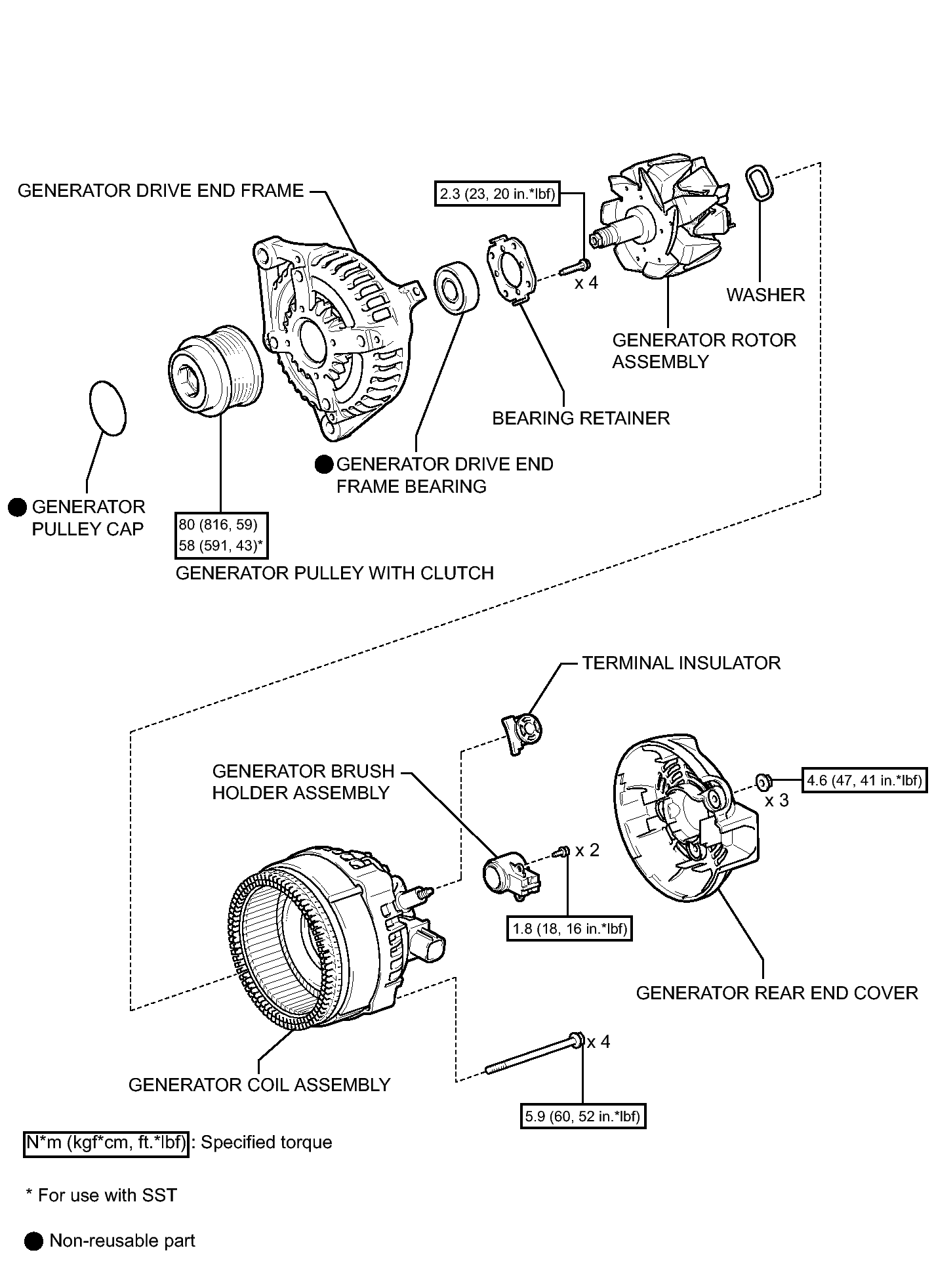

Fig 1: Identifying Generator Replacement Components With Torque Specifications (2 Of 2)
GTY194909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
