VACUUM SWITCHING VALVE (for ACIS): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

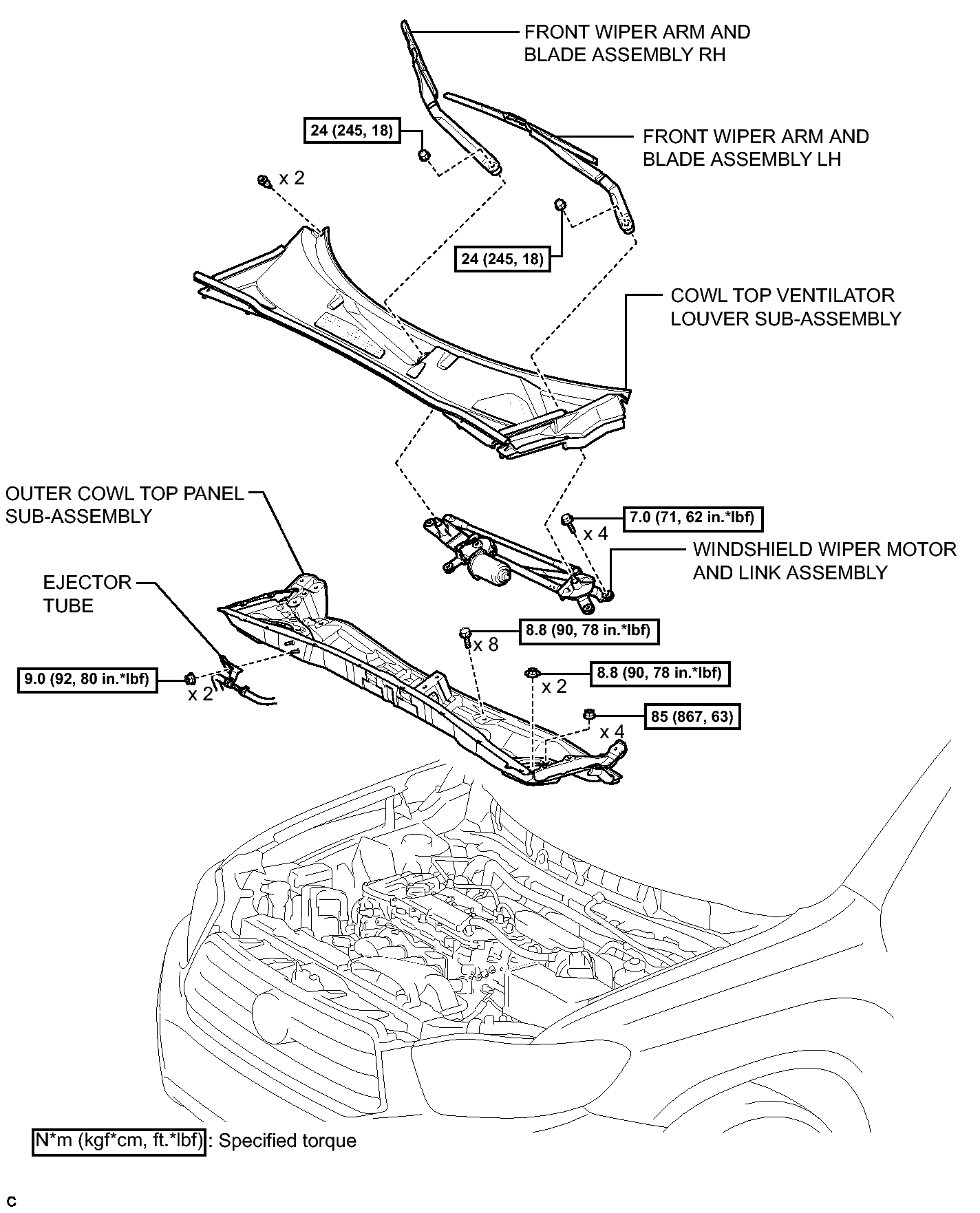

Fig 1: Identifying Vacuum Switching Valve (For ACIS) Replacement Components With Torque Specifications (1 Of 2)
GTY195220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

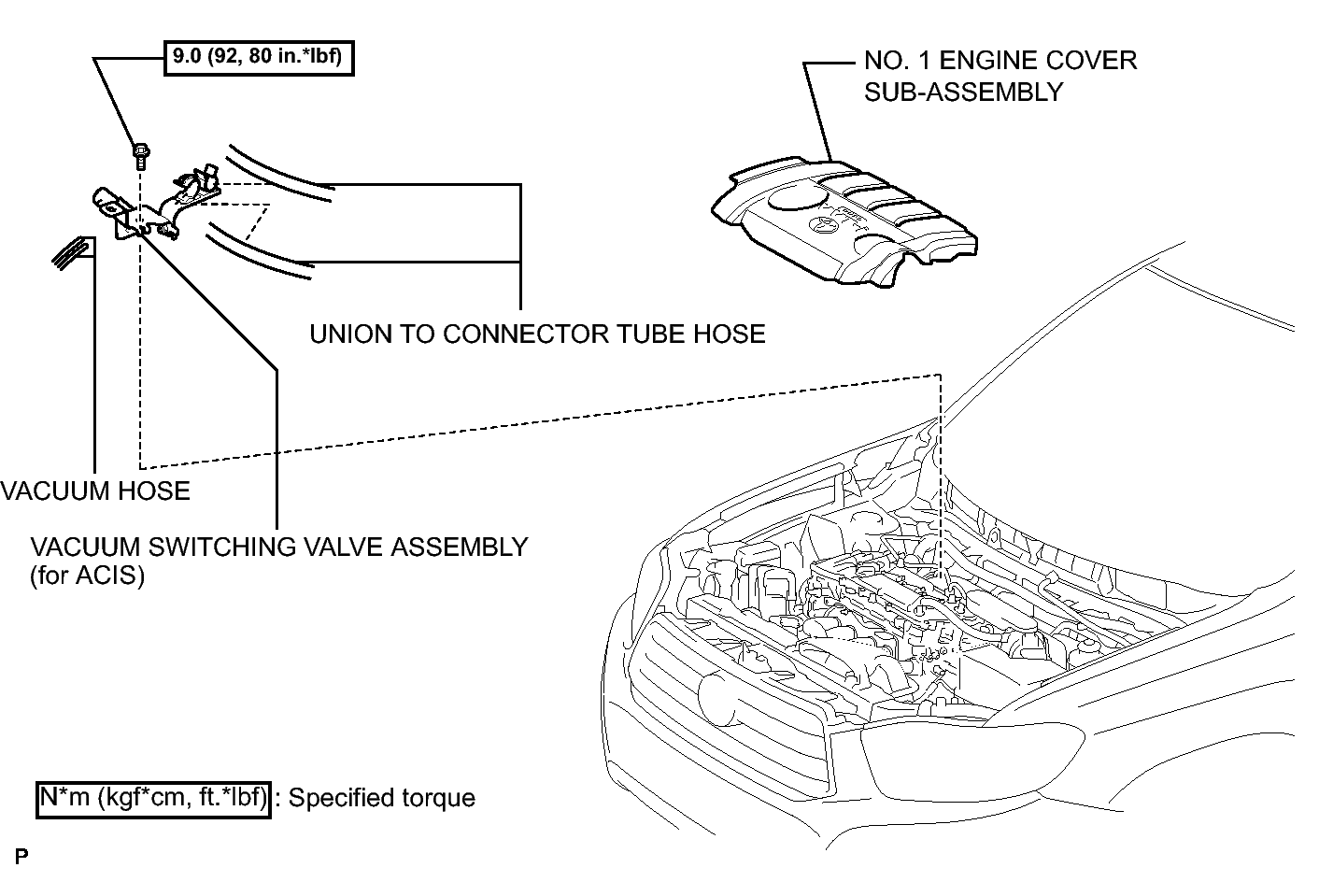

Fig 1: Identifying Vacuum Switching Valve (For ACIS) Replacement Components With Torque Specifications (2 Of 2)
GTY177890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
