Intake Manifold: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

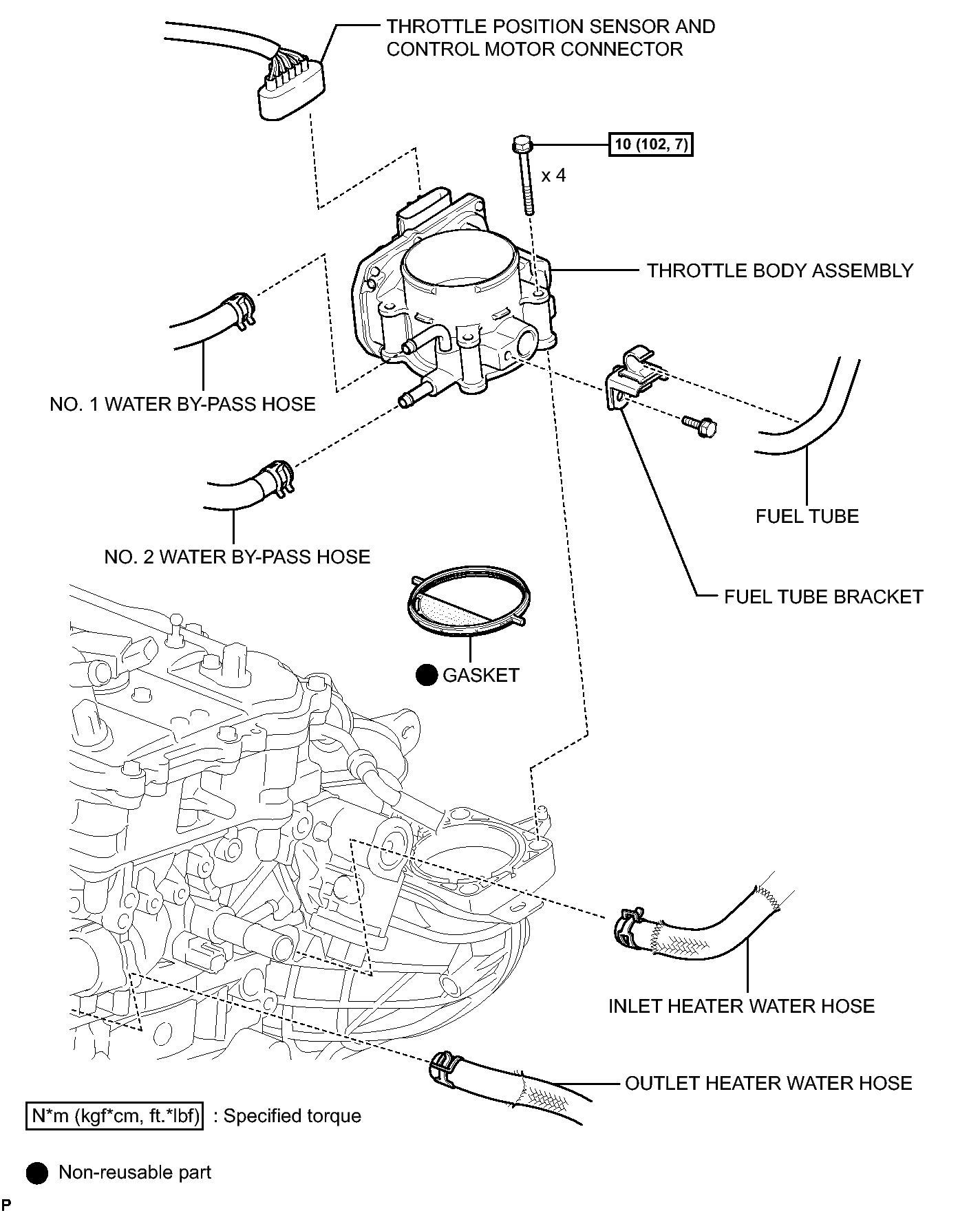

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (1 Of 3)
GTY195349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

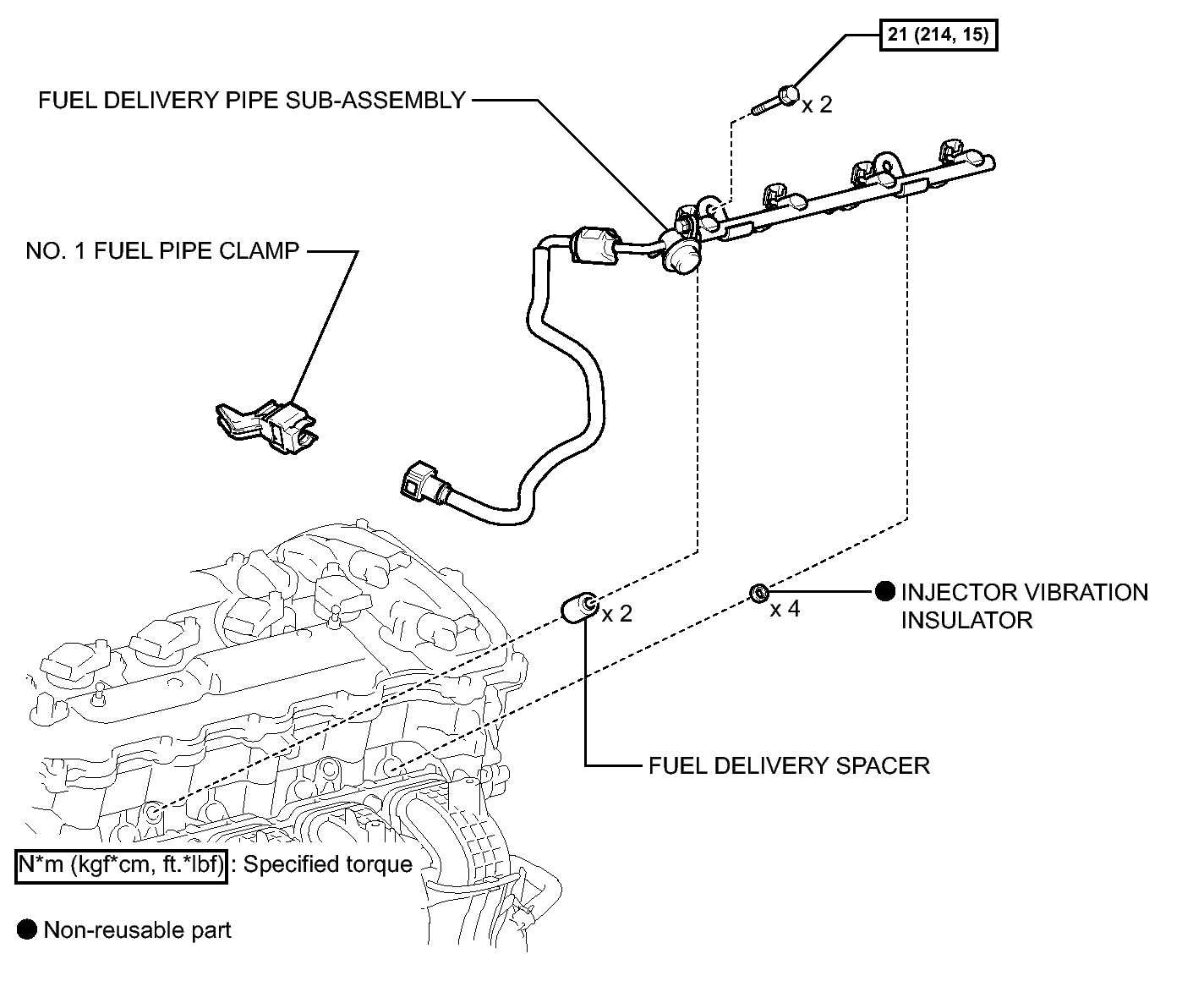

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (2 Of 3)
GTY332527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

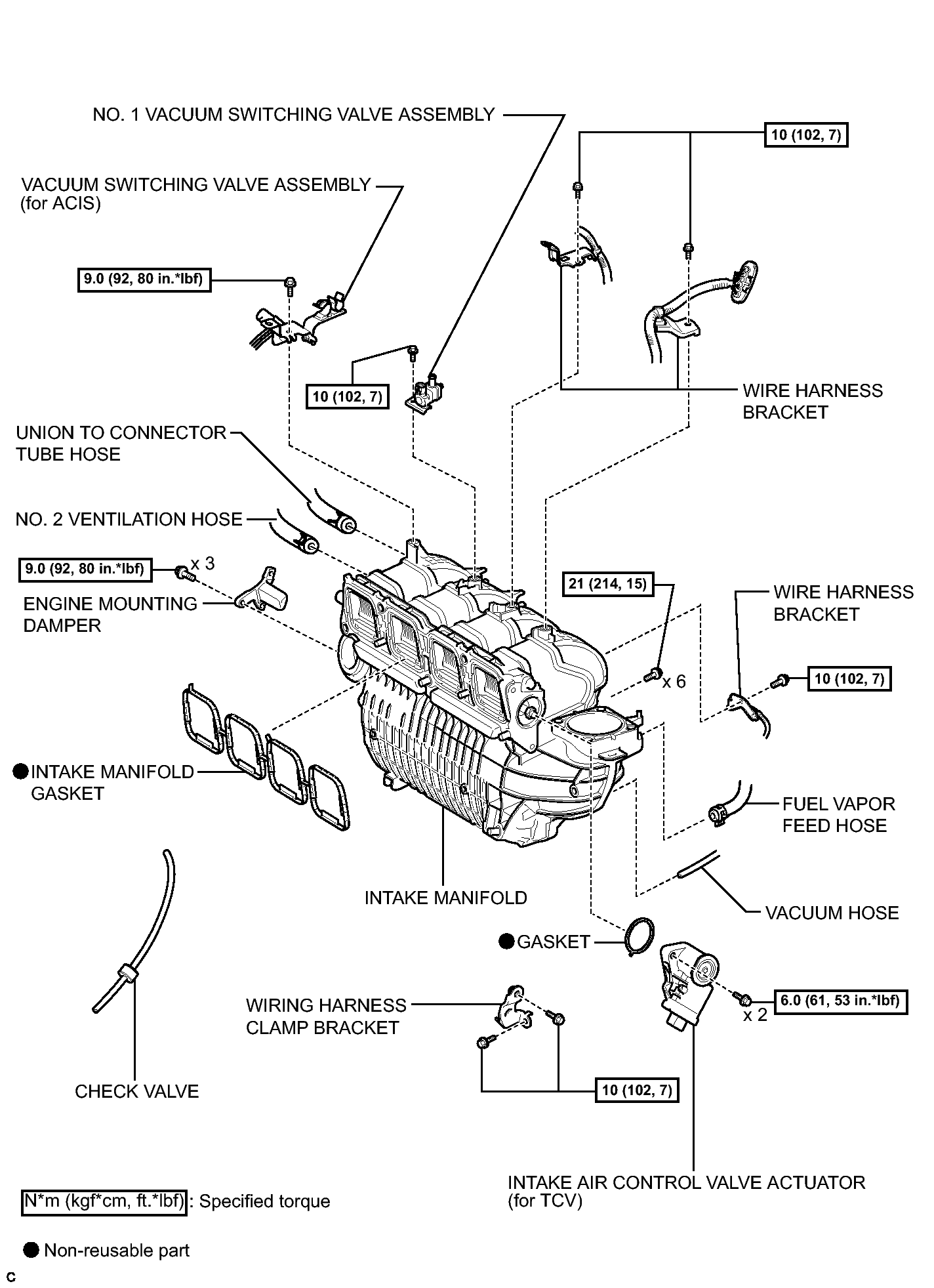

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (3 Of 3)
GTY195273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
