INTAKE AIR CONTROL VALVE ACTUATOR (for TCV): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

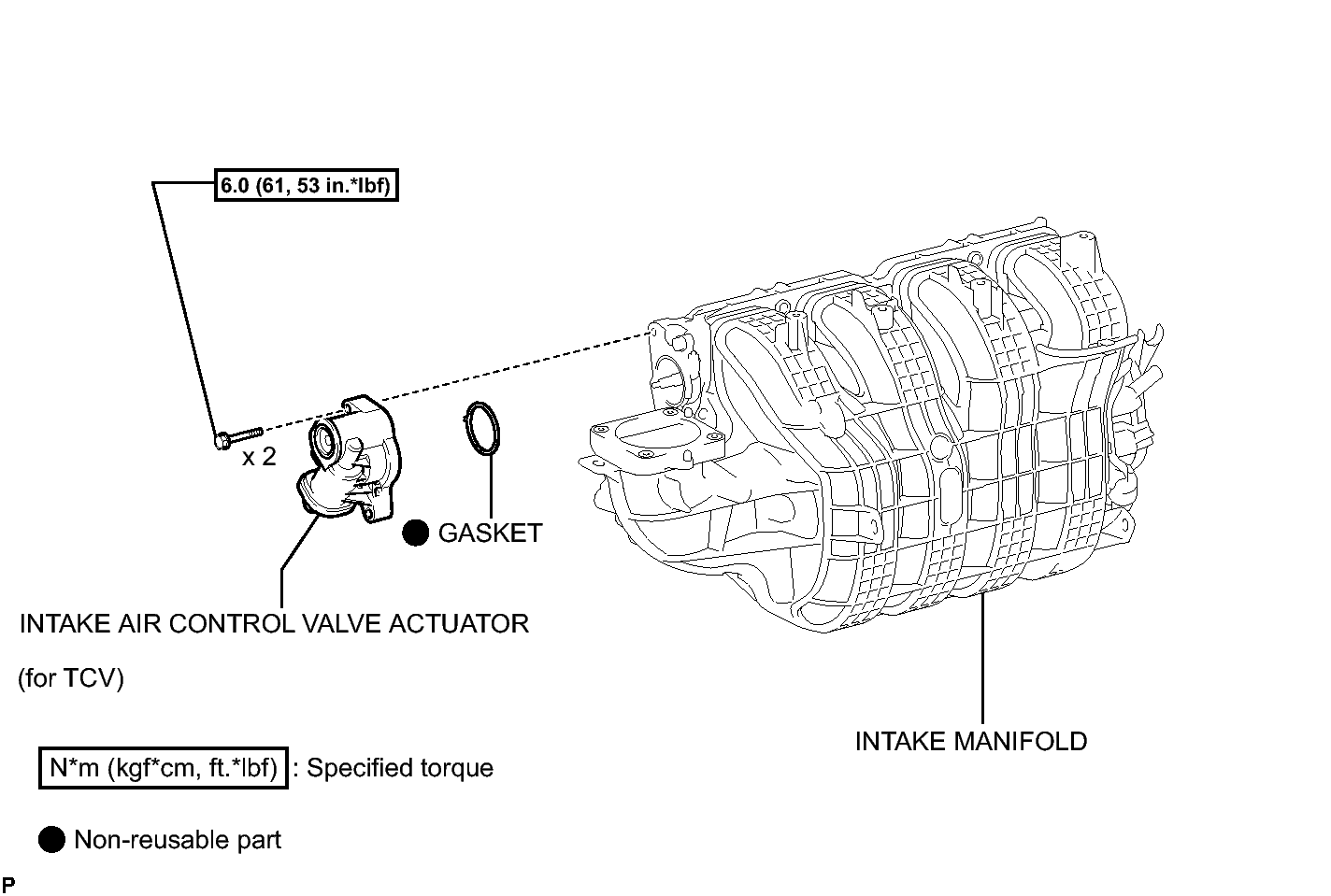

Fig 1: Identifying Intake Air Control Valve Actuator (For TCV) Replacement Components With Torque Specifications
GTY195327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
