Section 20 (Fuel System (1AR-FE) (Service Information) (Except Hybrid))
>>
Fuel Tank
>>
Components
>>
Illustration
Fuel Tank: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

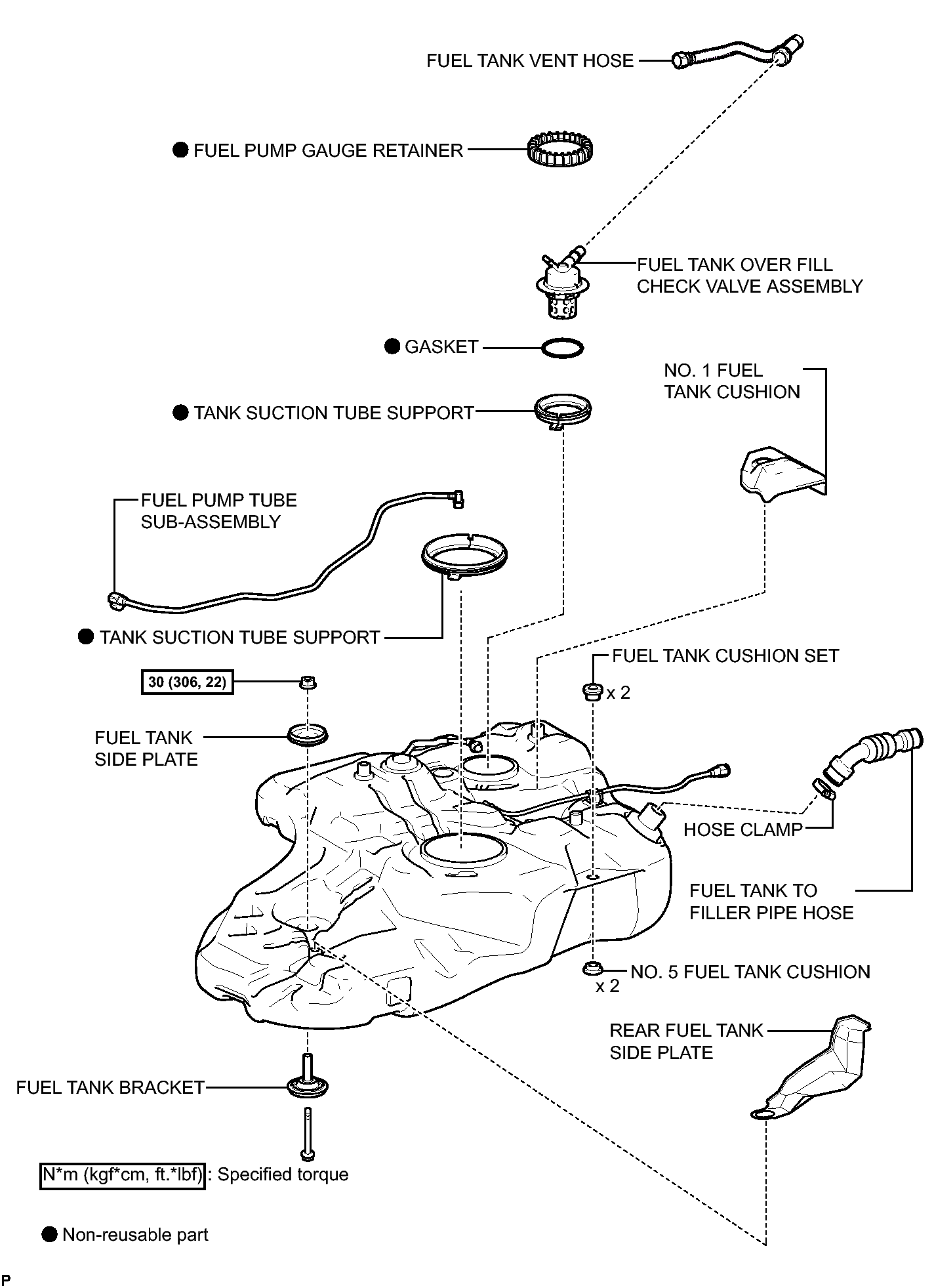

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specification (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

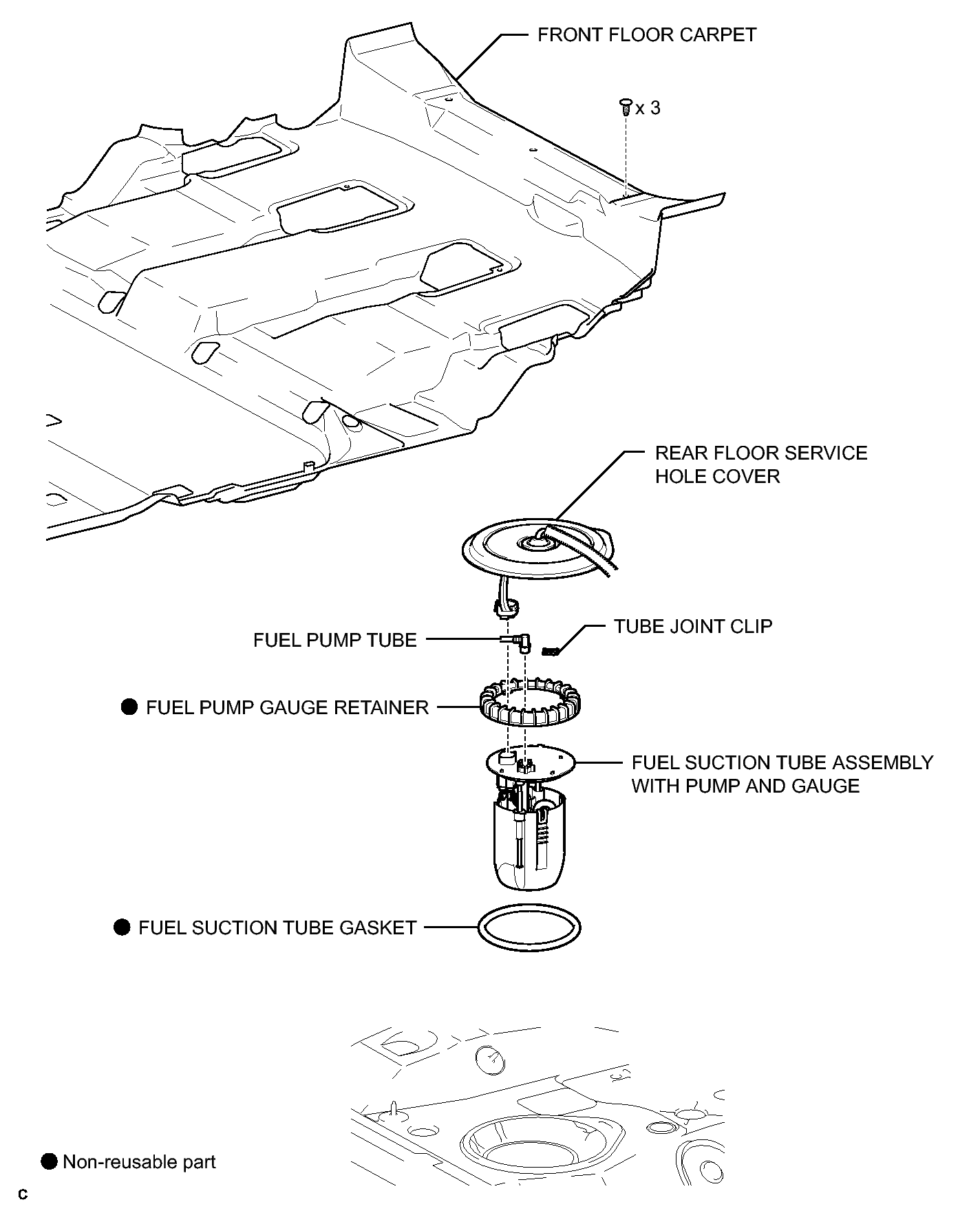

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specification (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

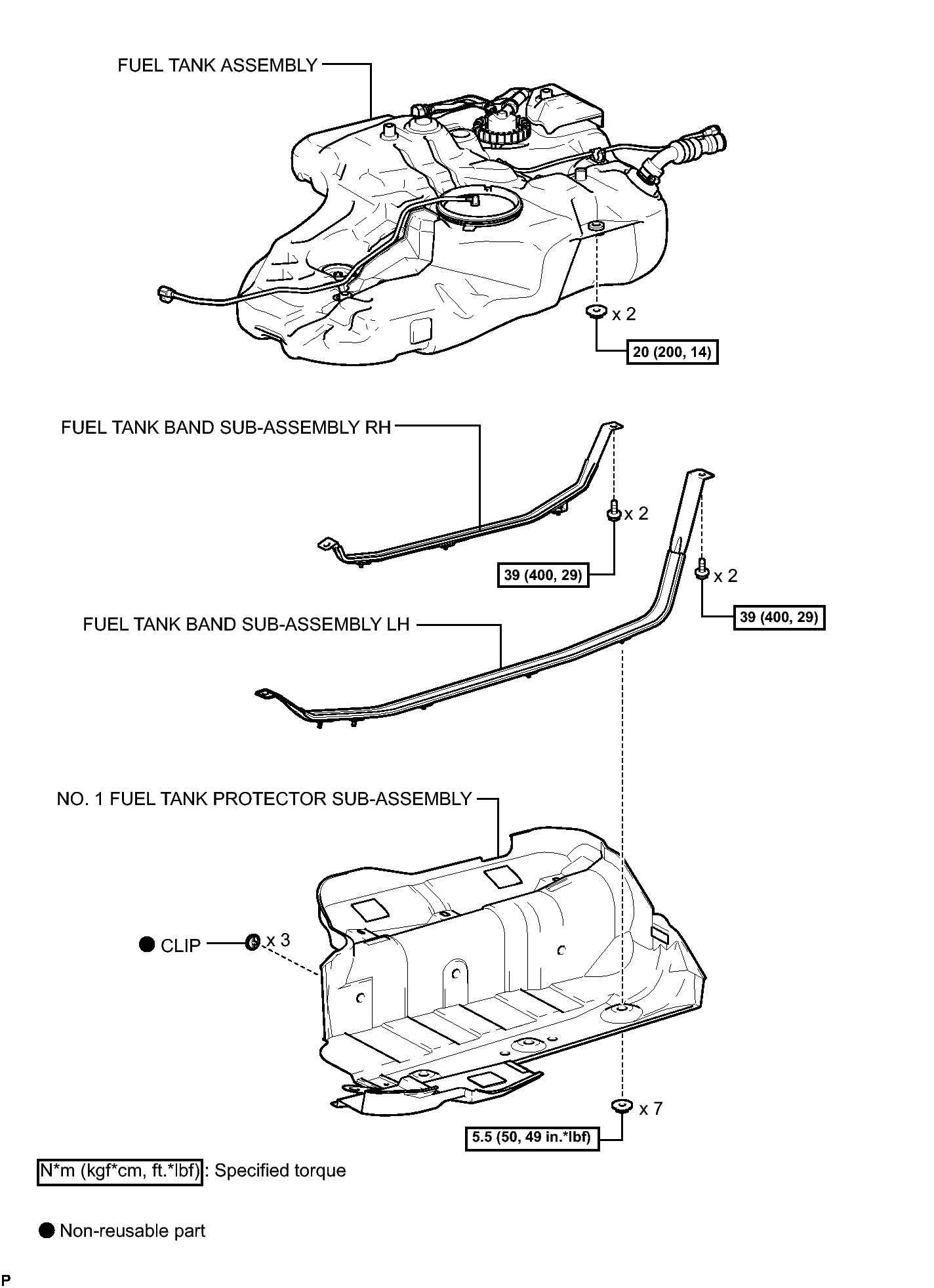

Fig 1: Identifying Fuel Tank Replacement Components And Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Fuel Tank Replacement Components Replacement With Torque Specification (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
