Fuel Injector: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Fuel Injector Replacement Components With Torque Specification (1 Of 2)
GTY195332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

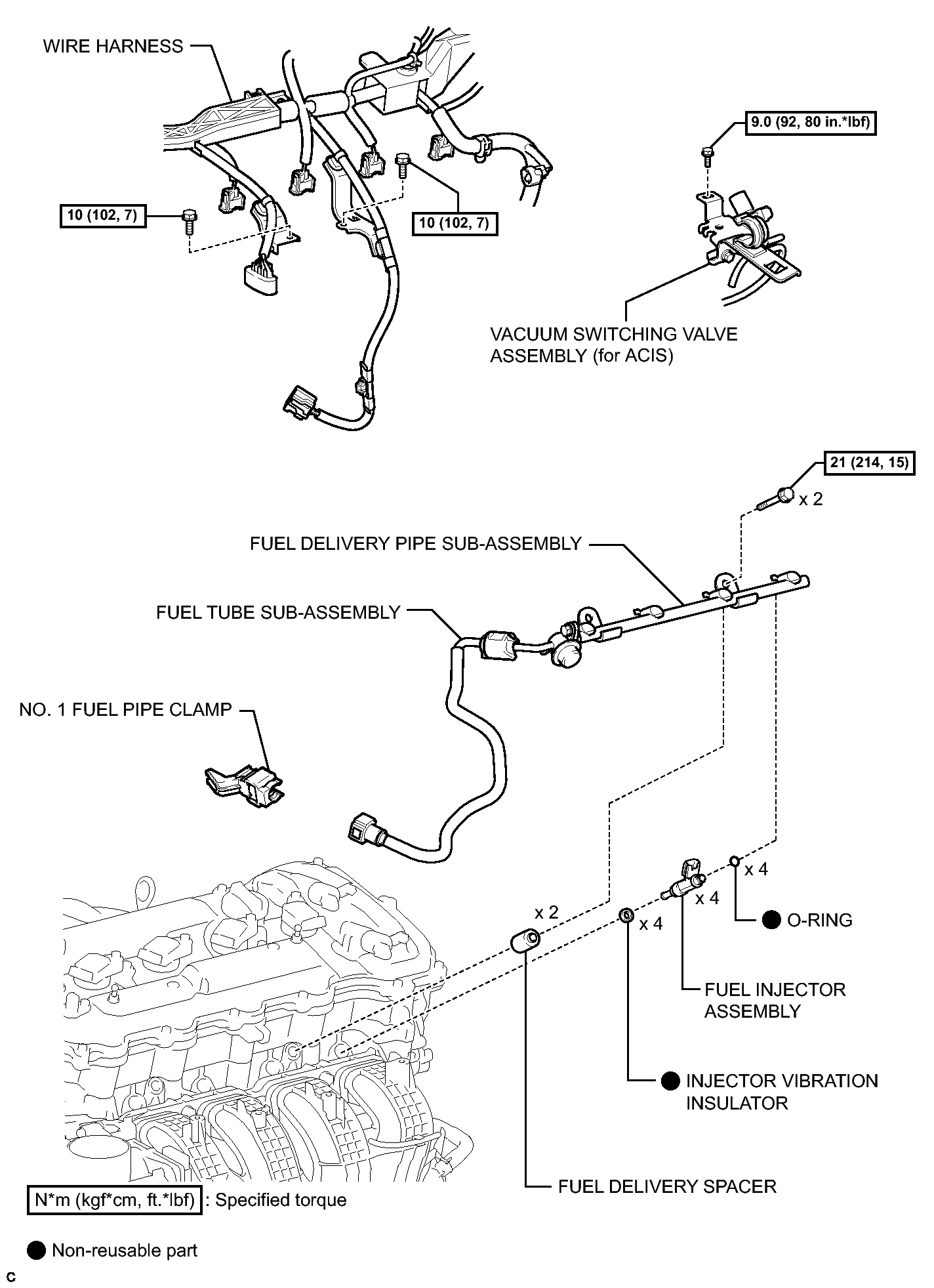

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specification (2 Of 2)
GTY331526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
