Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

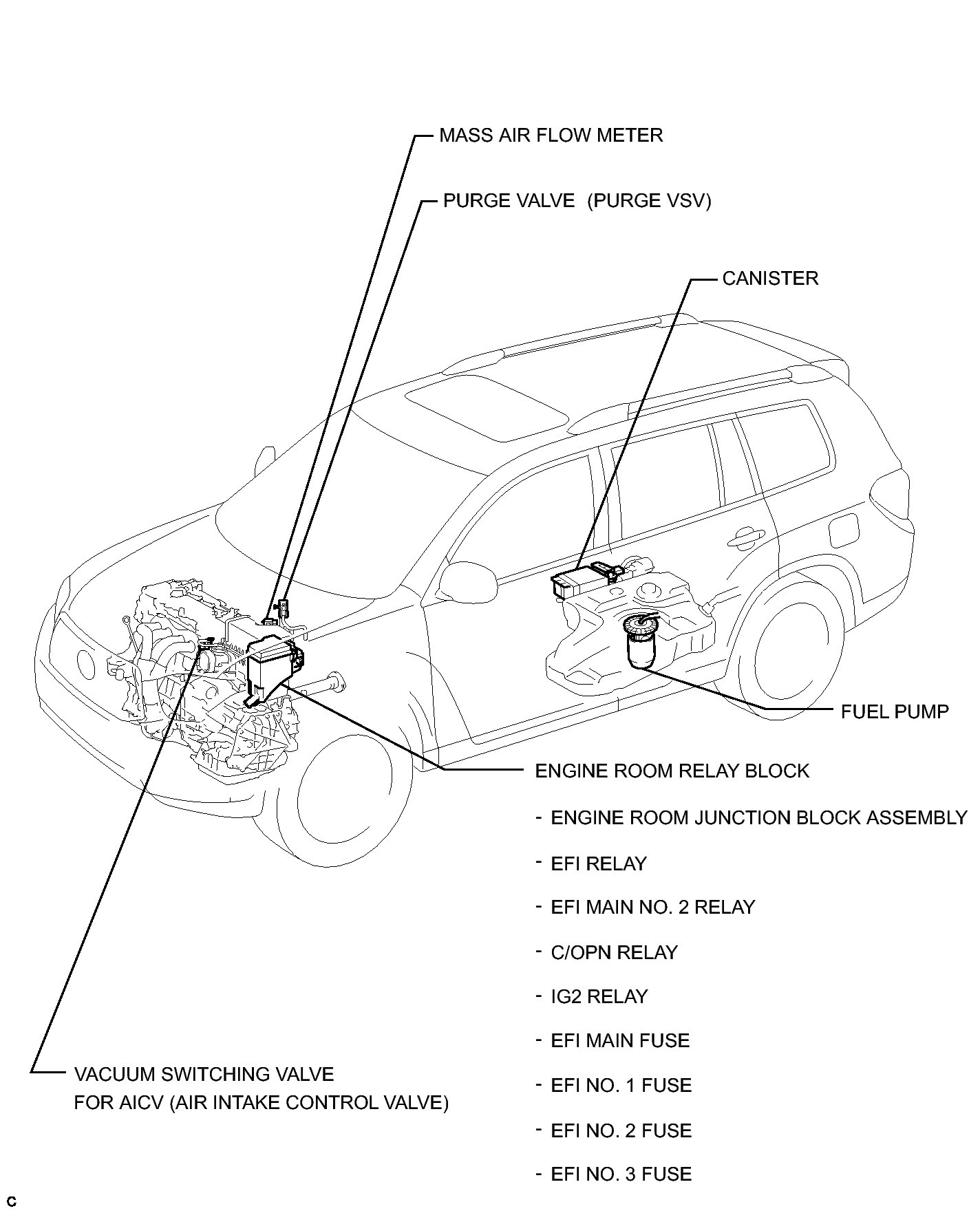

Fig 1: SFI System Components Location (1 Of 4)
GTY195245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

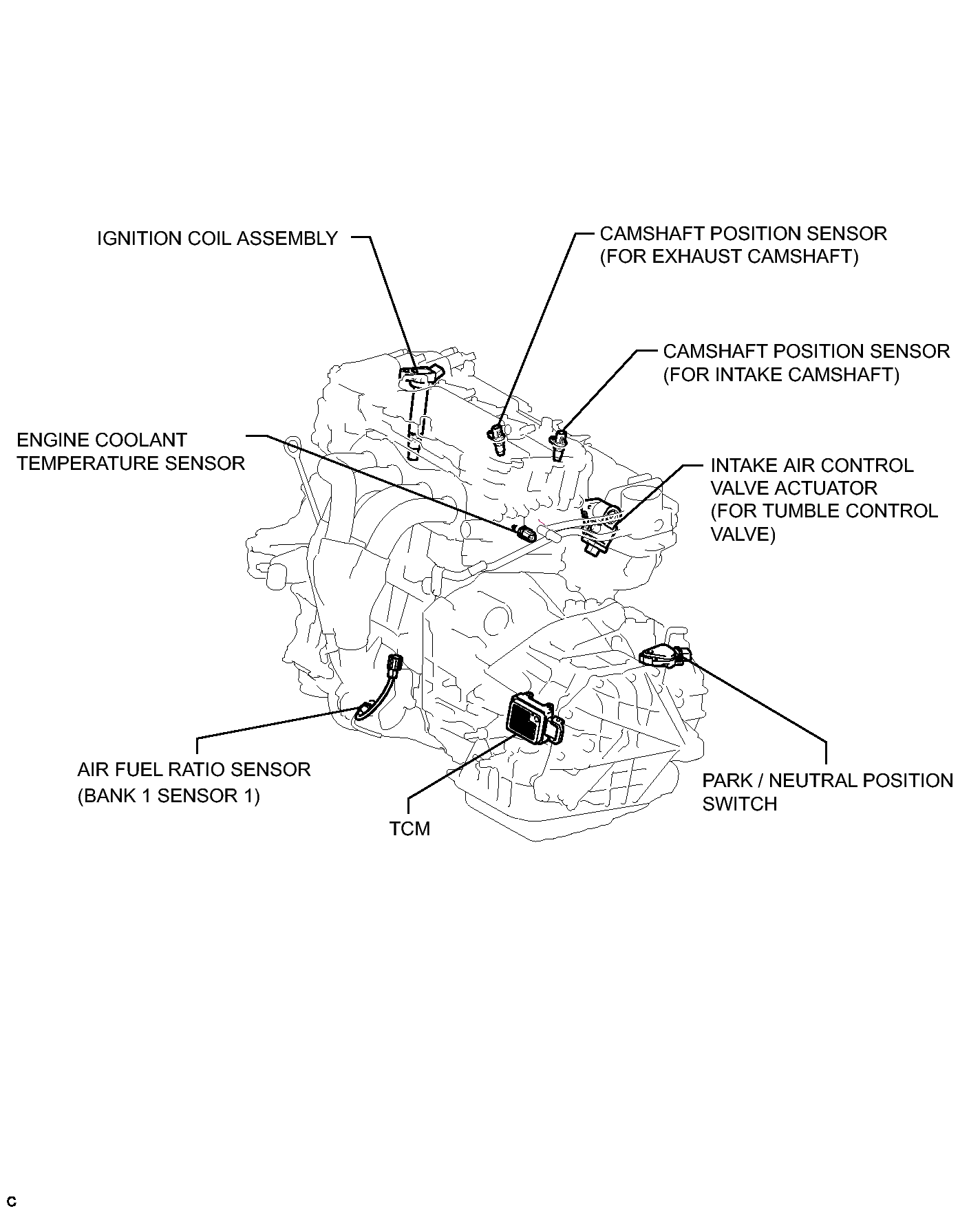

Fig 1: SFI System Components Location (2 Of 4)
GTY301723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

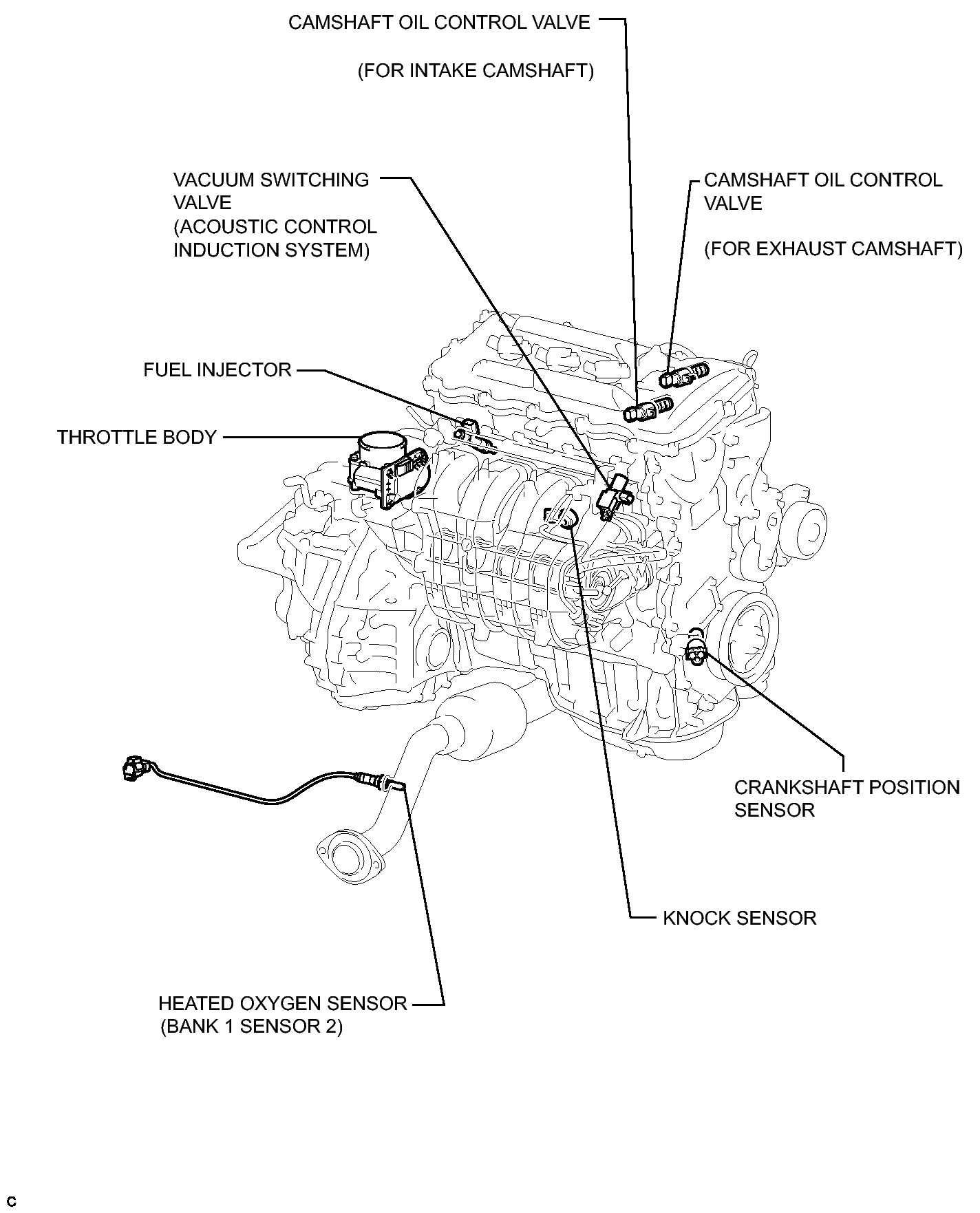

Fig 1: SFI System Components Location (3 Of 4)
GTY195247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

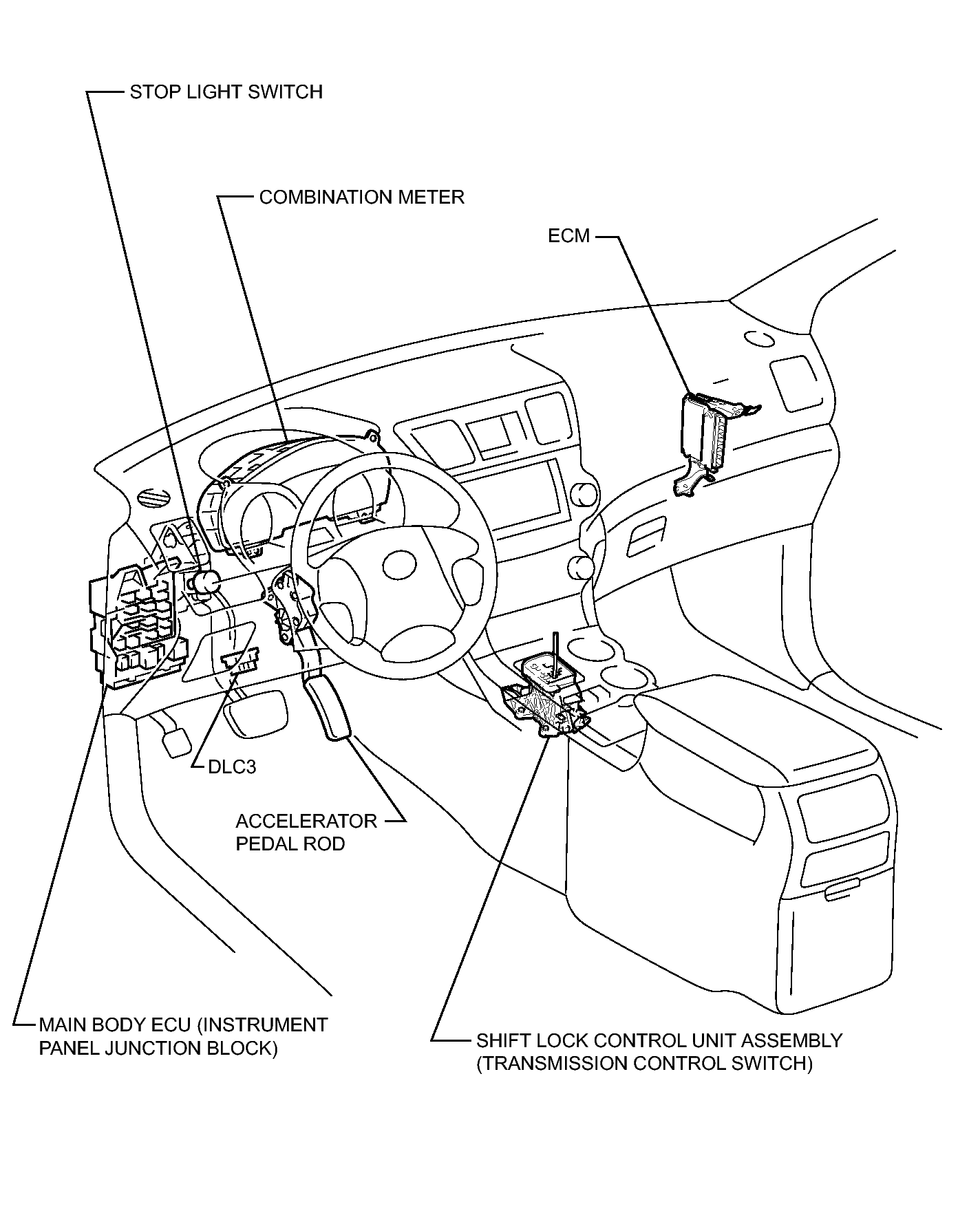

Fig 1: SFI System Components Location (4 Of 4)
GTY301013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
