Section 190 (OEM Junction Block, Ecu & Fuse/Relay Locations (Hybrid))
>>
Relay Block, Junction Block & Ecu Locations
>>
Instrument Panel
Instrument Panel
WARNING:
This page is about a different variant/trim than selected.

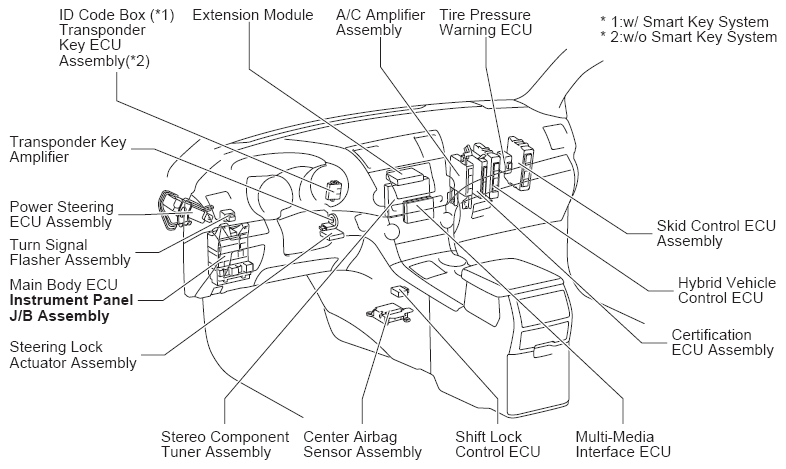

Fig 1: Instrument Panel Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
