Relay Block, Junction Block & Ecu Locations: Body

WARNING: This page is about a different variant/trim than selected.

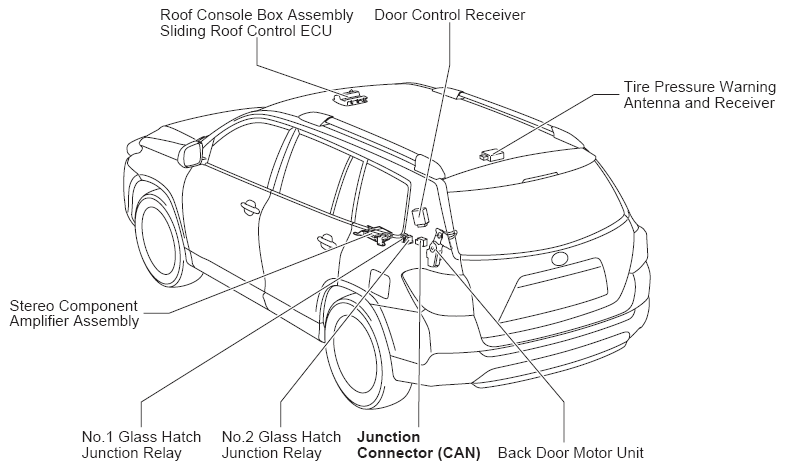

Fig 1: Body ECU, Relay & Components Location
G09097509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Body Relay Identification

RELAY DESCRIPTION
No. 2 Glass Hatch Junction Relay
No. 1 Glass Hatch Junction Relay

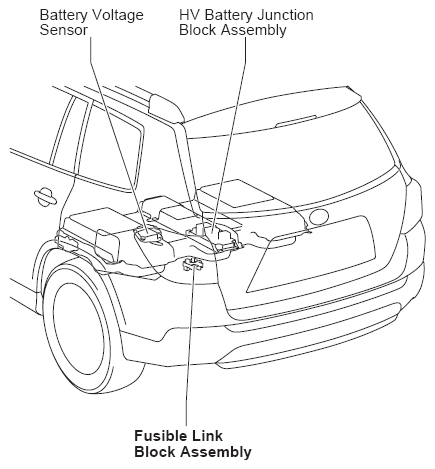

Fig 2: Body ECU Components Location
G09097510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
