Section 190 (OEM Junction Block, Ecu & Fuse/Relay Locations (Hybrid))
>>
Junction Block Fuse, Relay & Circuit Identification
>>
Instrument Panel Junction Block Assembly Inner Circuit
Instrument Panel Junction Block Assembly Inner Circuit
WARNING:
This page is about a different variant/trim than selected.

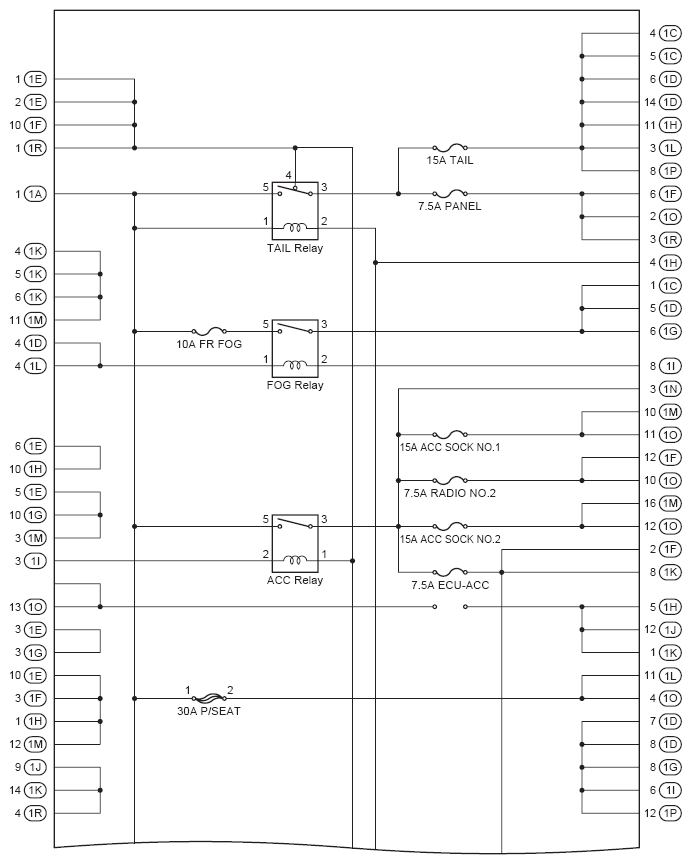

Fig 1: Instrument Panel J/B Assembly Inner Circuit Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

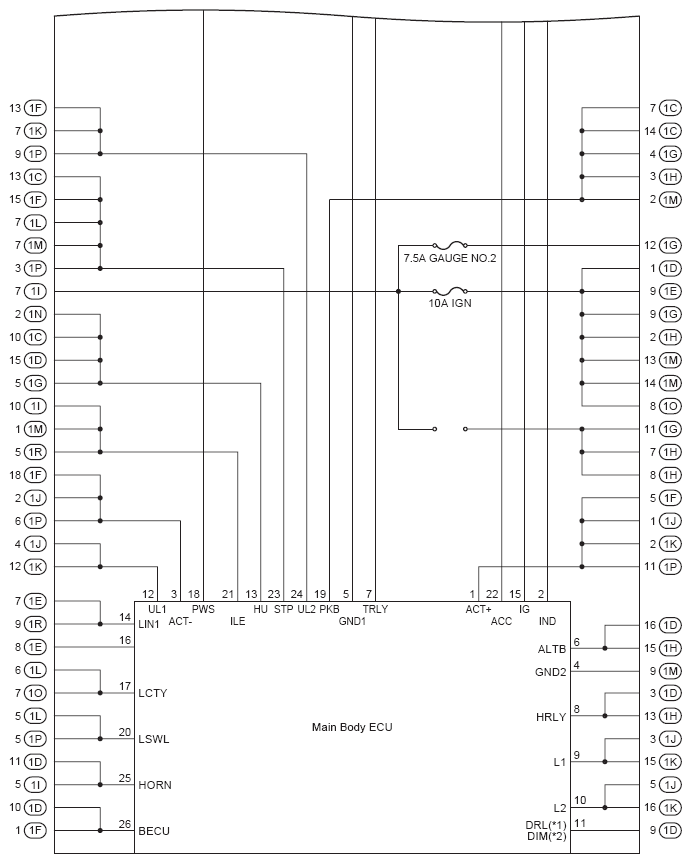

Fig 2: Instrument Panel J/B Assembly Inner Circuit Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

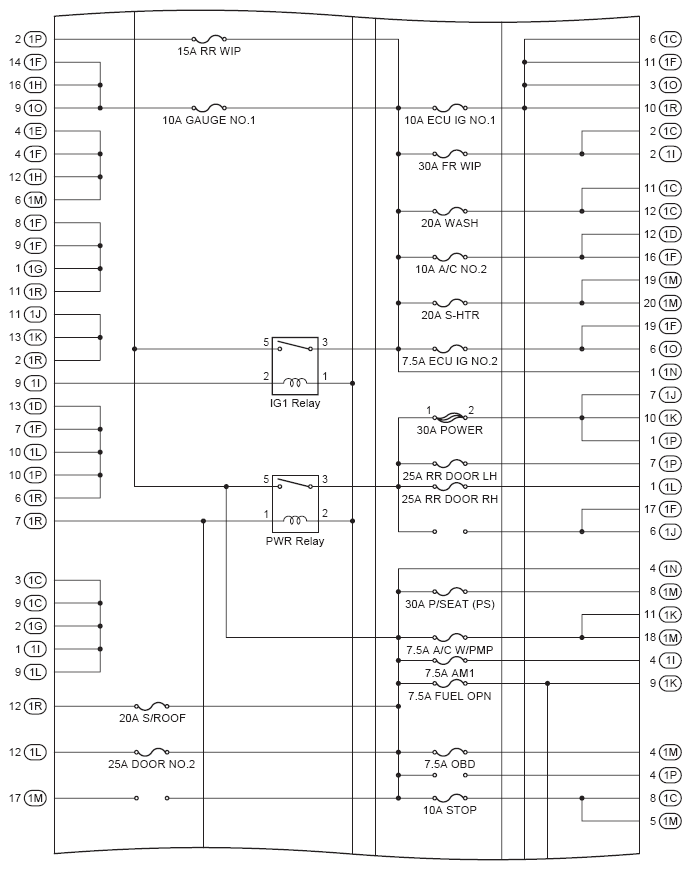

Fig 3: Instrument Panel J/B Assembly Inner Circuit Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
