Crankshaft Position Sensor: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

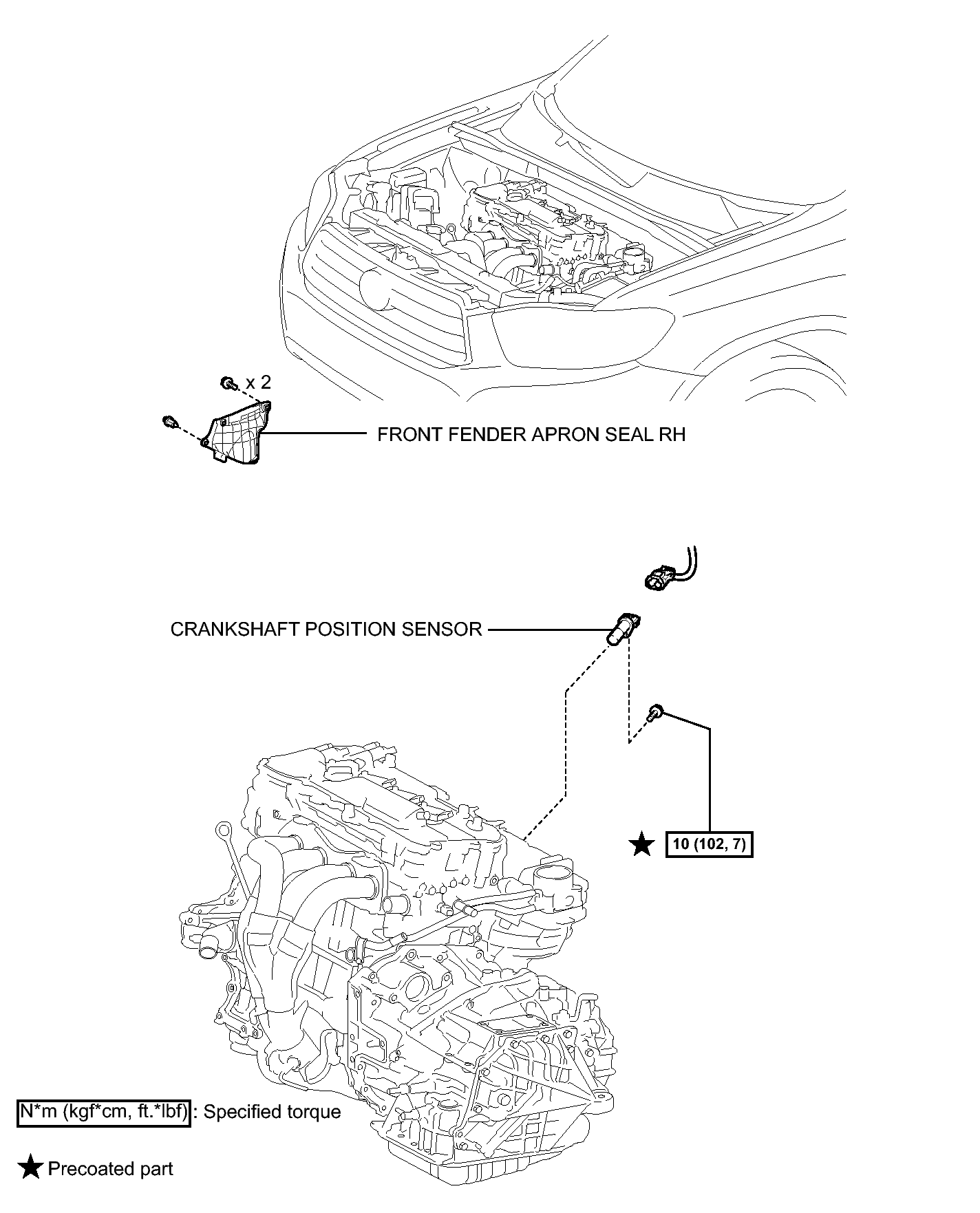

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY195342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
