Ground Point: Notes

WARNING: This page is about a different variant/trim than selected.

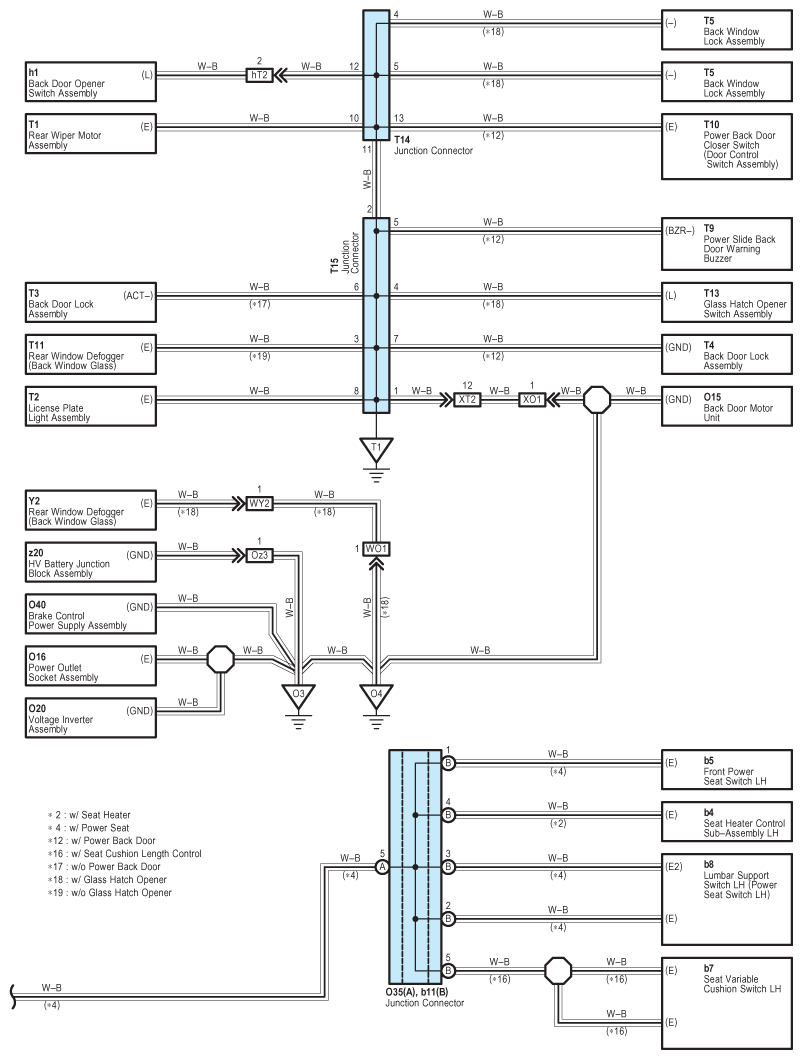

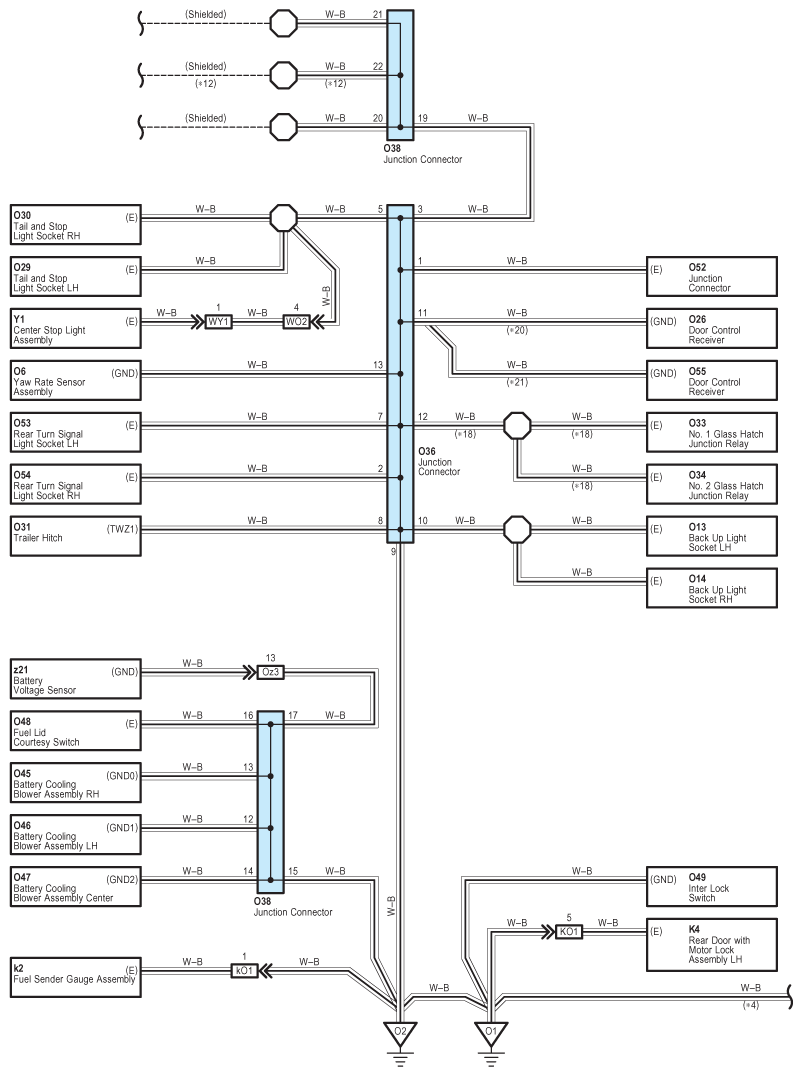

Fig 1: Ground Point System Wiring Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

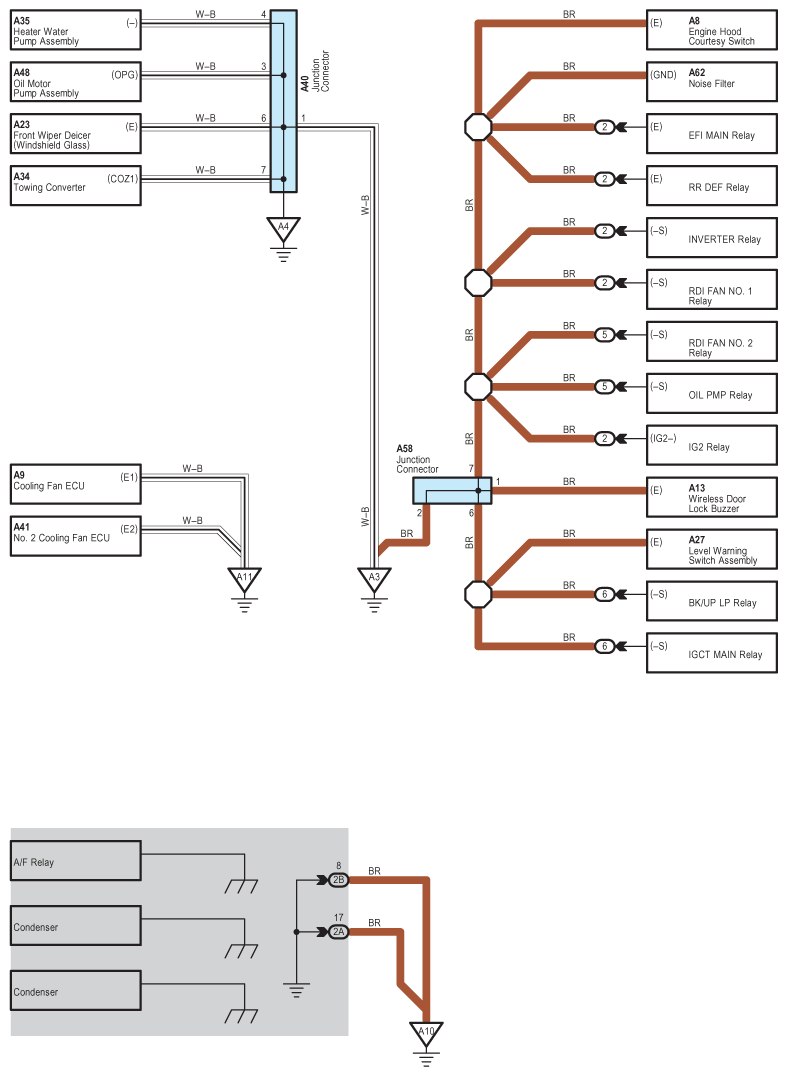

Fig 2: Ground Point System Wiring Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

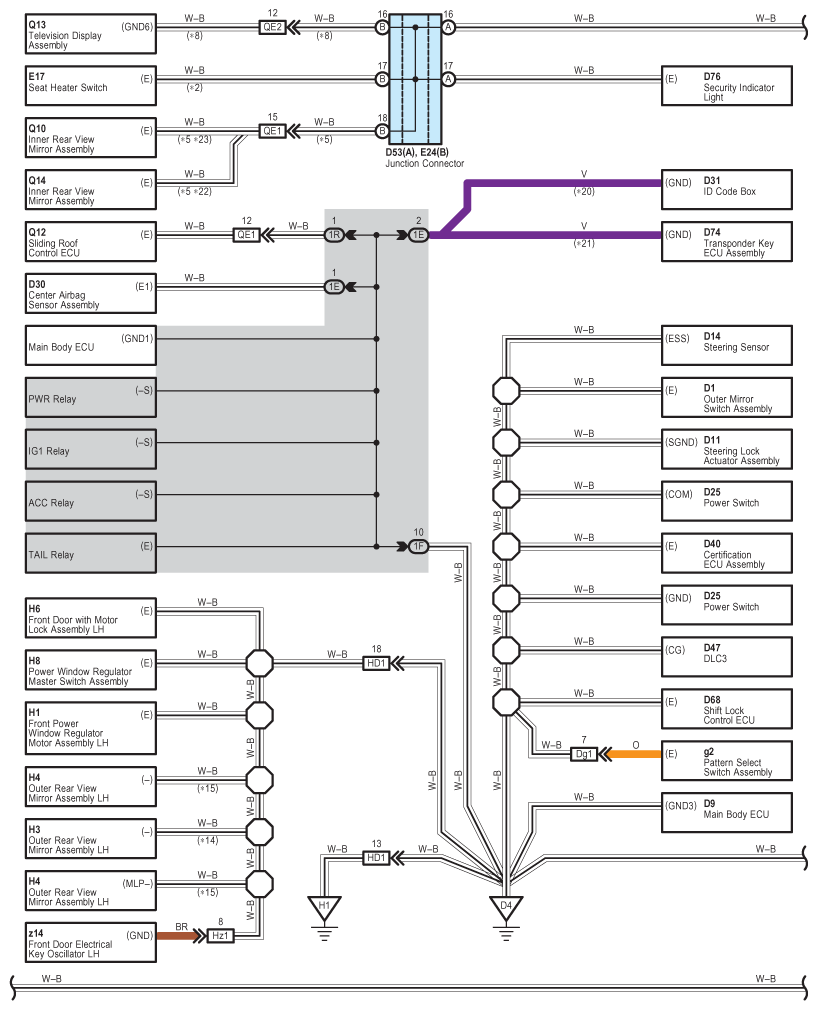

Fig 3: Ground Point System Wiring Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

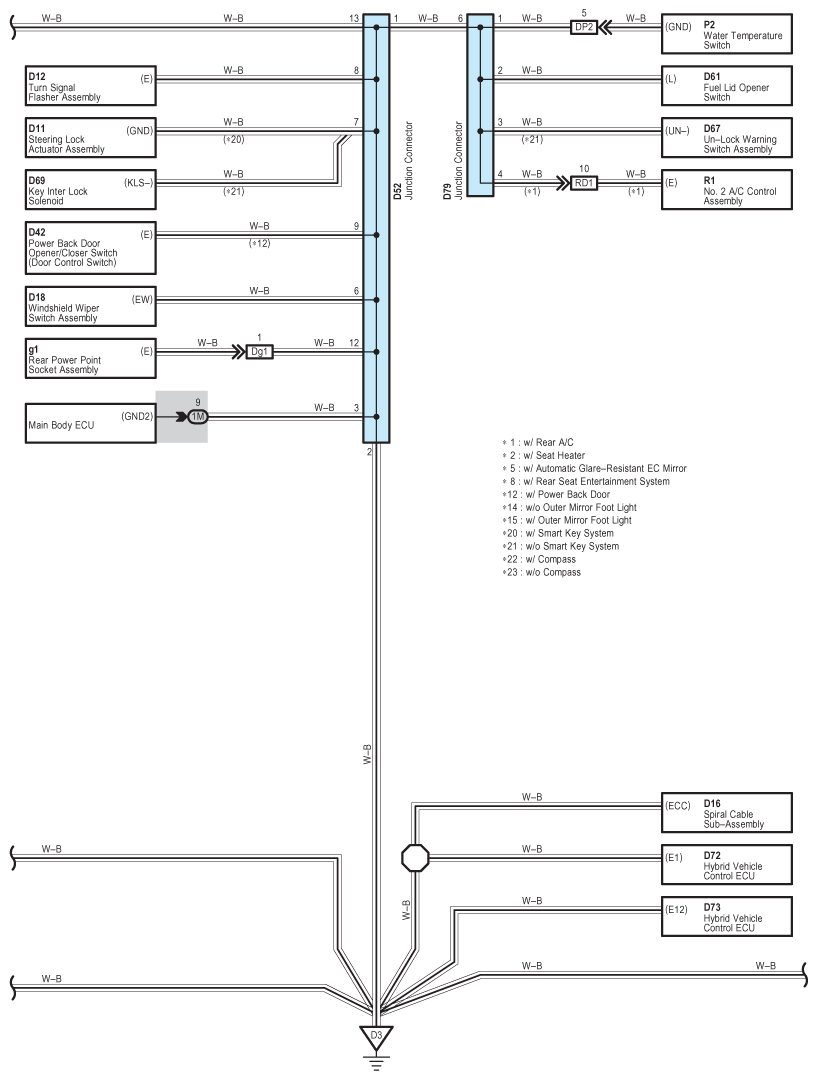

Fig 4: Ground Point System Wiring Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

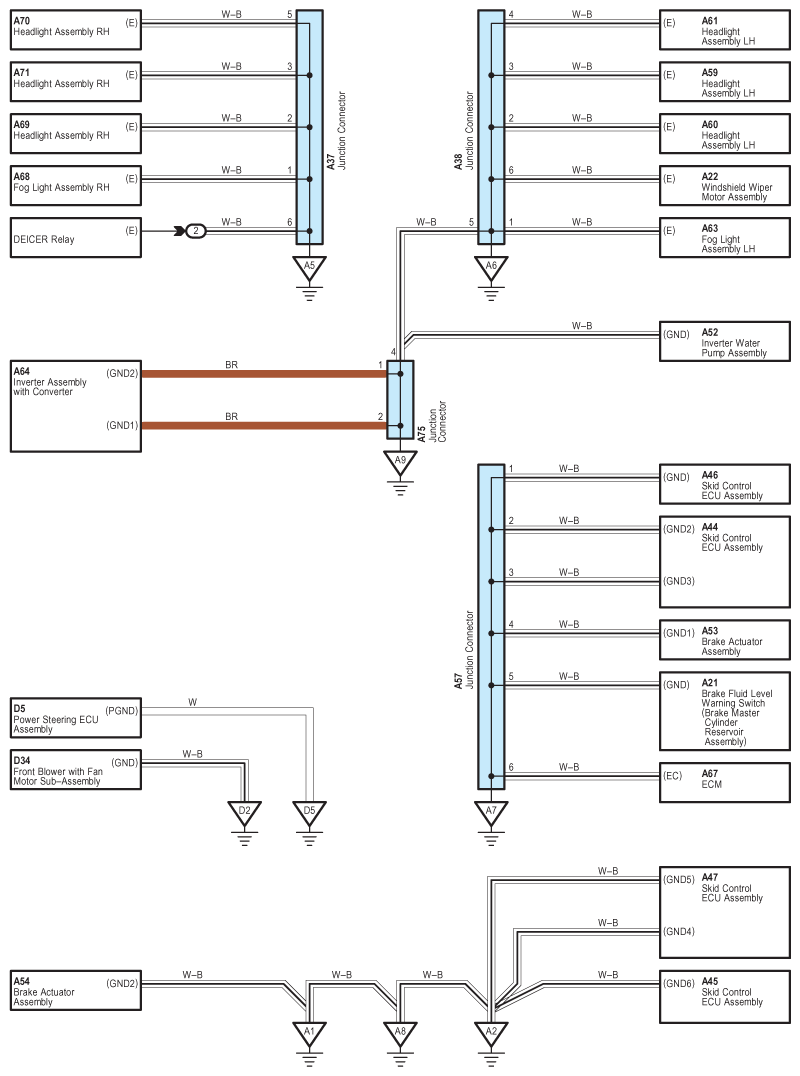

Fig 5: Ground Point System Wiring Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

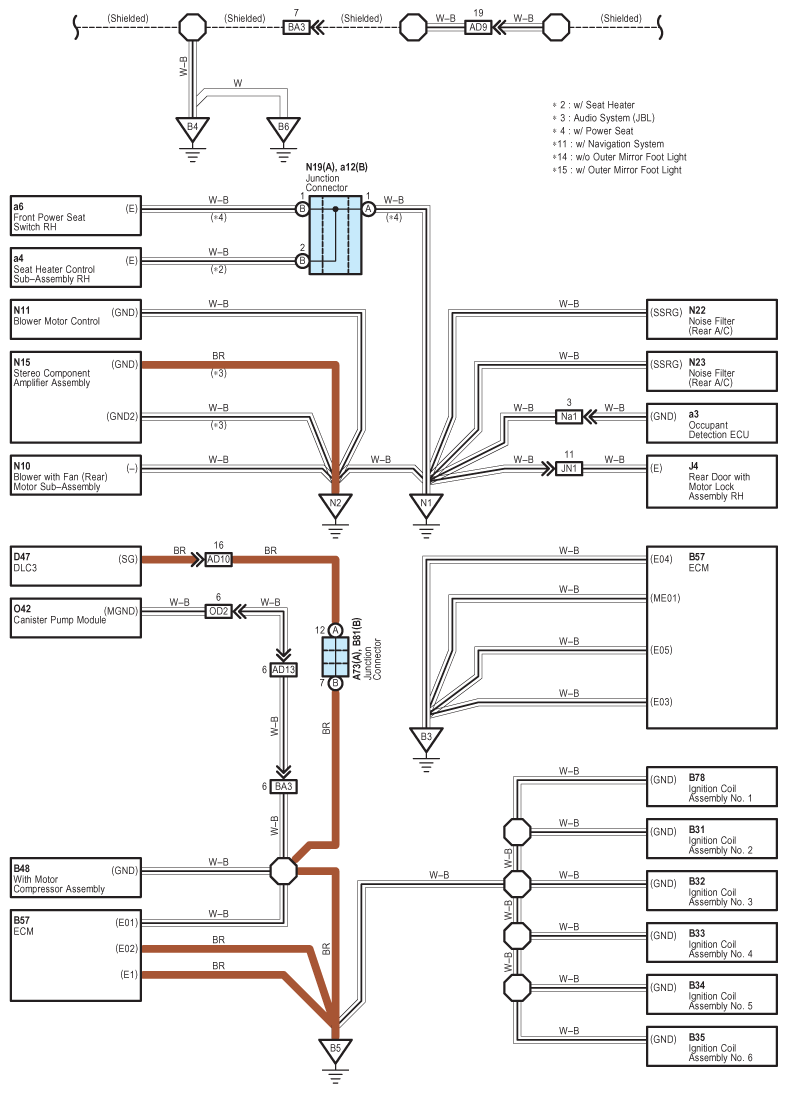

Fig 6: Ground Point System Wiring Diagram (6 Of 9)

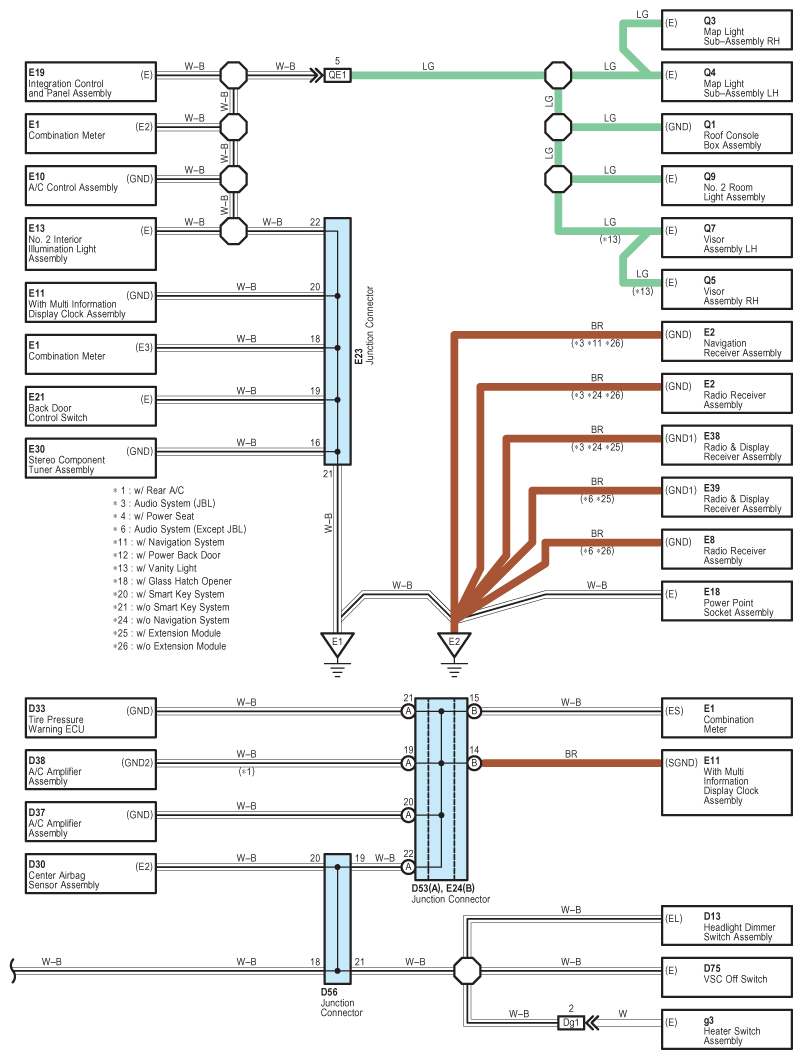

Fig 7: Ground Point System Wiring Diagram (7 Of 9)

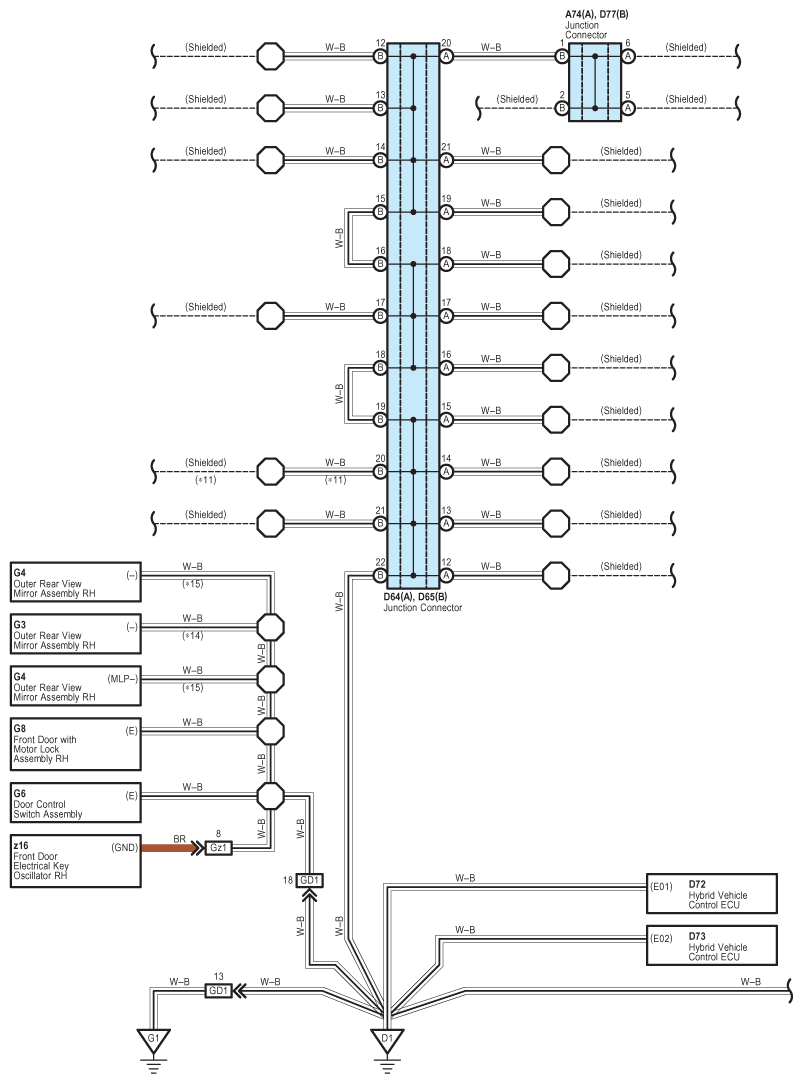

Fig 8: Ground Point System Wiring Diagram (8 Of 9)

Fig 9: Ground Point System Wiring Diagram (9 Of 9)
