Front Crankshaft Oil Seal: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

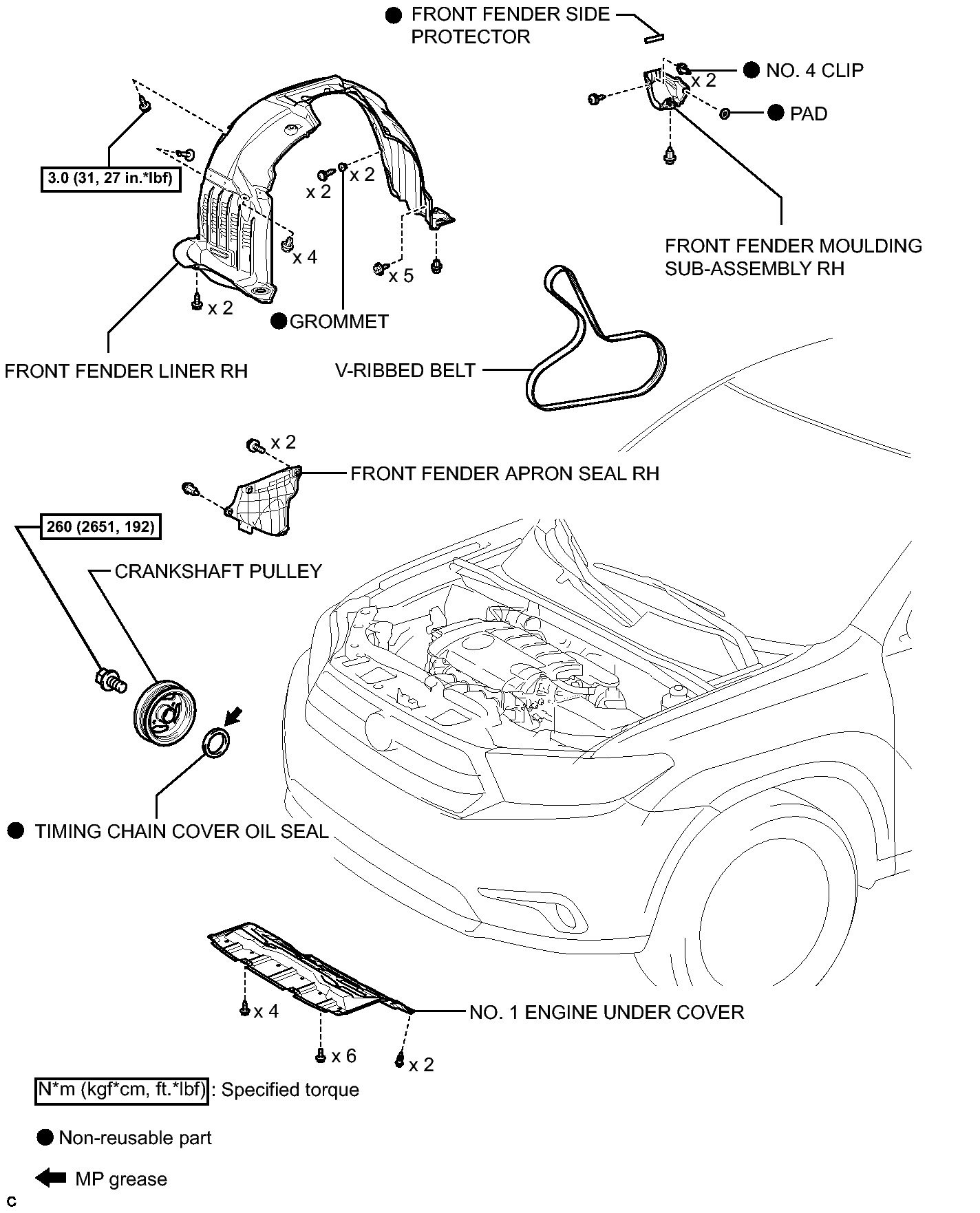

Fig 1: Identifying Front Crankshaft Oil Seal Replacement Components With Torque Specifications
GTY299324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
