Cylinder Head: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

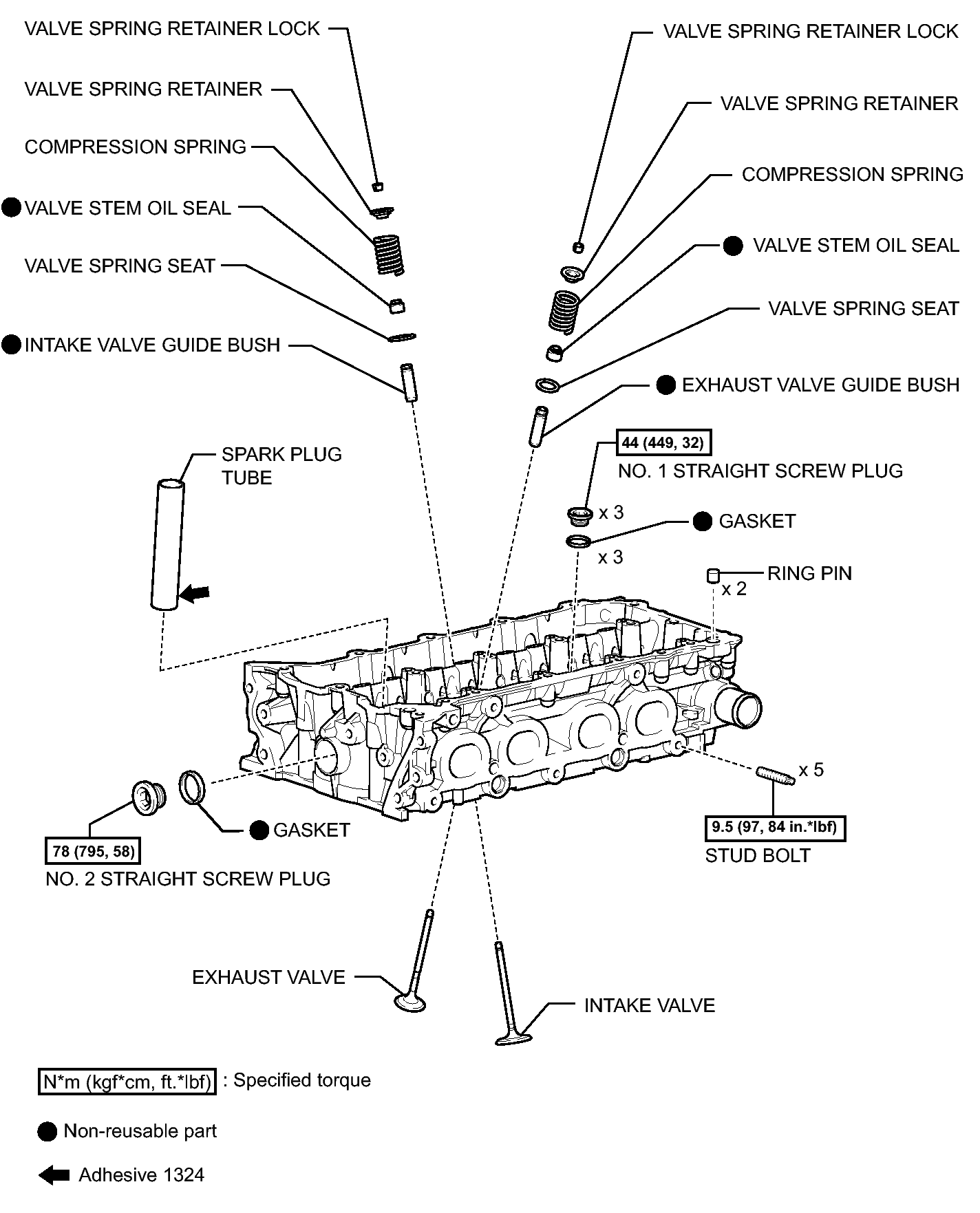

Fig 1: Exploded View of Cylinder Head With Torque Specification
GTY195362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
