Section 10 (Engine Mechanical (1AR-FE) (Service Information) (Except Hybrid)): Camshaft: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

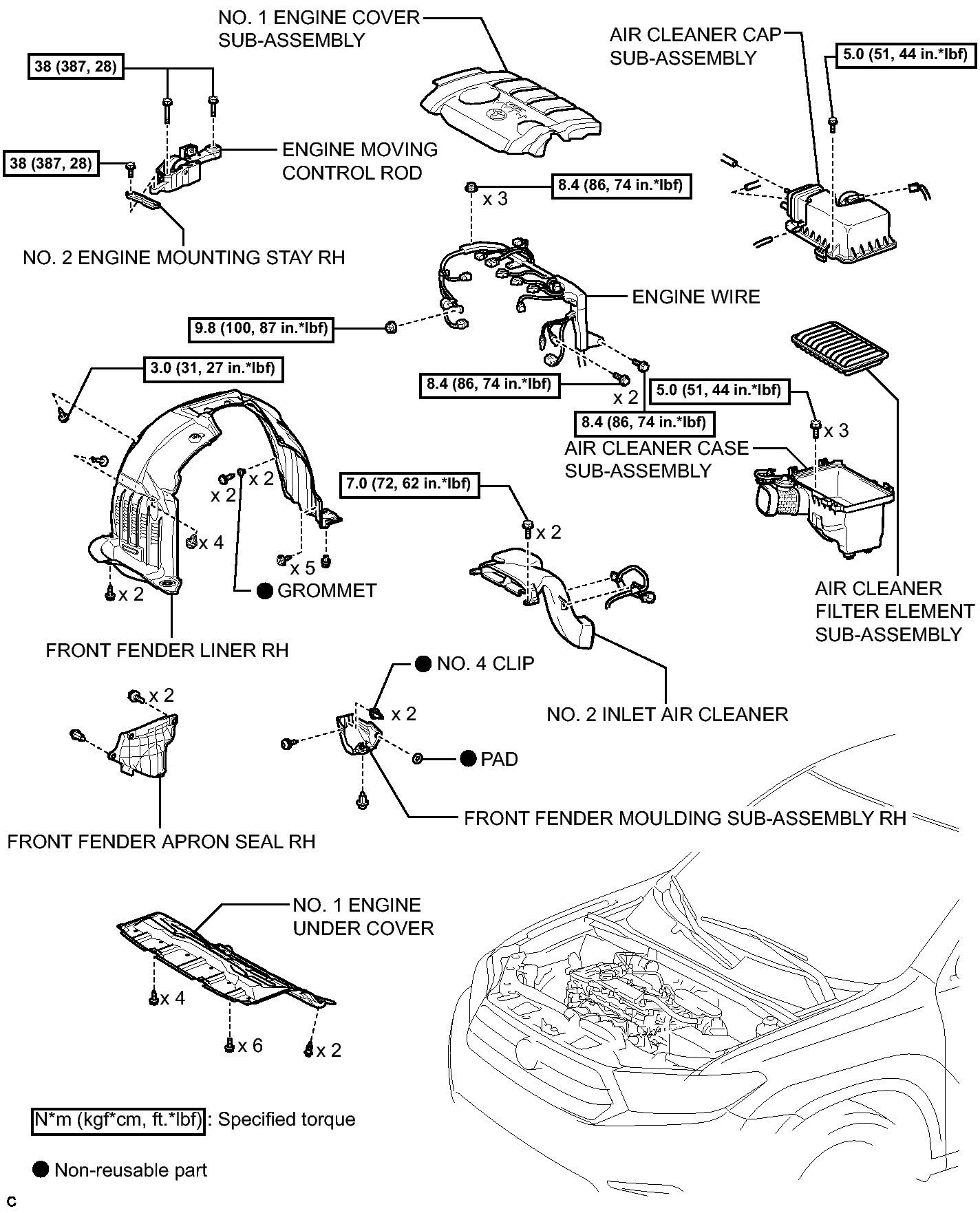

Fig 1: Identifying Camshaft Replacement Components With Torque Specifications (1 Of 2)
GTY298821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

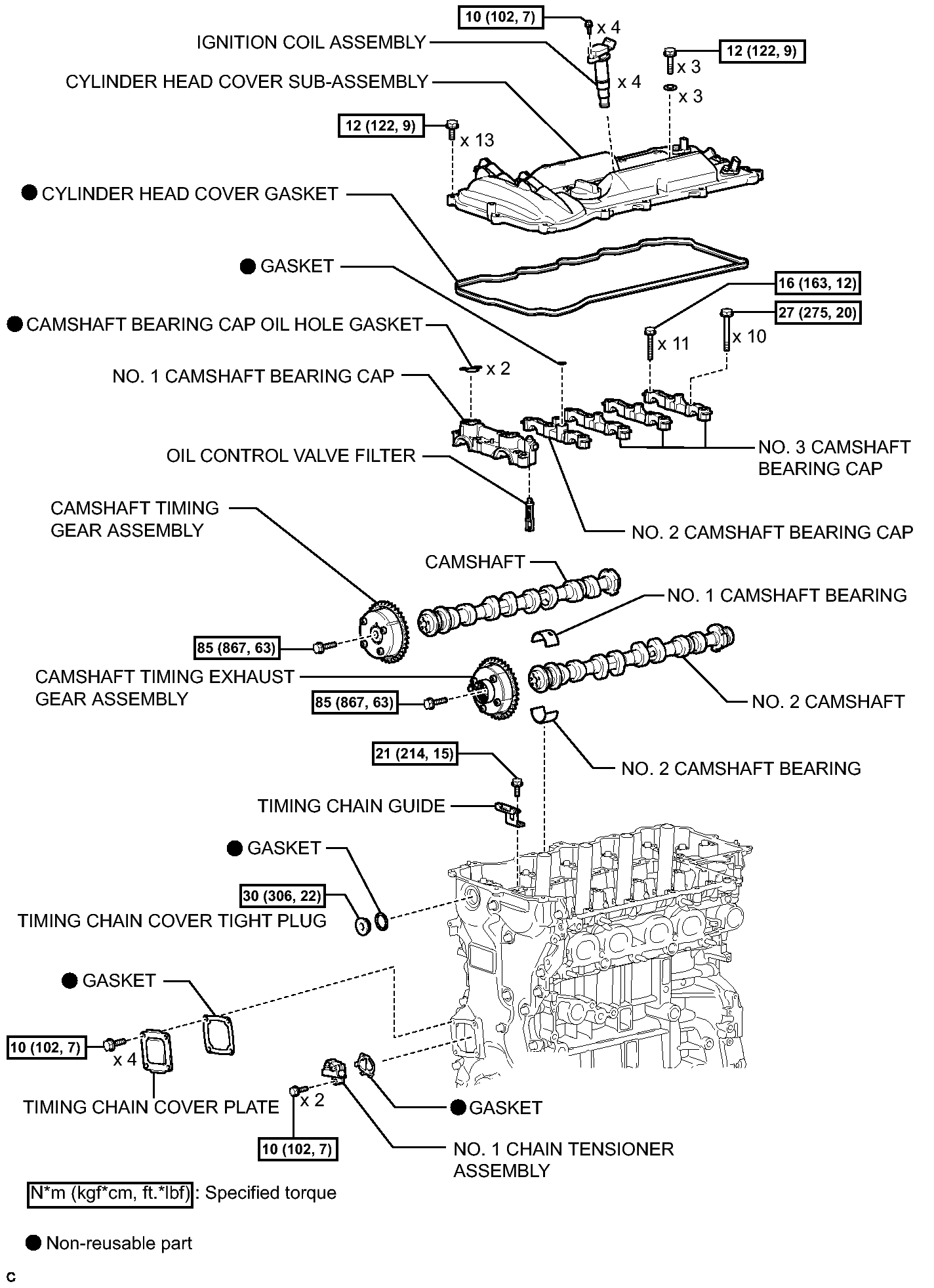

Fig 1: Identifying Camshaft Replacement Components With Torque Specifications (2 Of 2)
GTY304189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
