CLOCK (w/ Multi-information Display): Components: Illustration

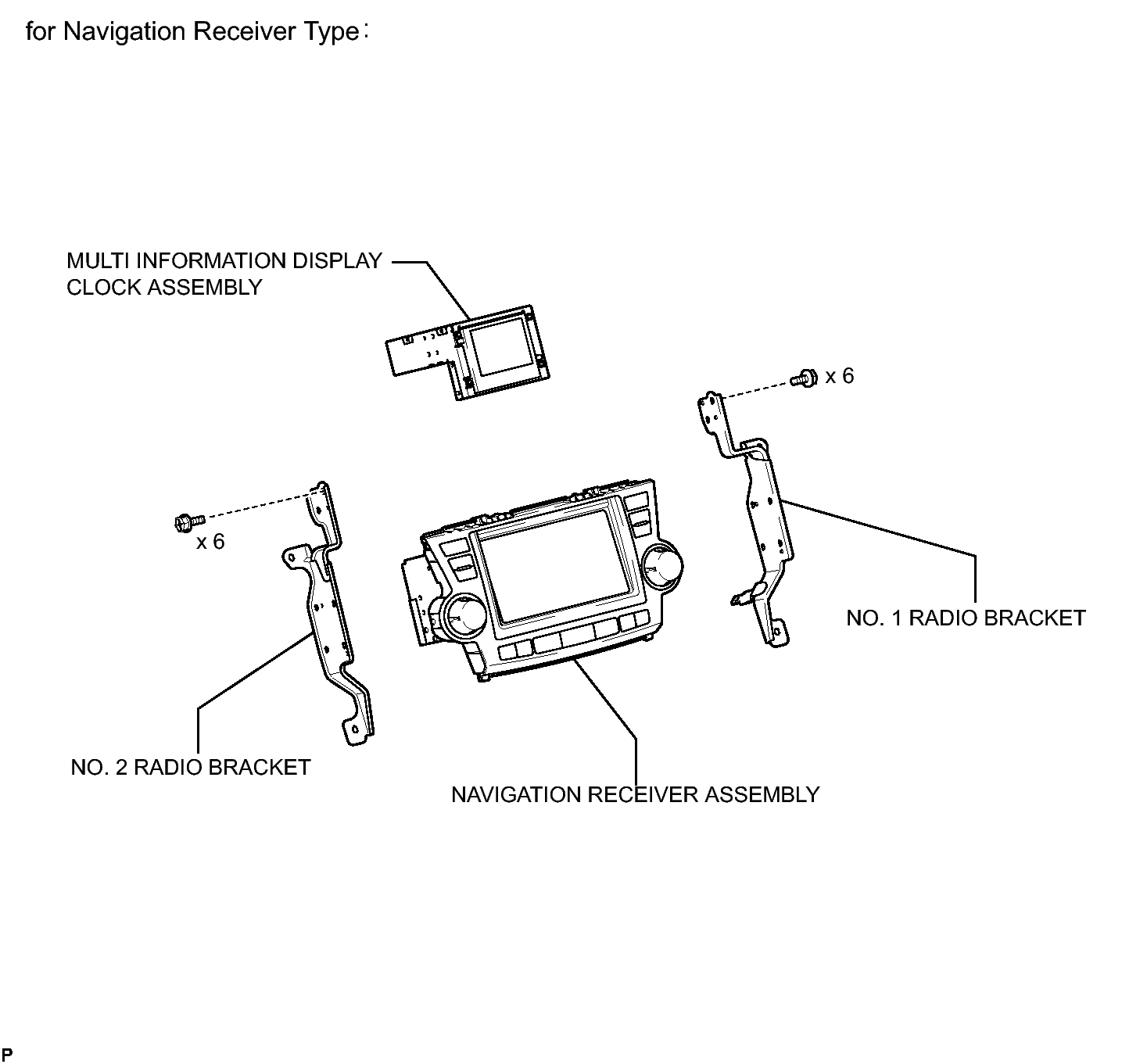

Fig 1: Identifying Clock (w/ Multi-information Display) Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

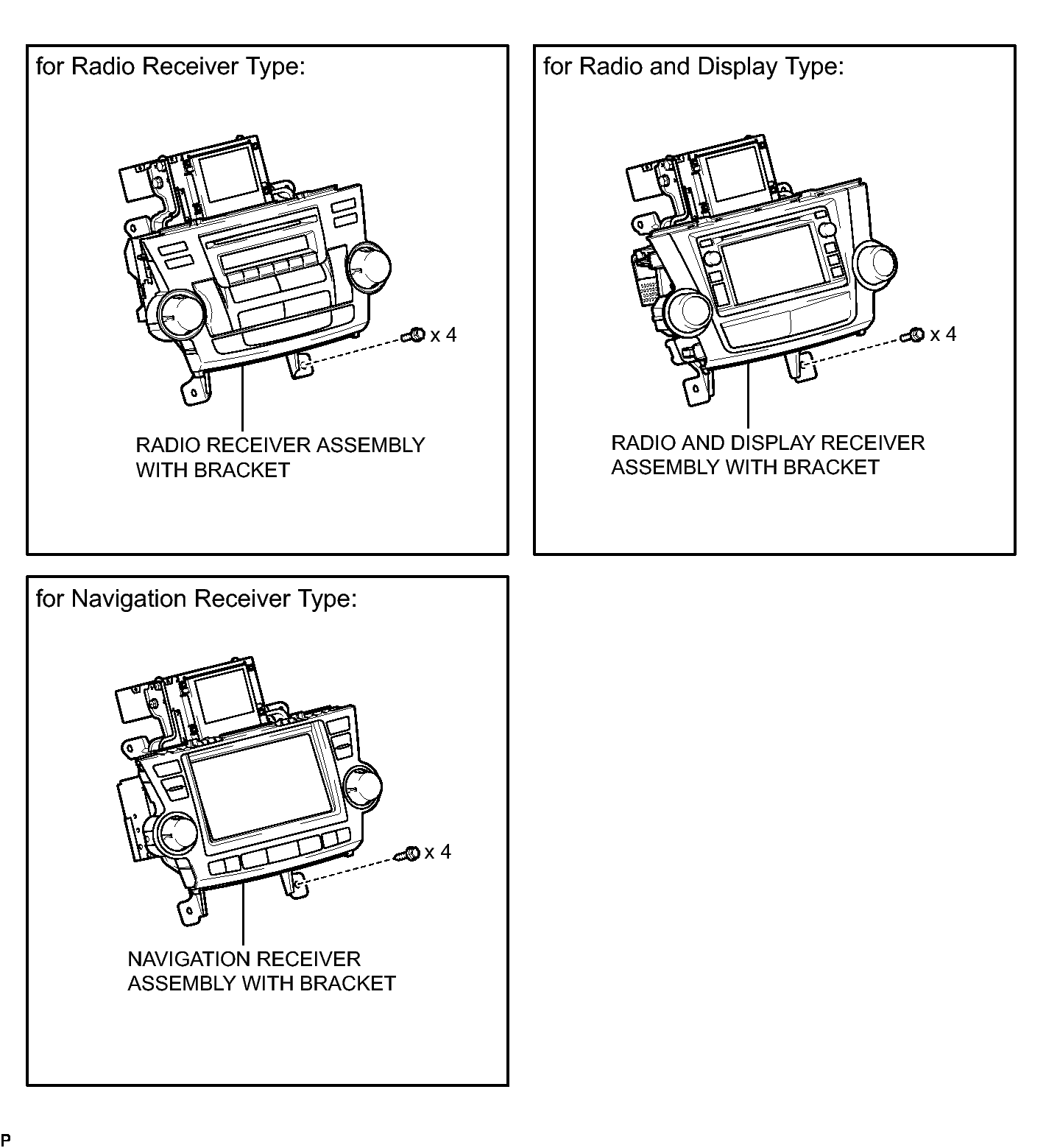

Fig 1: Identifying Clock (w/ Multi-information Display) Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

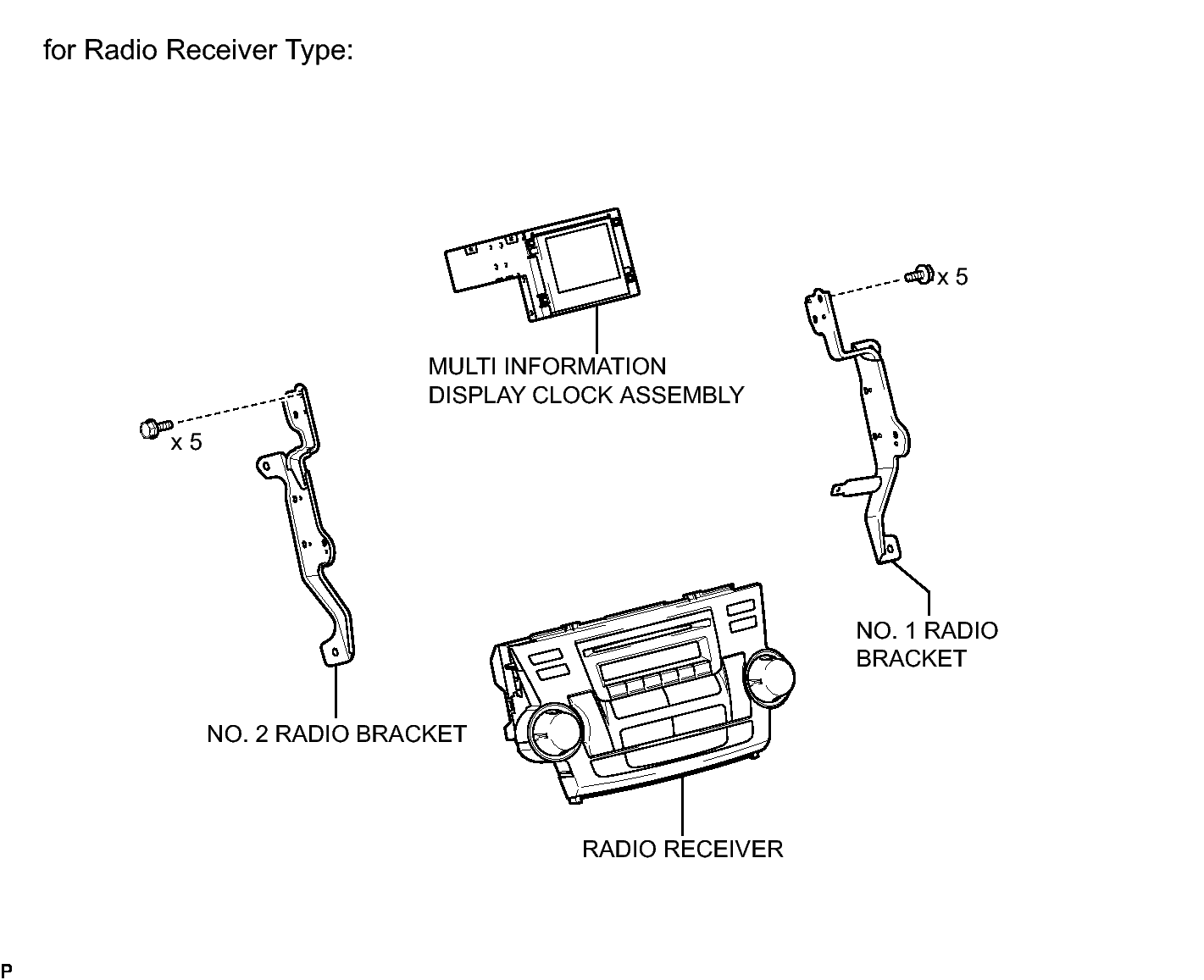

Fig 1: Identifying Clock (w/ Multi-information Display) Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

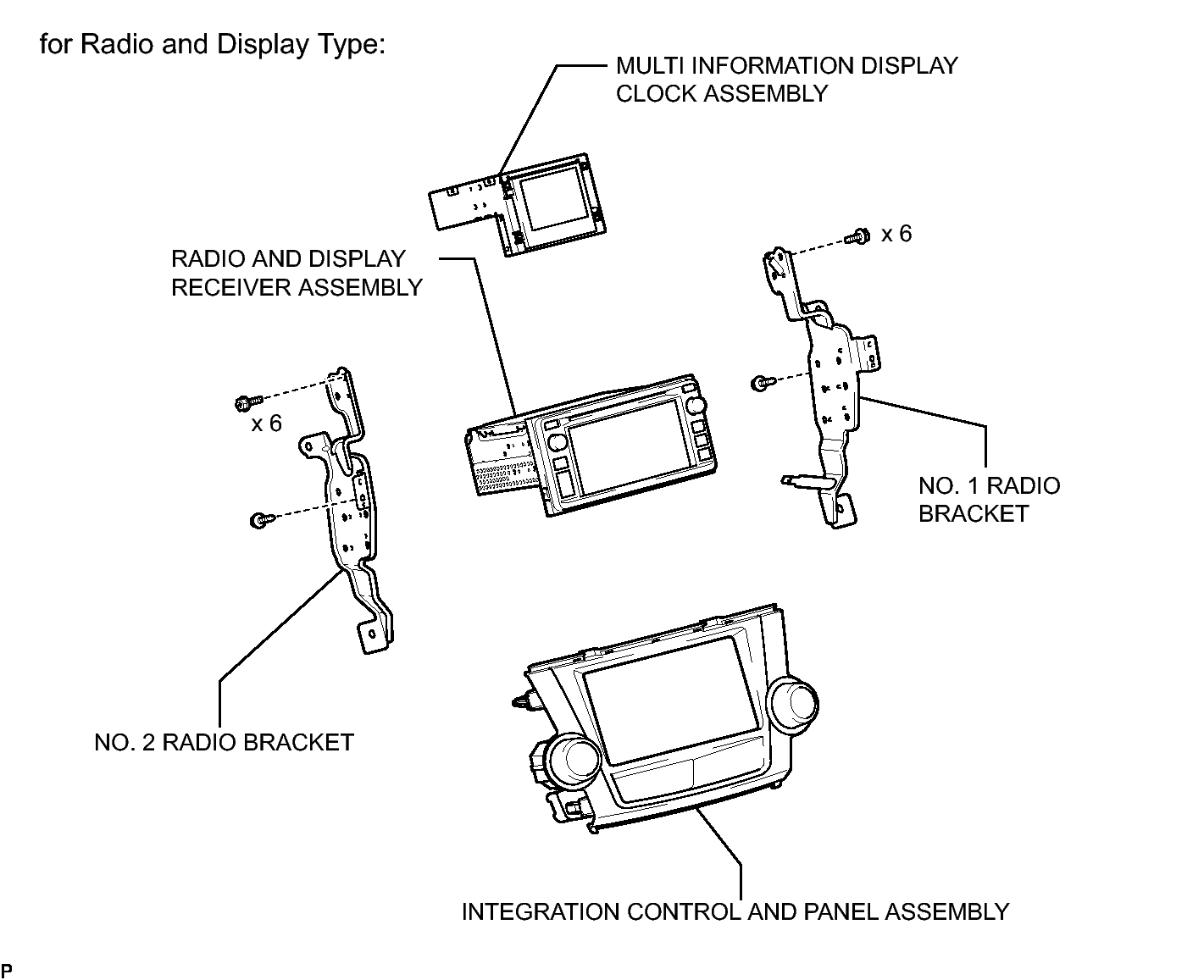

Fig 1: Identifying Clock (w/ Multi-information Display) Replacement Components (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

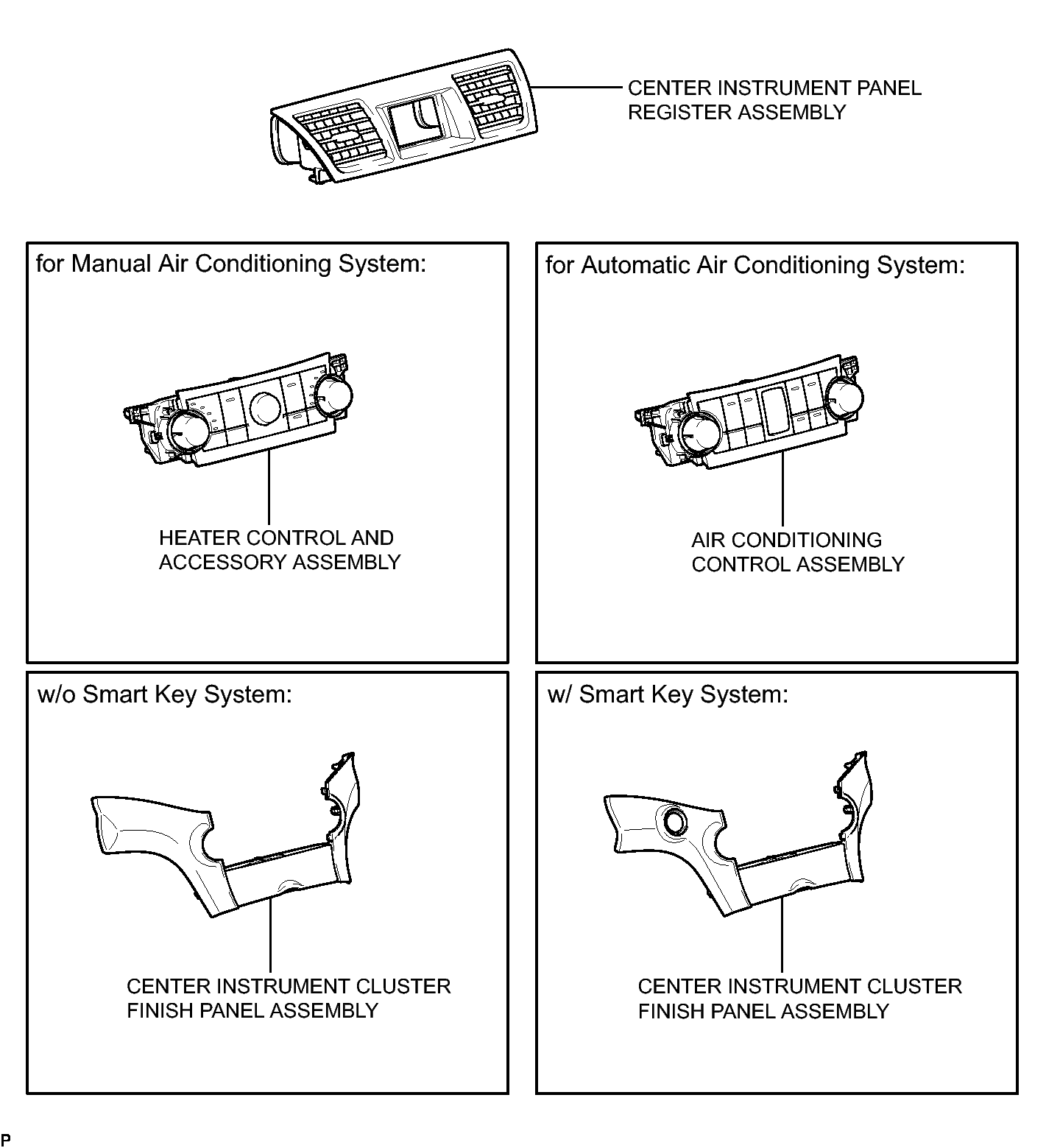

Fig 1: Identifying Clock (w/ Multi-information Display) Replacement Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
