Position of Parts in Engine Compartment

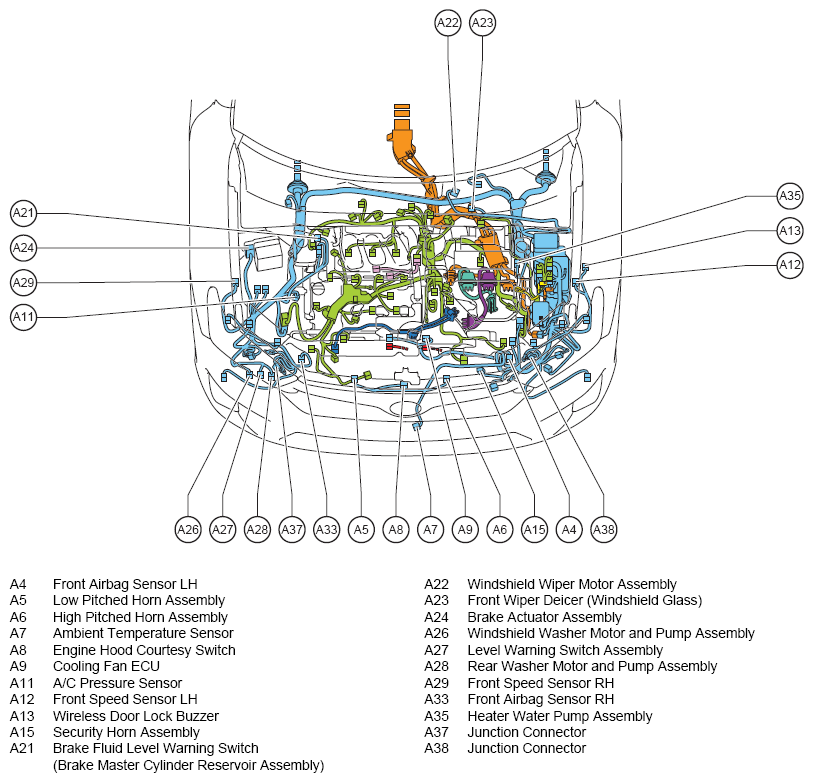

Fig 1: Engine Compartment Parts (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

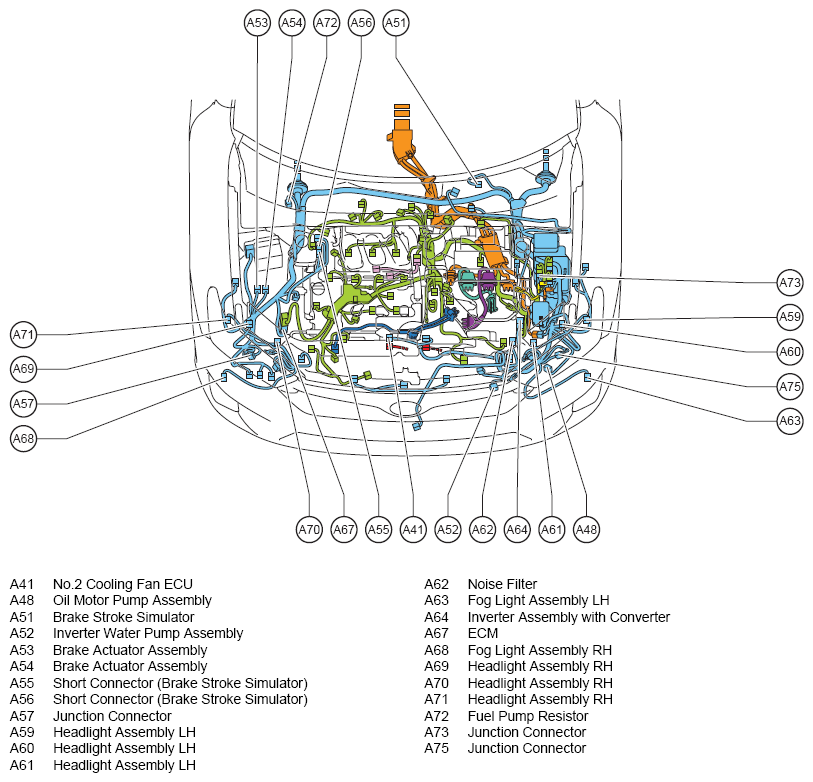

Fig 2: Engine Compartment Parts (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Compartment Parts (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Compartment Parts (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
