OEM Electrical Wiring Routing (Hybrid)
>>
Electrical Wiring Routing
>>
: Location of Ground Points
: Location of Ground Points

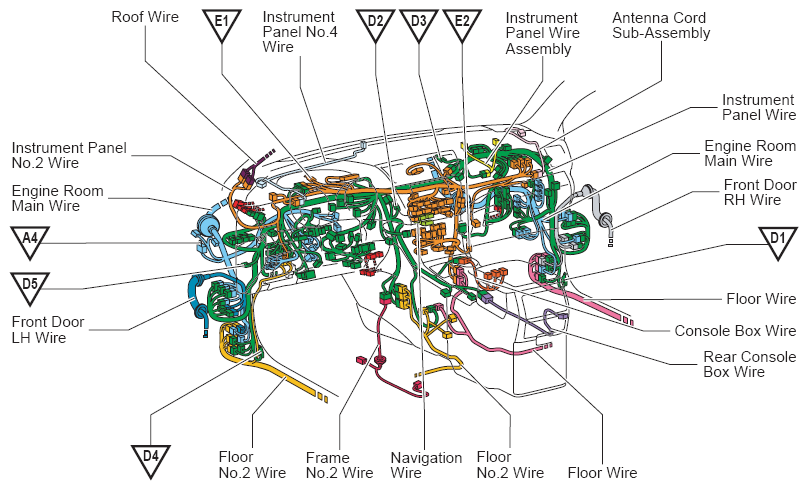

Fig 1: Locating Ground Points
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

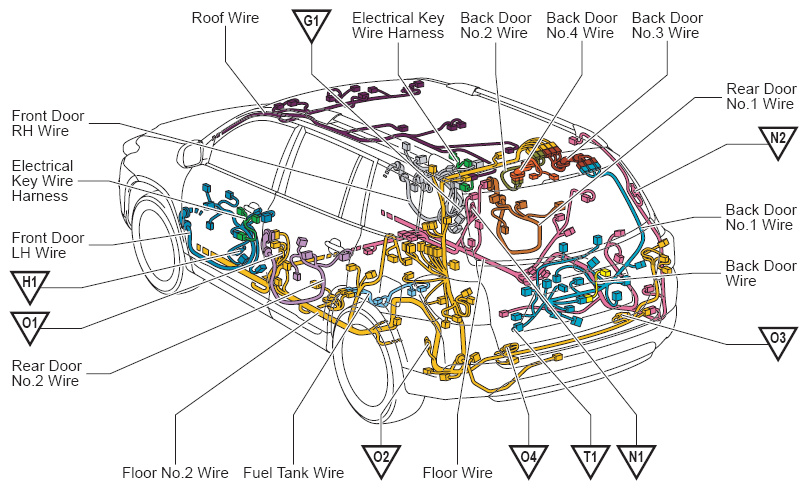

Fig 1: Locating Ground Points
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
