: Location of Connector Joining Wire Harness and Wire Harness: Overview

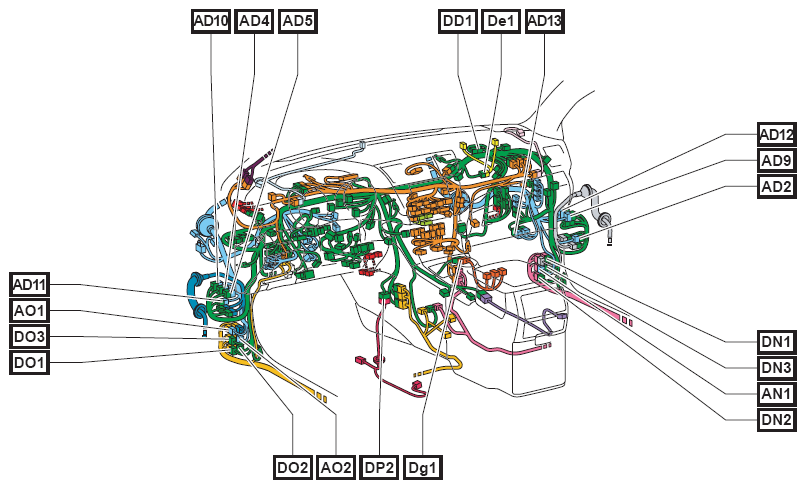

Fig 1: Locating Wiring Harnesses
G09097544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

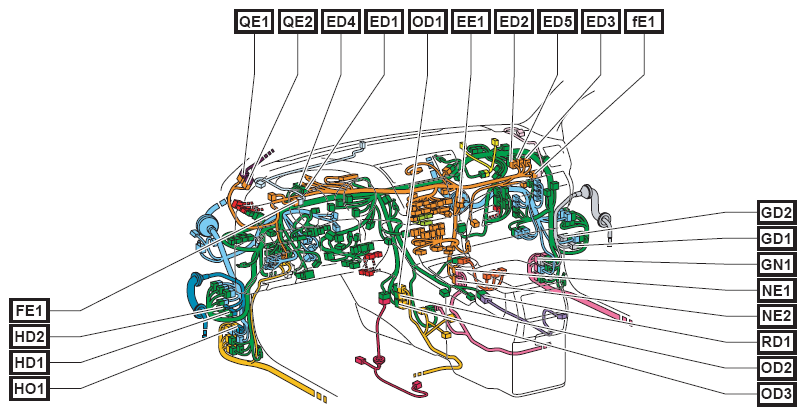

Fig 1: Locating Wiring Harnesses (1 Of 2)
G09097546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

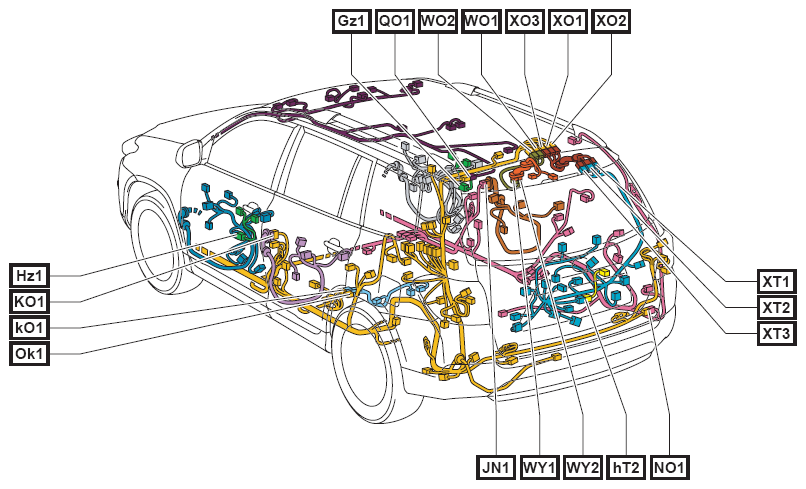

Fig 1: Locating Wiring Harnesses (2 Of 2)
G09097547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
