: Location of Connector Joining Wire Harness and Wire Harness: [Antenna]

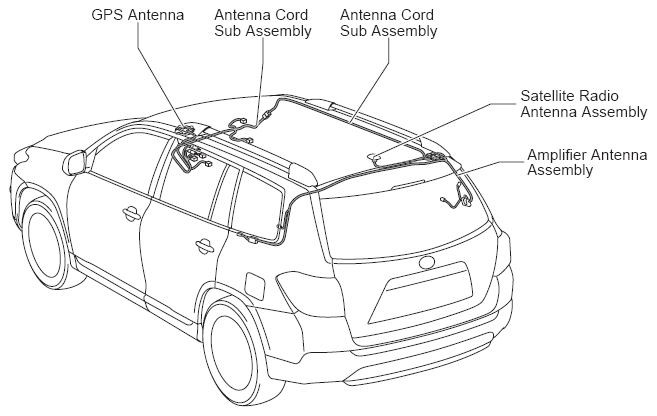

Fig 1: Locating Antenna Wiring Harnesses
G09097552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
