Position of Parts in Instrument Panel

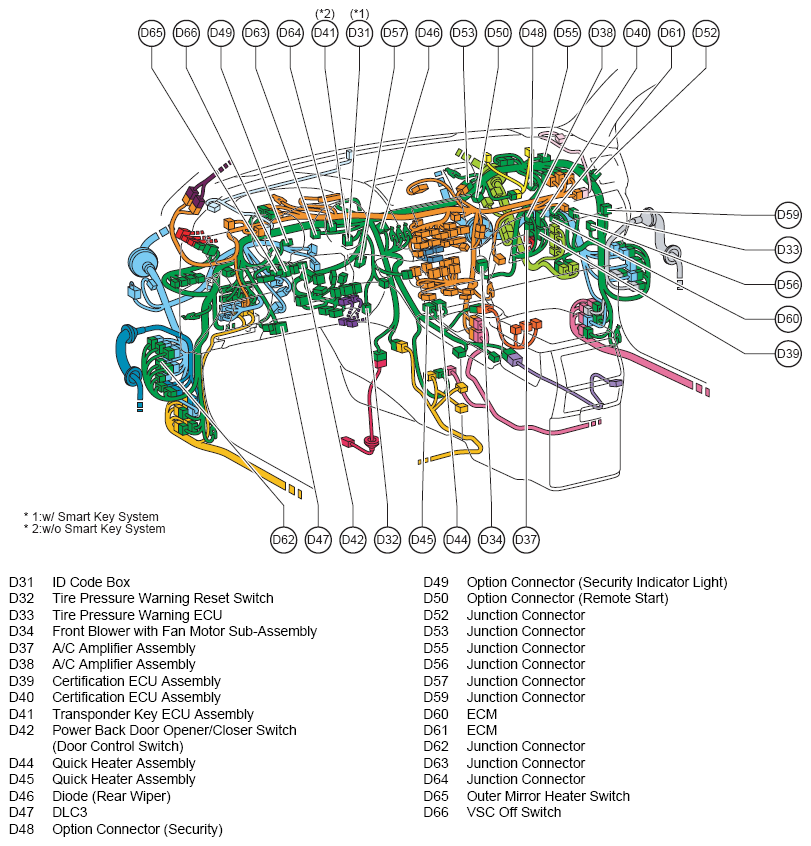

Fig 1: Instrument Panel Parts (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

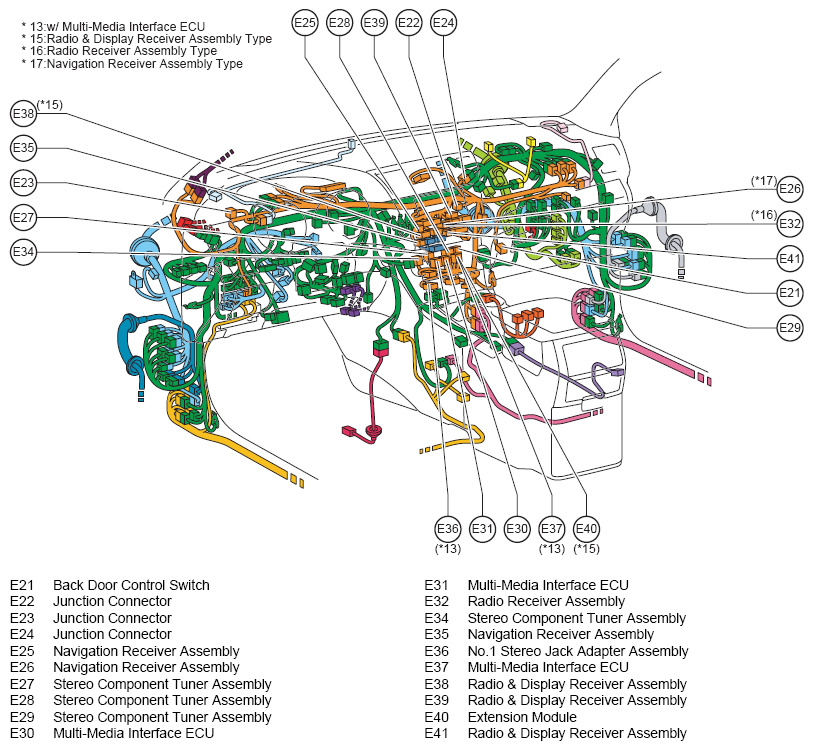

Fig 2: Instrument Panel Parts (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

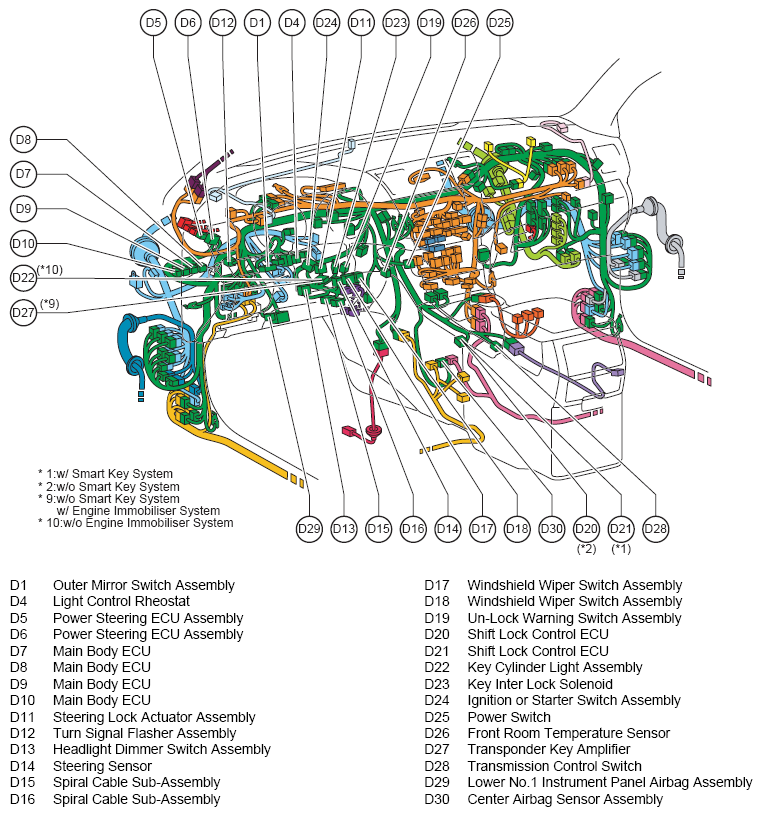

Fig 3: Instrument Panel Parts (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

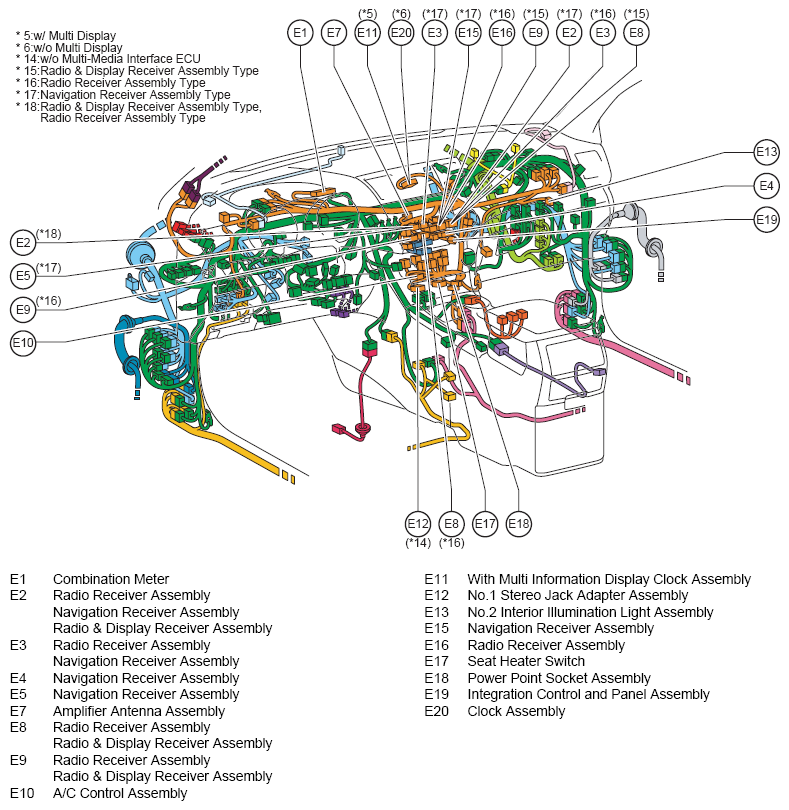

Fig 4: Instrument Panel Parts (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

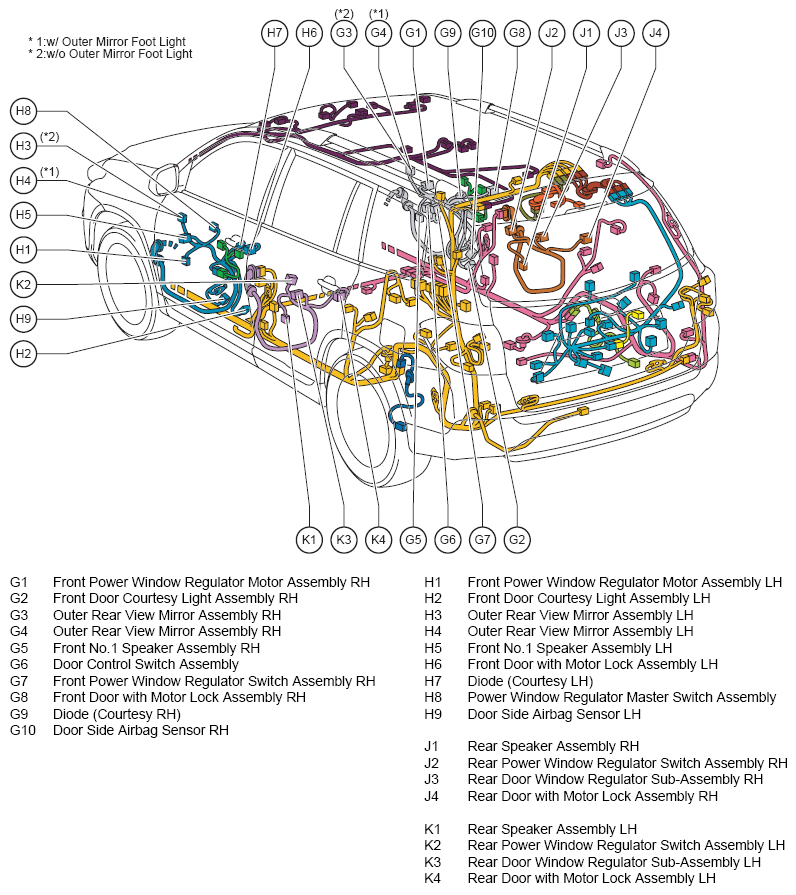

Fig 5: Instrument Panel Parts (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

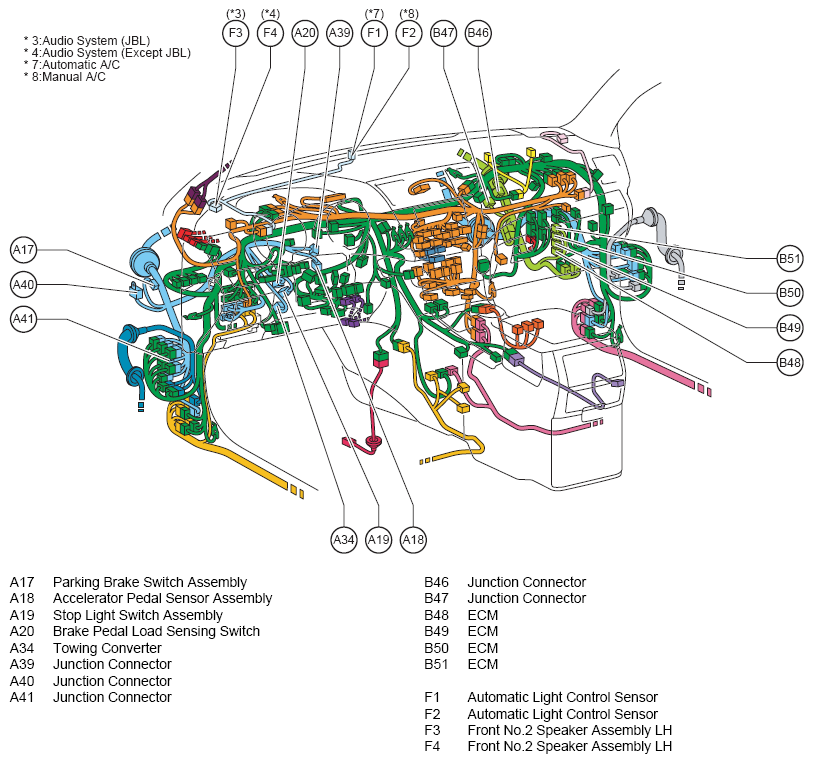

Fig 6: Instrument Panel Parts (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

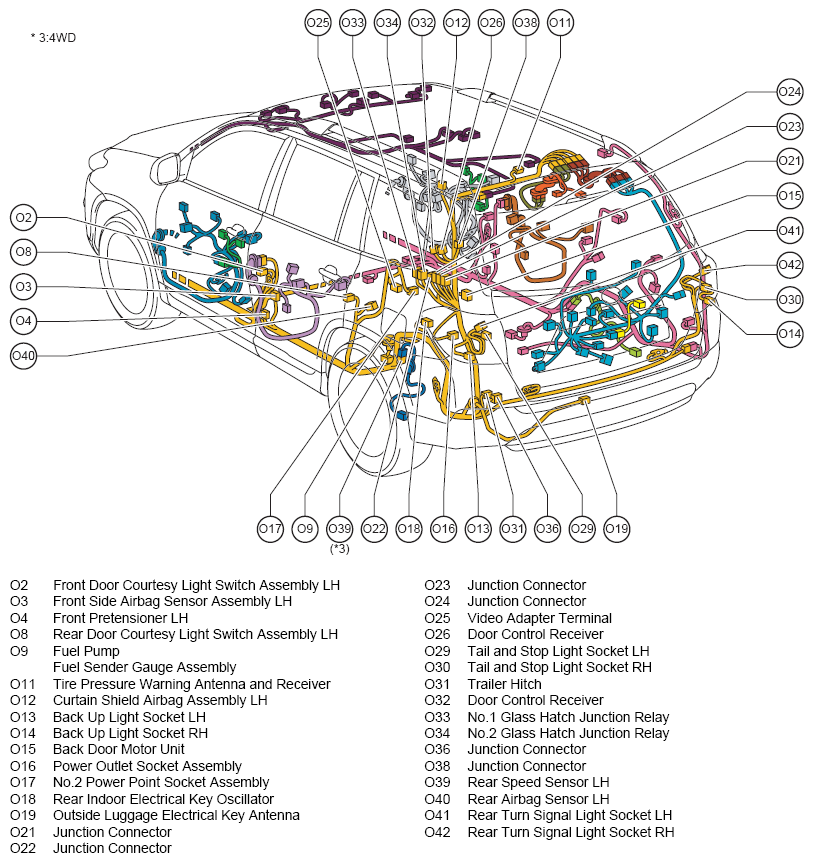

Fig 7: Instrument Panel Parts (7 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

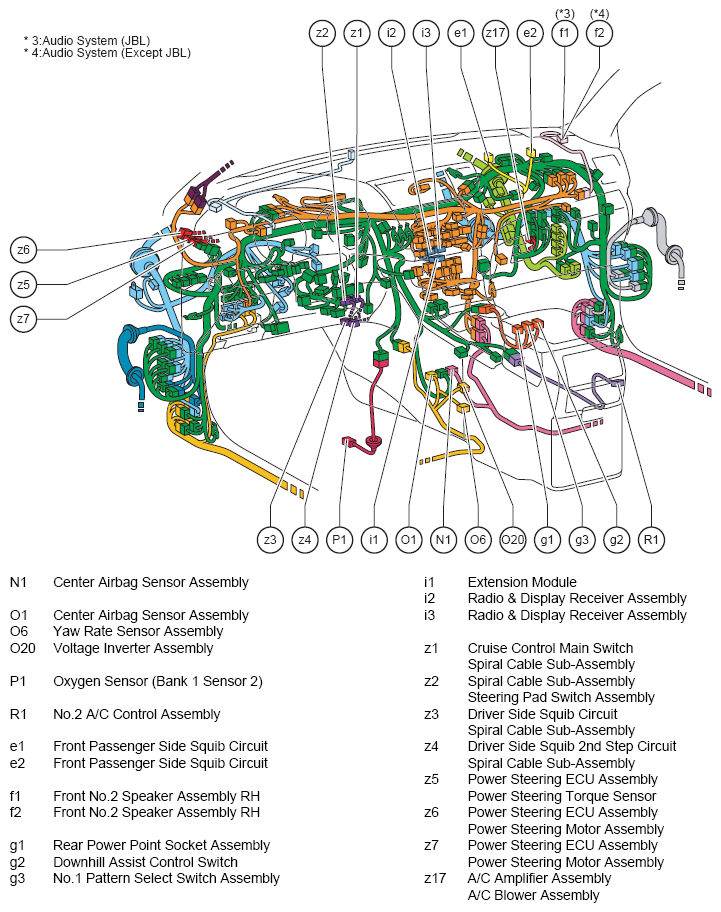

Fig 8: Instrument Panel Parts (8 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Instrument Panel Parts (9 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Instrument Panel Parts (10 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
