: Location of Connector Joining Wire Harness and Wire Harness: Overview

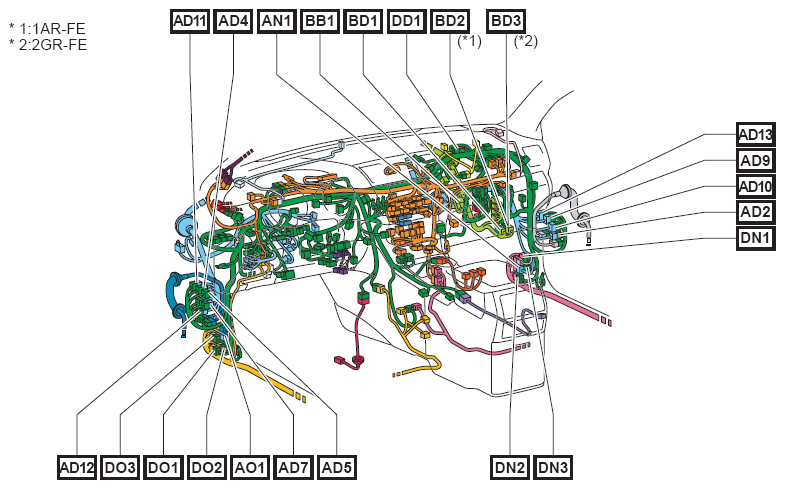

Fig 1: Locating Wiring Harness And Ground Point (1AR-FE; 2 Of 6)
G09098423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

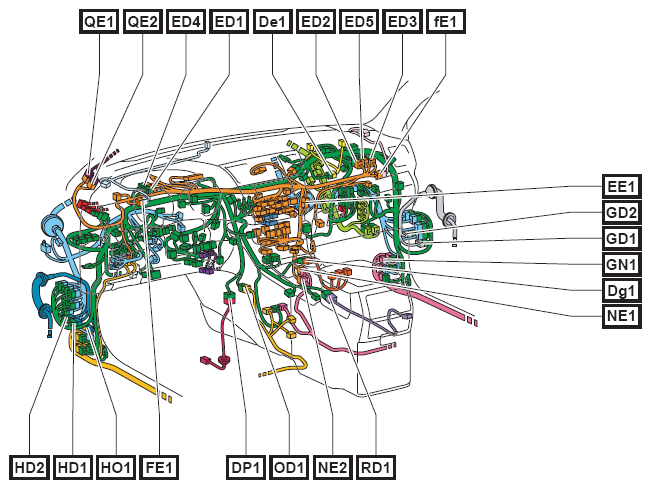

Fig 1: Locating Wiring Harness And Ground Point (1AR-FE; 4 Of 6)
G09098425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

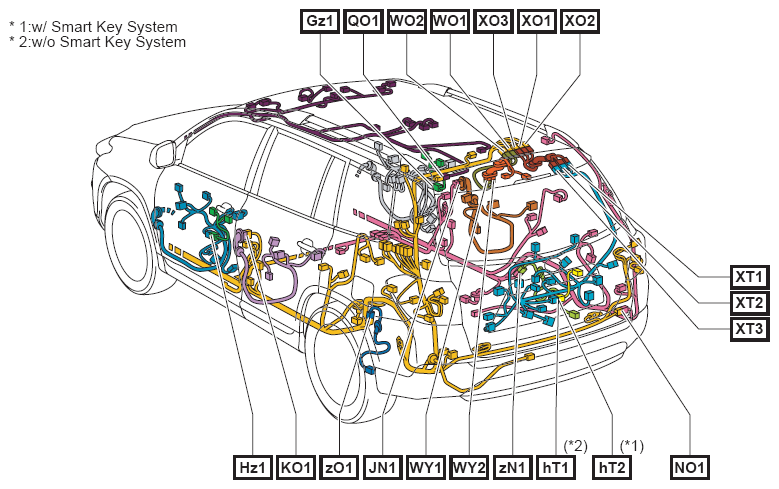

Fig 1: Locating Wiring Harness And Ground Point (1AR-FE; 5 Of 6)
G09098426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
