[w/ Front Passenger's Power Seat]

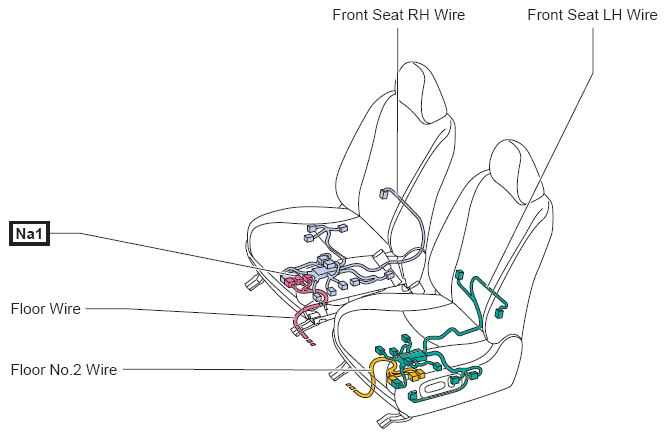

Fig 1: Locating Wiring Harness And Ground Point (W/ Front Passenger's Power Seat)
G09098428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
