: Location of Connector Joining Wire Harness and Wire Harness: : Location of Ground Points: [2GR-FE]

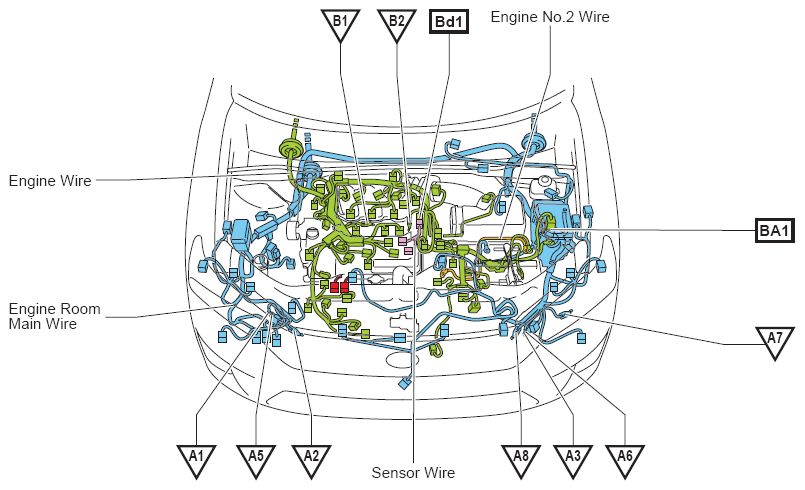

Fig 1: Locating Wiring Harness And Ground Point (2GR-FE)
G09098421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
