Speed Signal Circuit: Wiring Diagram

  1. for 2GR-FE

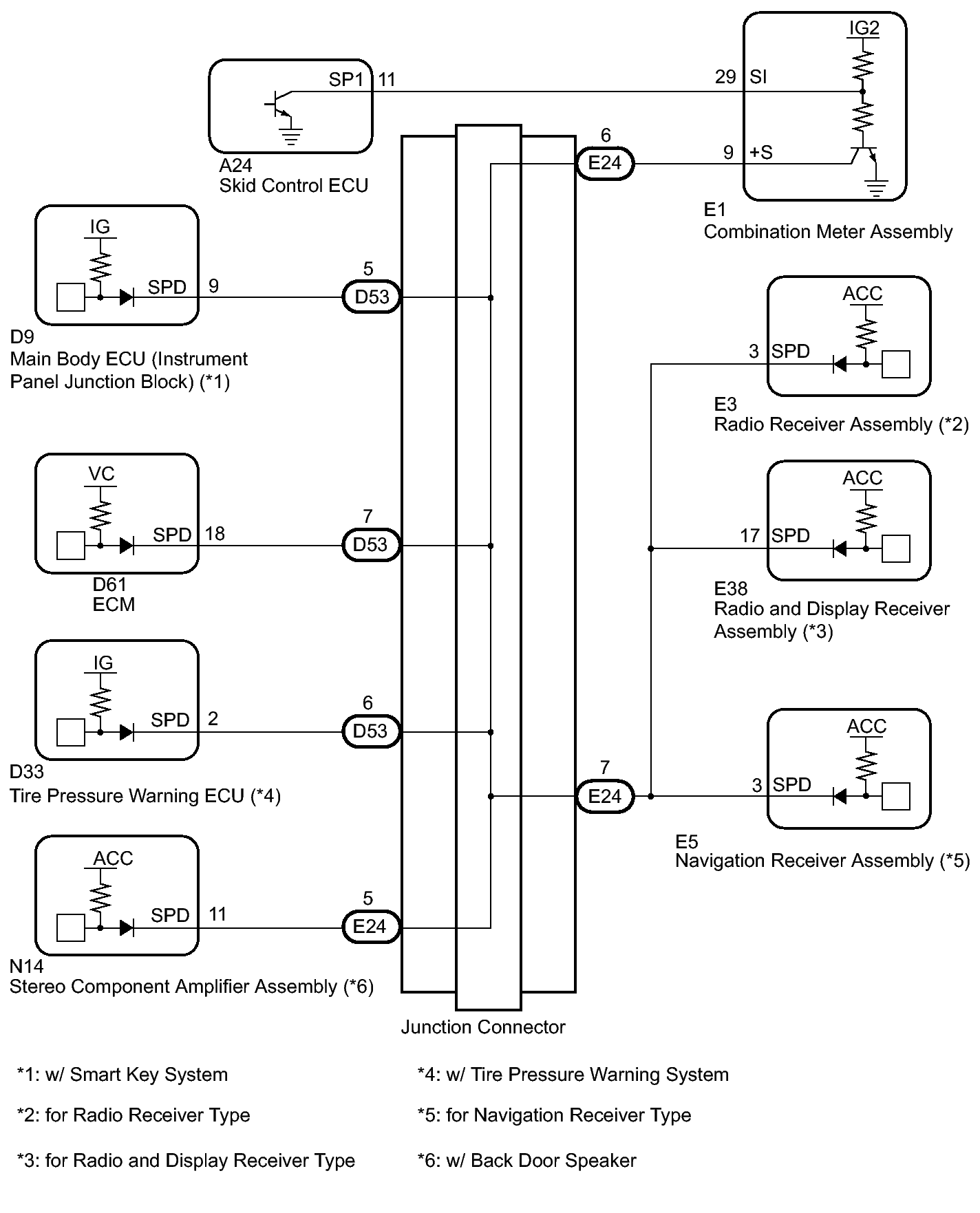

    Fig 1: Speed Signal Circuit Wiring Diagram (1 Of 2)
    GTY378701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 1AR-FE

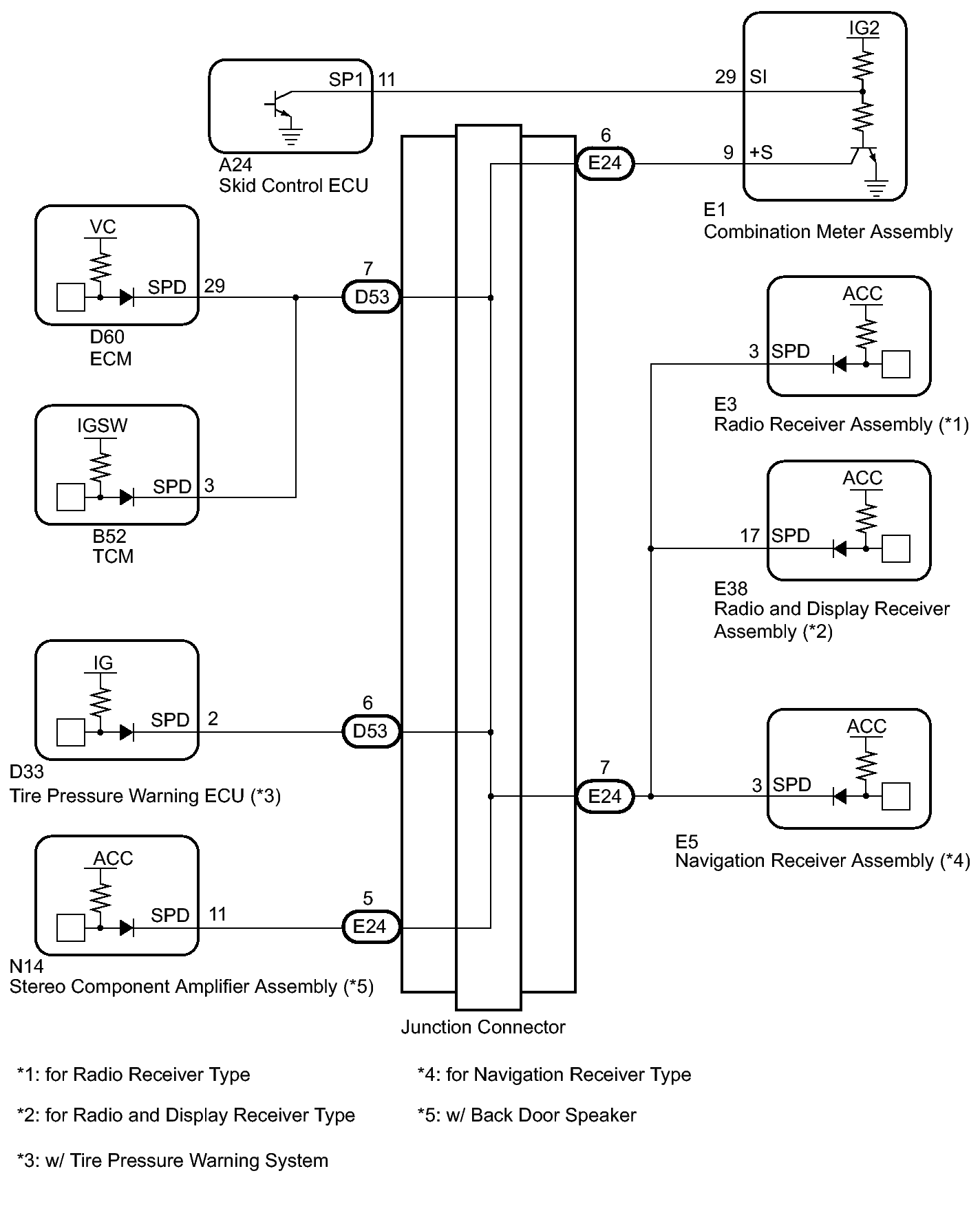

    Fig 2: Speed Signal Circuit Wiring Diagram (2 Of 2)
    GTY373892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
