Stop Light Wiring Diagram

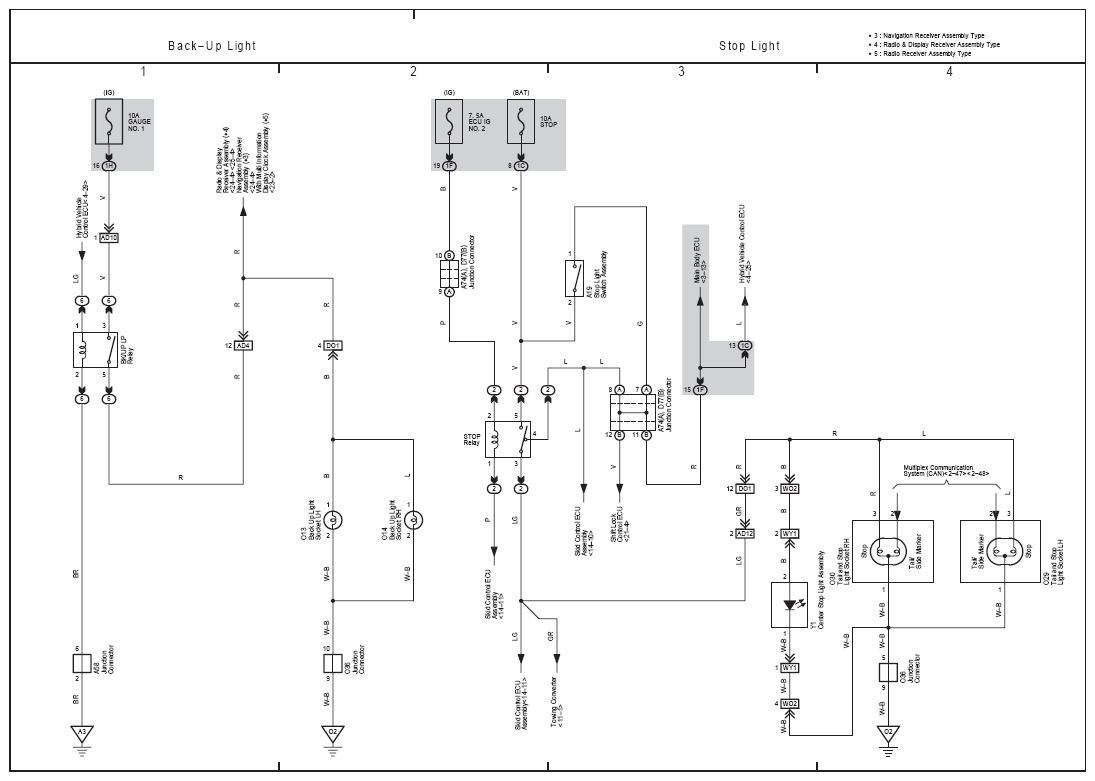

Fig 1: Stop Light Electrical Wiring Diagram

G09098338

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
