Seat Heater Wiring Diagram

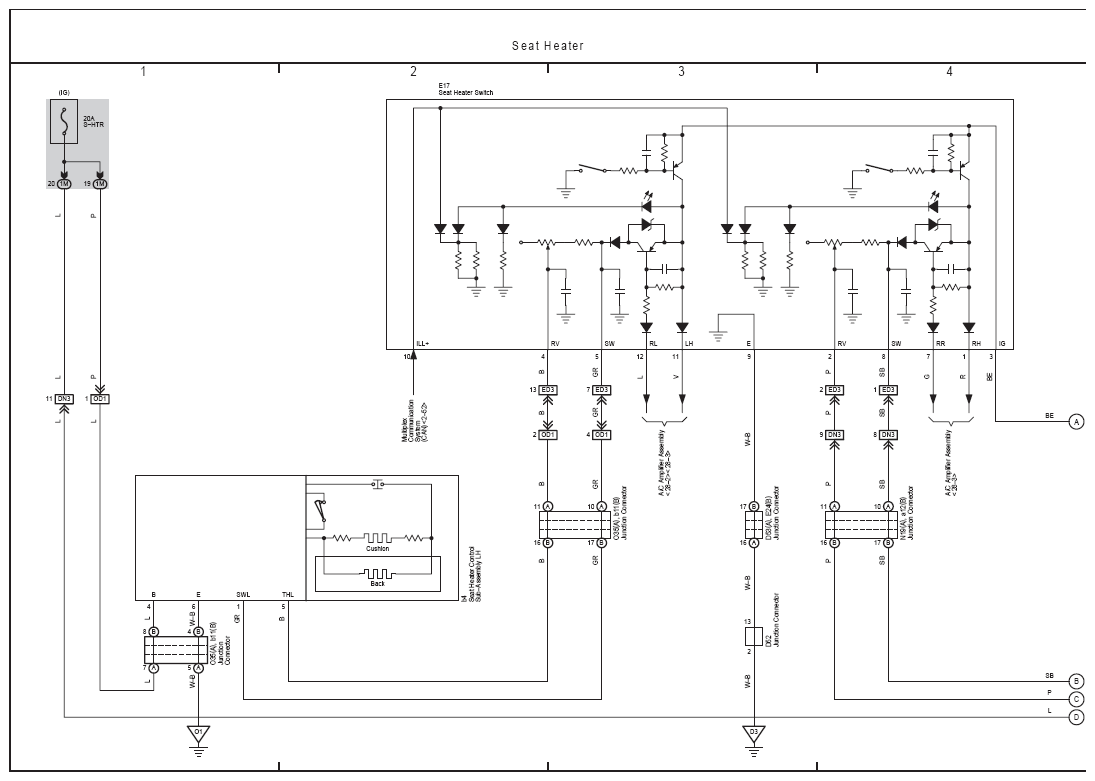

Fig 1: Seat Heater Electrical Wiring Diagram (1 Of 2)
G09098352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

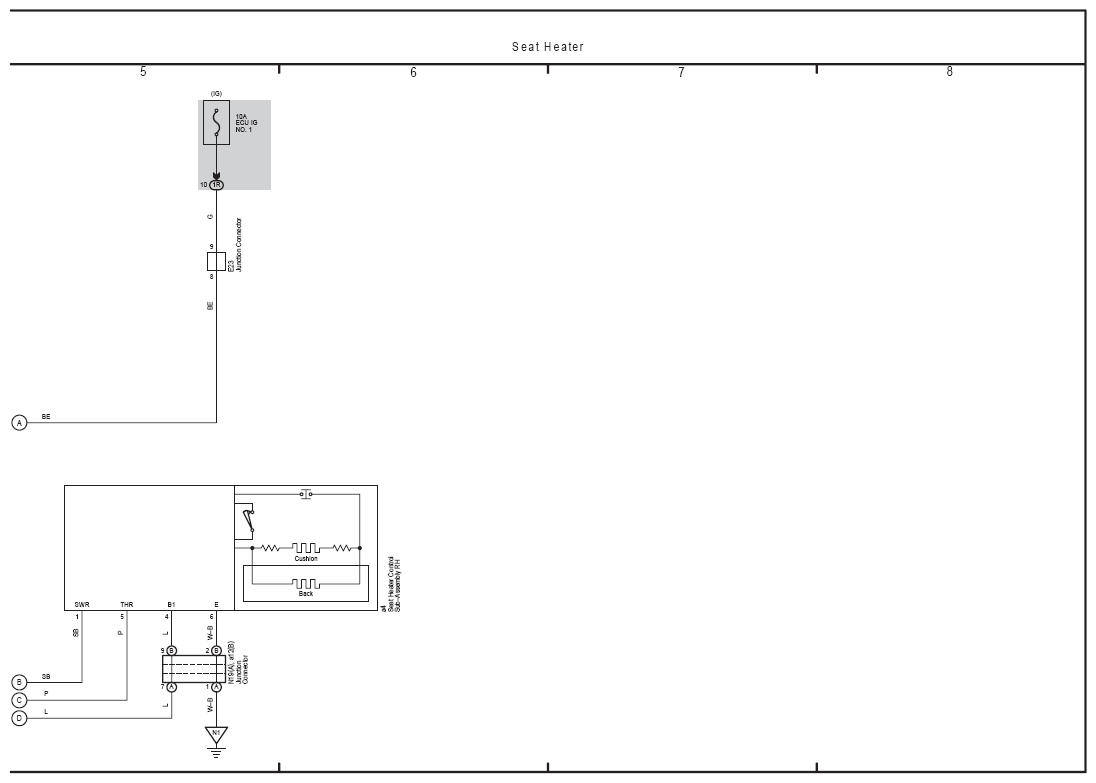

Fig 2: Seat Heater Electrical Wiring Diagram (2 Of 2)
G09098353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
