SRS System Wiring Diagrams

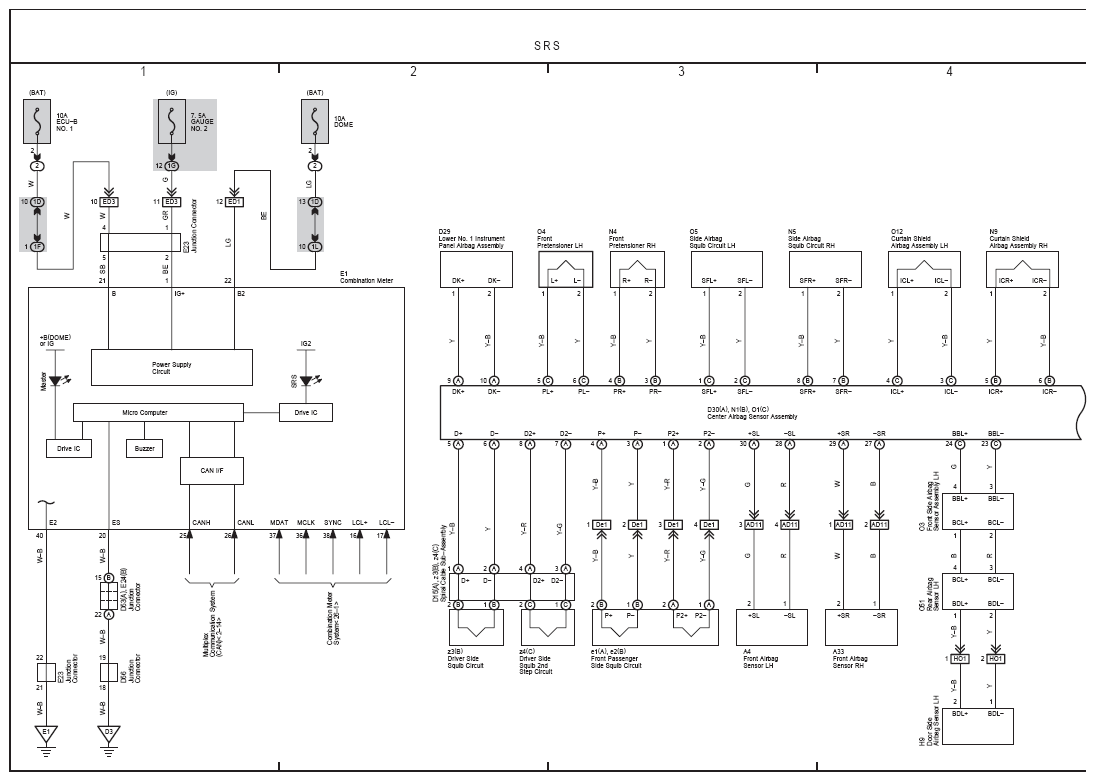

Fig 1: SRS System Electrical Wiring Diagram (1 Of 2)
G09098347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

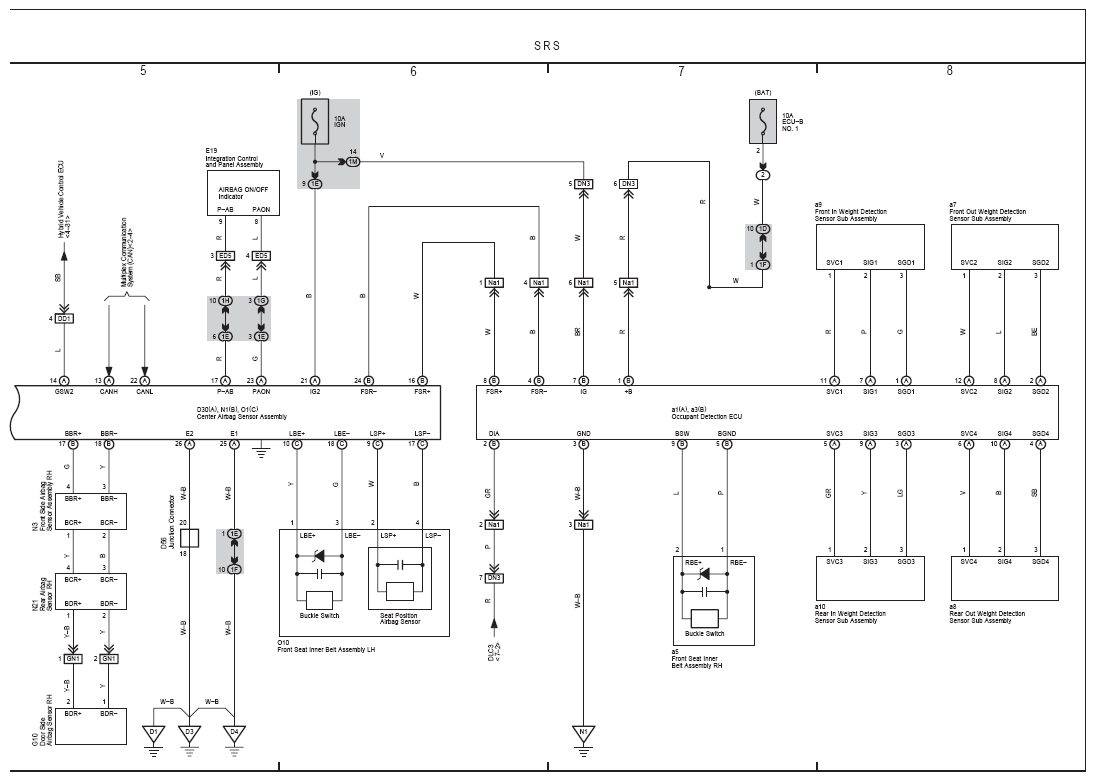

Fig 2: SRS System Electrical Wiring Diagram (2 Of 2)
G09098348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
