Rear Window Defogger Wiring Diagram

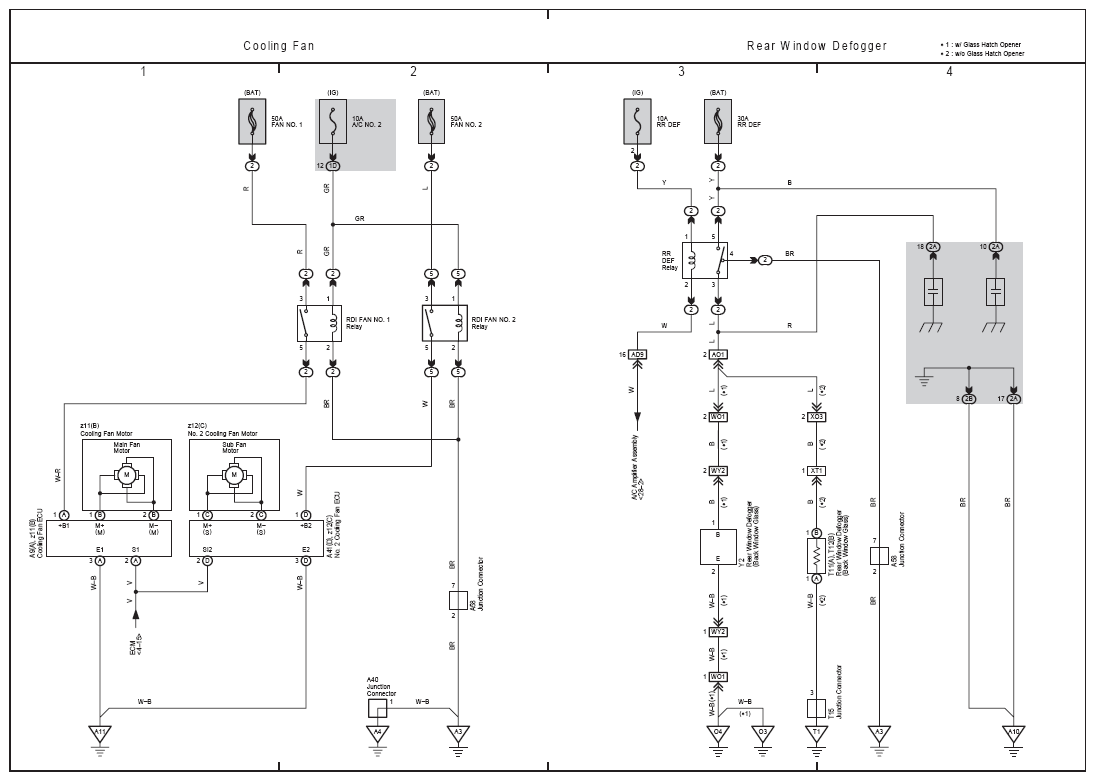

Fig 1: Rear Window Defogger Electrical Wiring Diagram

G09098369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
