Power Back Door Wiring Diagram

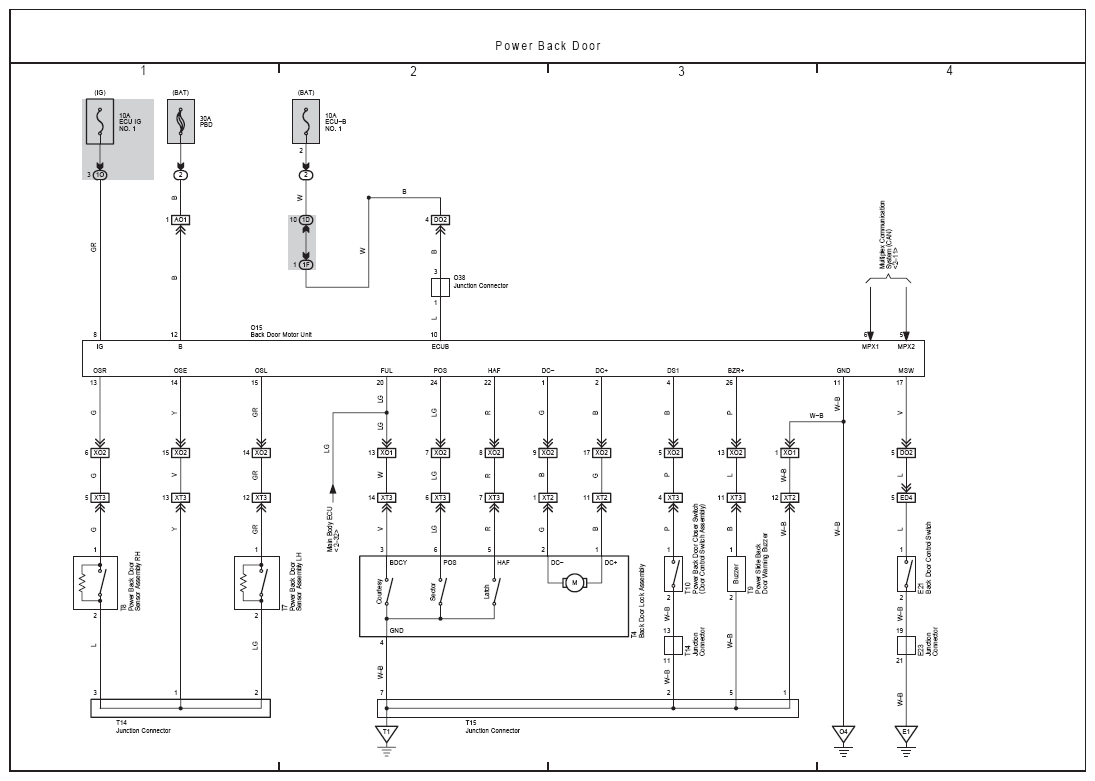

Fig 1: Power Back Door Electrical Wiring Diagram

G09098350

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
