Multi-Display And Parking Assist (Rear View Monitor W/O Module And JBL) Wiring Diagram

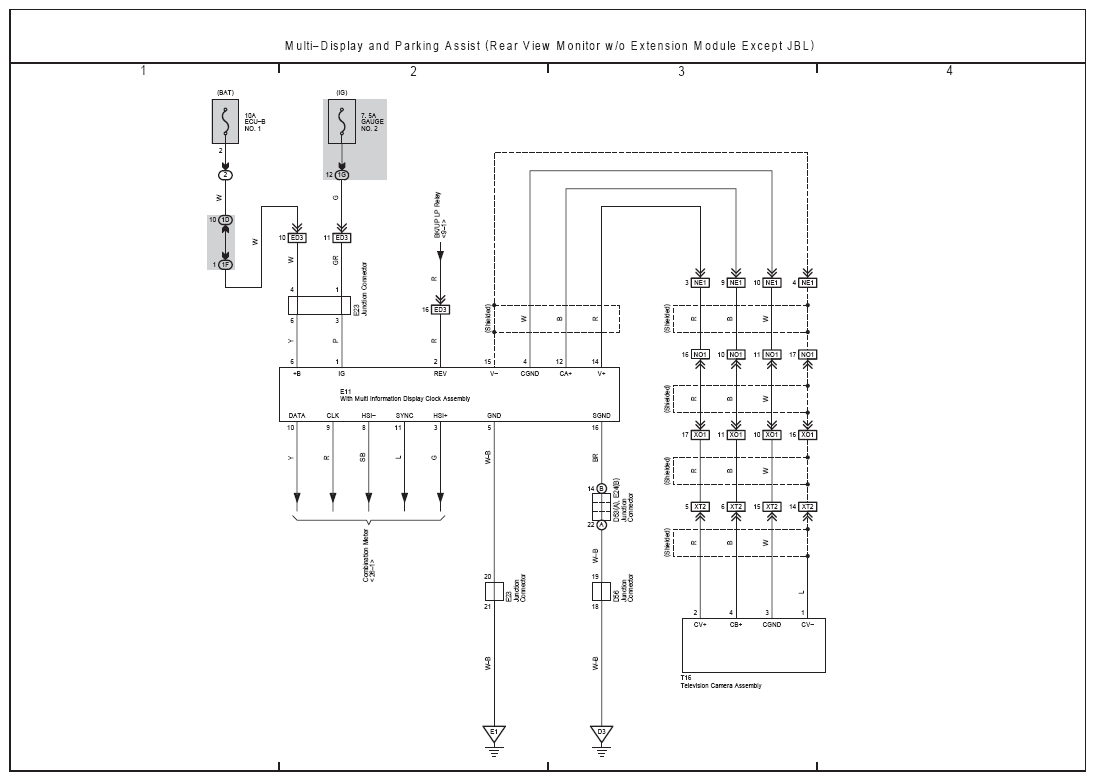

Fig 1: Multi-Display And Parking Assist (Rear View Monitor W/O Module And JBL) Electrical Wiring Diagram
G09098357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
