Immobiliser, Starting, Steering Lock And Wireless Door Lock Control (With Smart Key) Wiring Diagrams

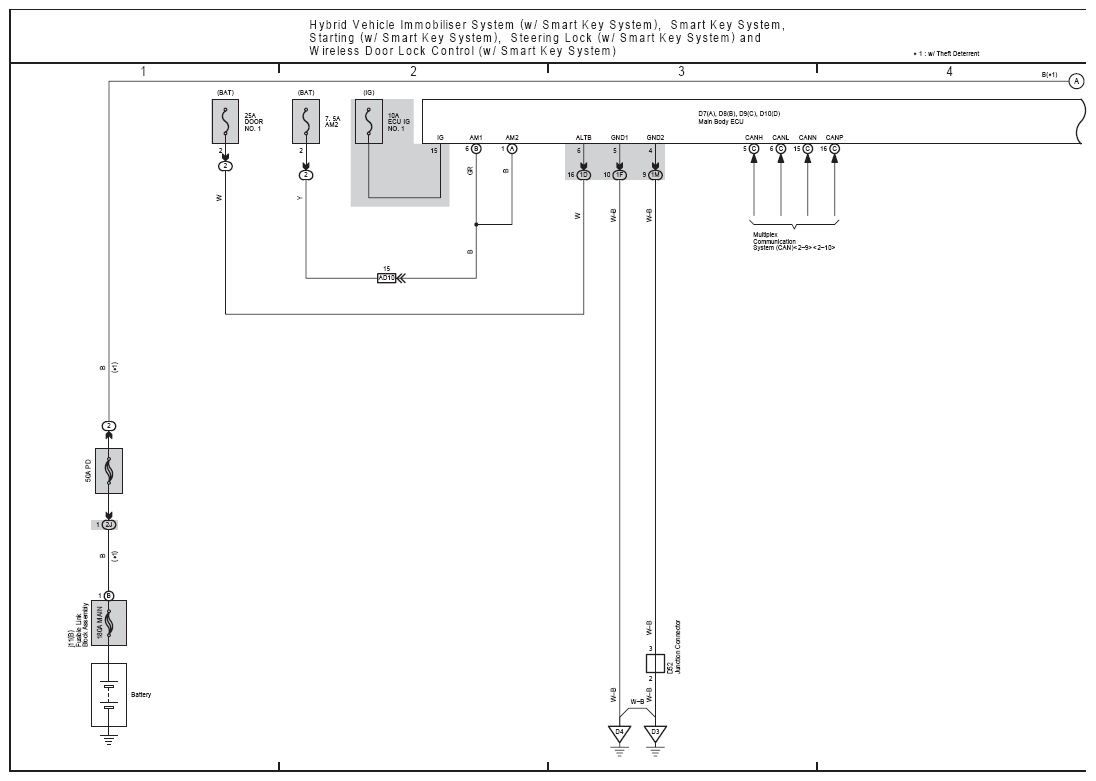

Fig 1: Immobiliser, Starting, Steering Lock And Wireless Door Lock Control (With Smart Key) Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

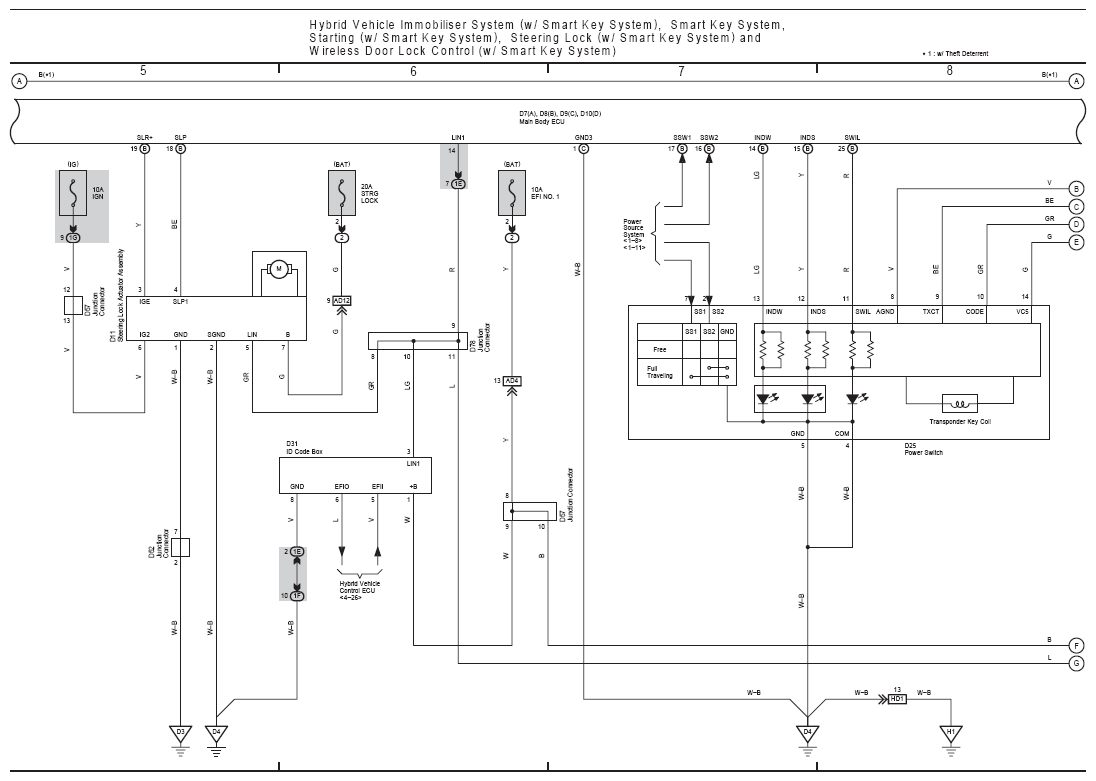

Fig 2: Immobiliser, Starting, Steering Lock And Wireless Door Lock Control (With Smart Key) Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

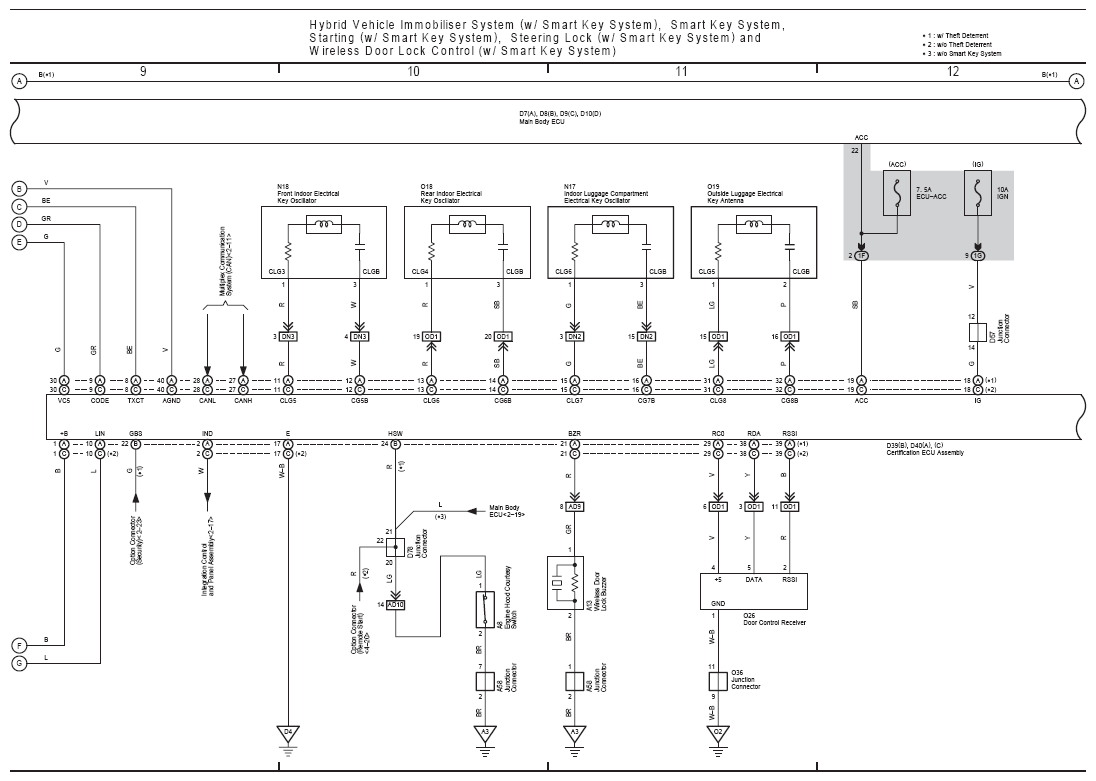

Fig 3: Immobiliser, Starting, Steering Lock And Wireless Door Lock Control (With Smart Key) Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

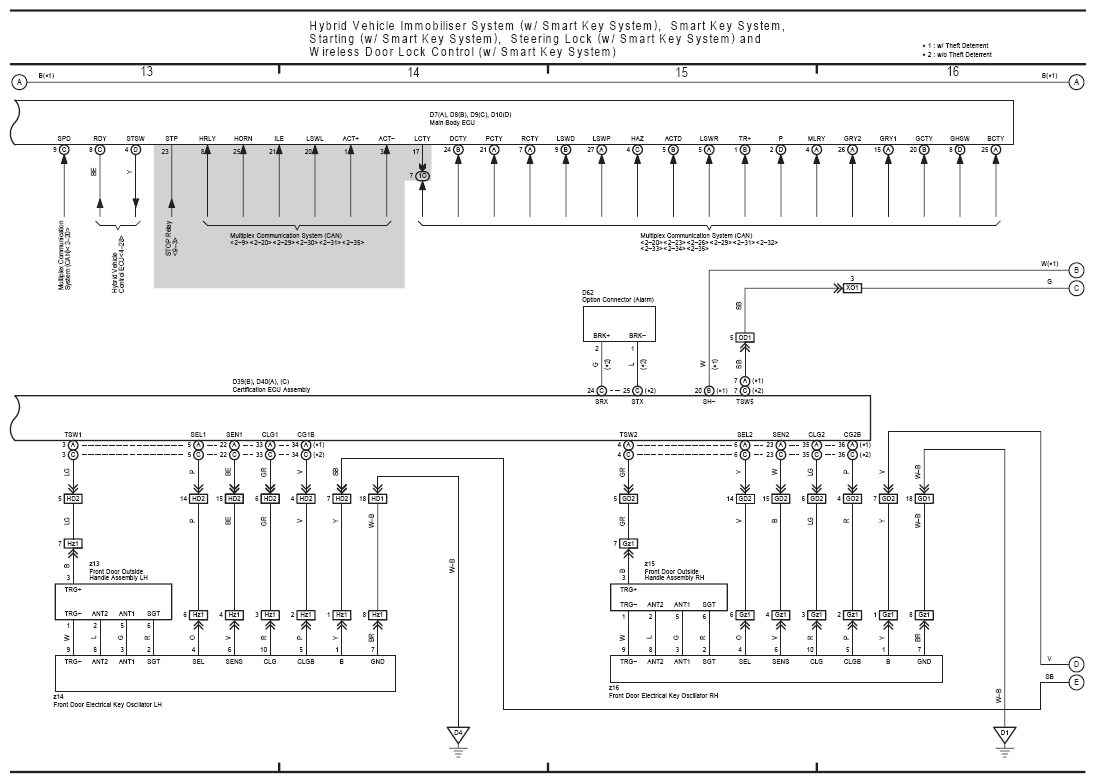

Fig 4: Immobiliser, Starting, Steering Lock And Wireless Door Lock Control (With Smart Key) Electrical Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

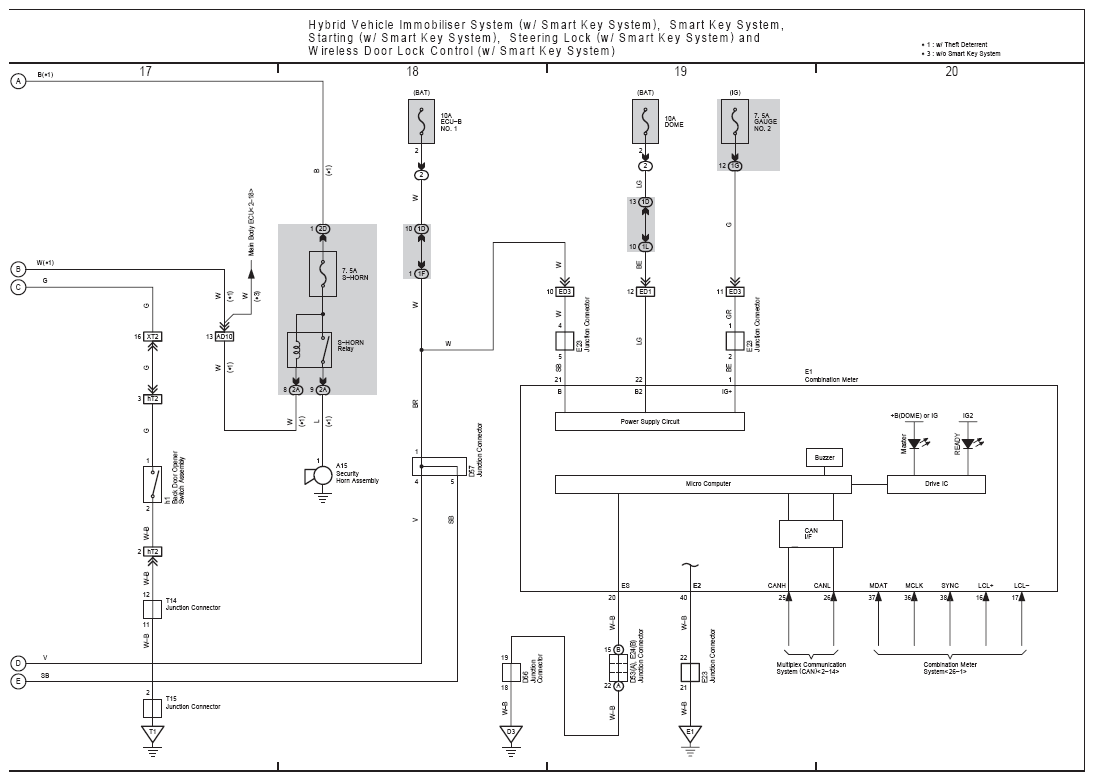

Fig 5: Immobiliser, Starting, Steering Lock And Wireless Door Lock Control (With Smart Key) Electrical Wiring Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
