Highlander SE, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Overall Electrical Wiring Diagram (Hybrid)
>>
Overall Electrical Wiring Diagram
>>
How To Read This Section
How To Read This Section

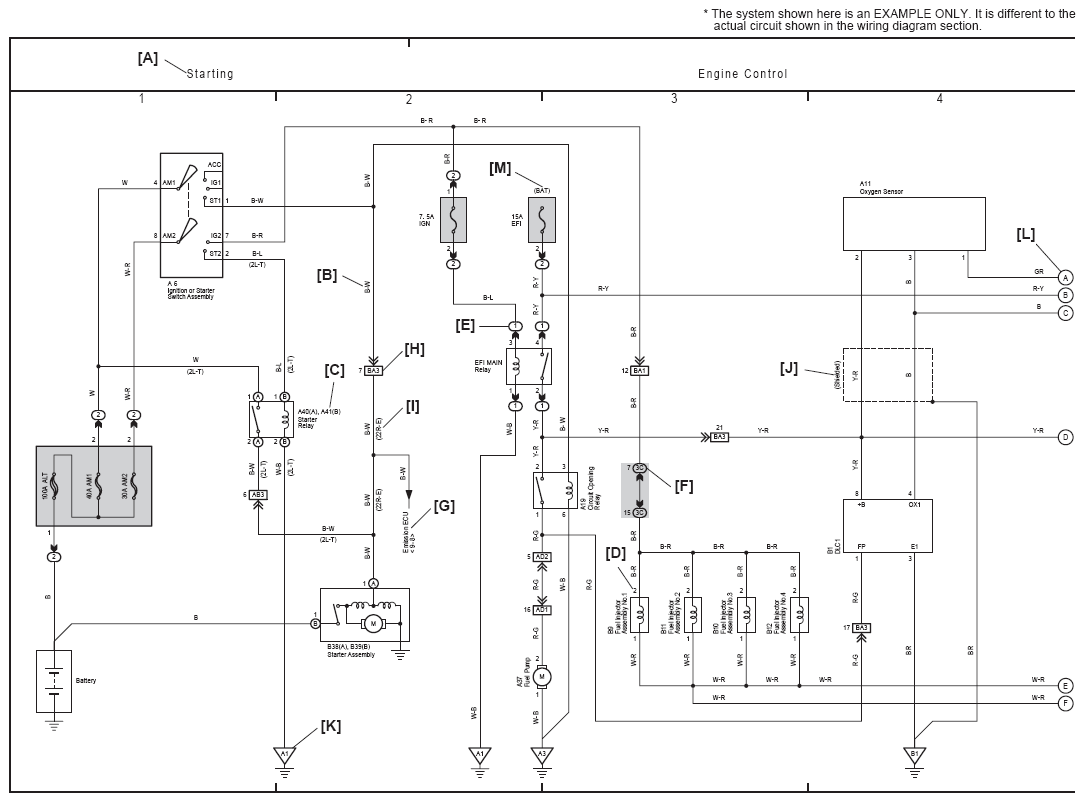

Fig 1: Electrical Wiring Diagram Example
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

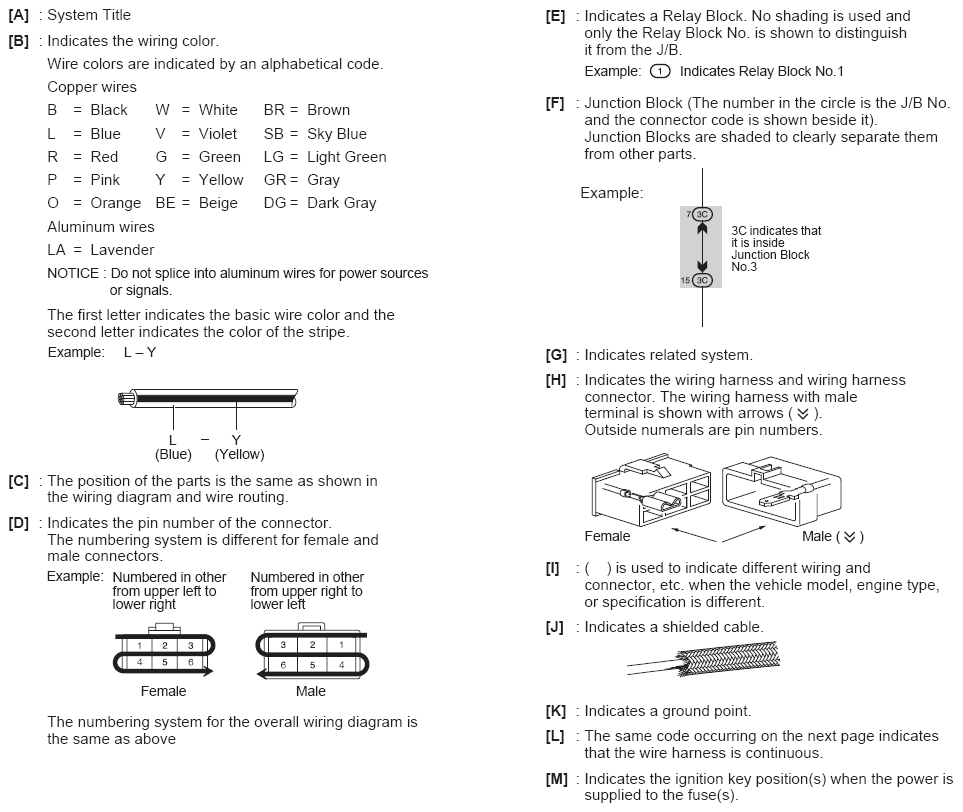

Fig 2: Electrical Wiring Diagram Legend Example
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
