Front Wiper And Washer Wiring Diagram

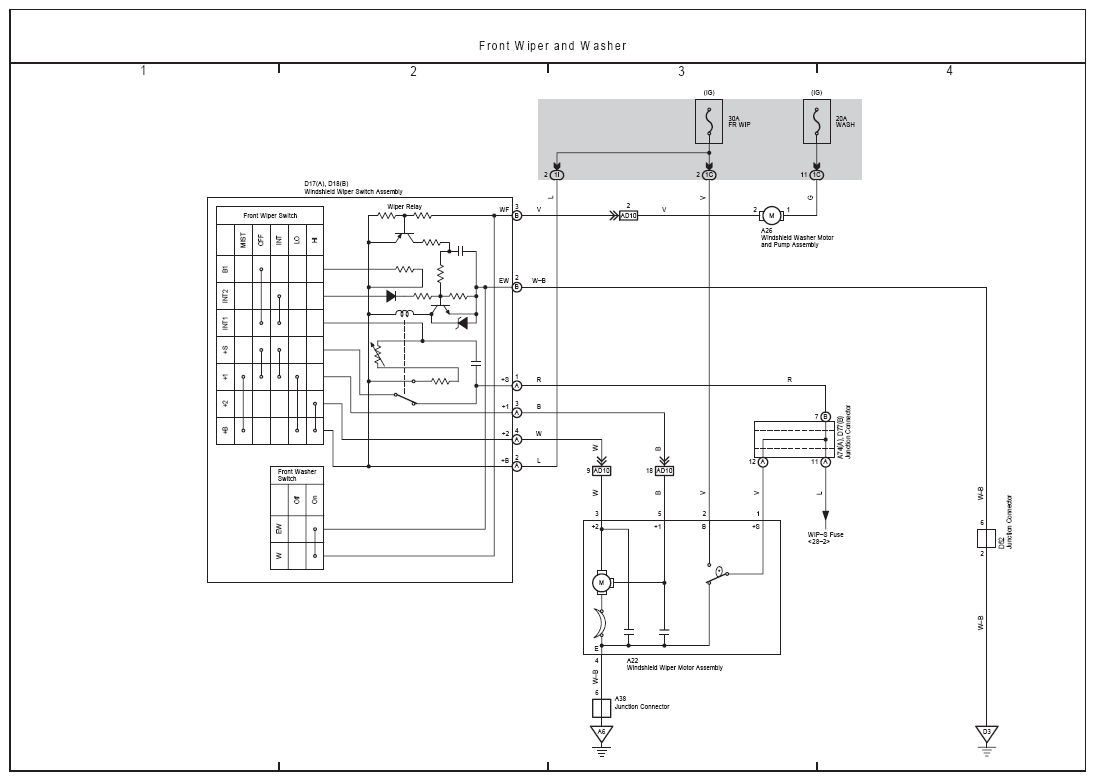

Fig 1: Front Wiper And Washer Electrical Wiring Diagram

G09098339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
