Toyota
>>
2013
>>
Highlander SE, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Overall Electrical Wiring Diagram (Hybrid)
>>
Overall Electrical Wiring Diagram
>>
Engine Immobiliser (Without Smart Key) System Wiring Diagram
Engine Immobiliser (Without Smart Key) System Wiring Diagram

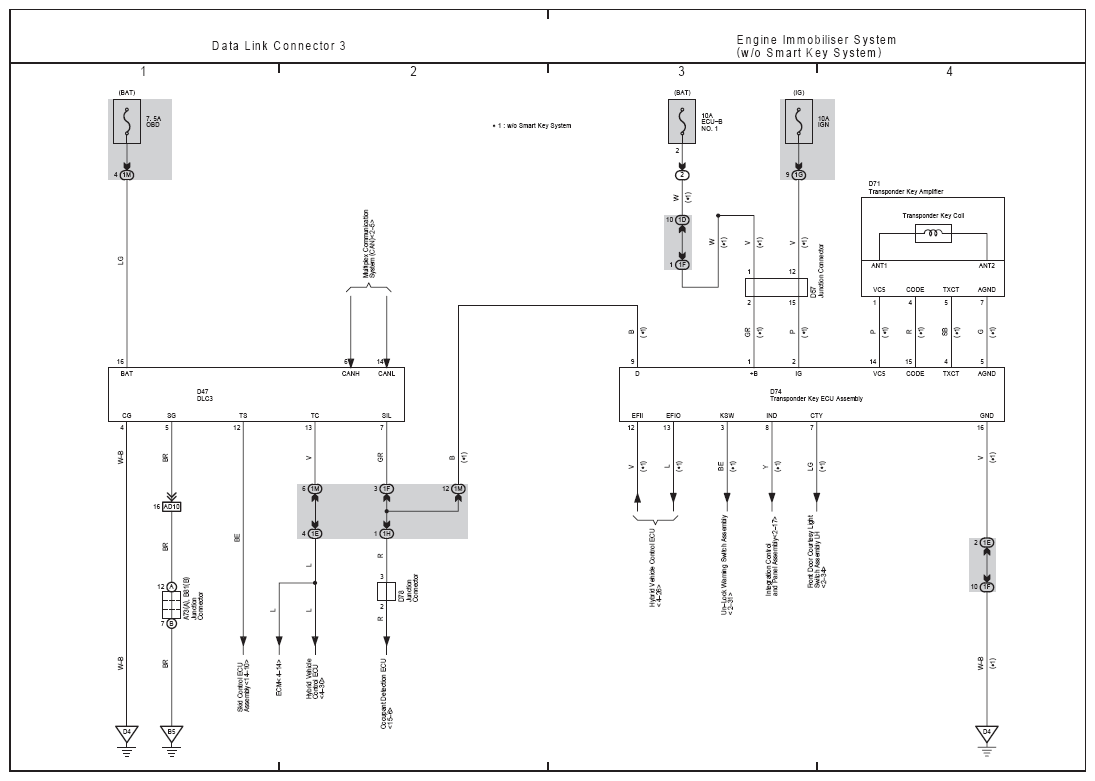

Fig 1: Engine Immobiliser (Without Smart Key) System Electrical Wiring Diagram
