Combination Meter Wiring Diagrams

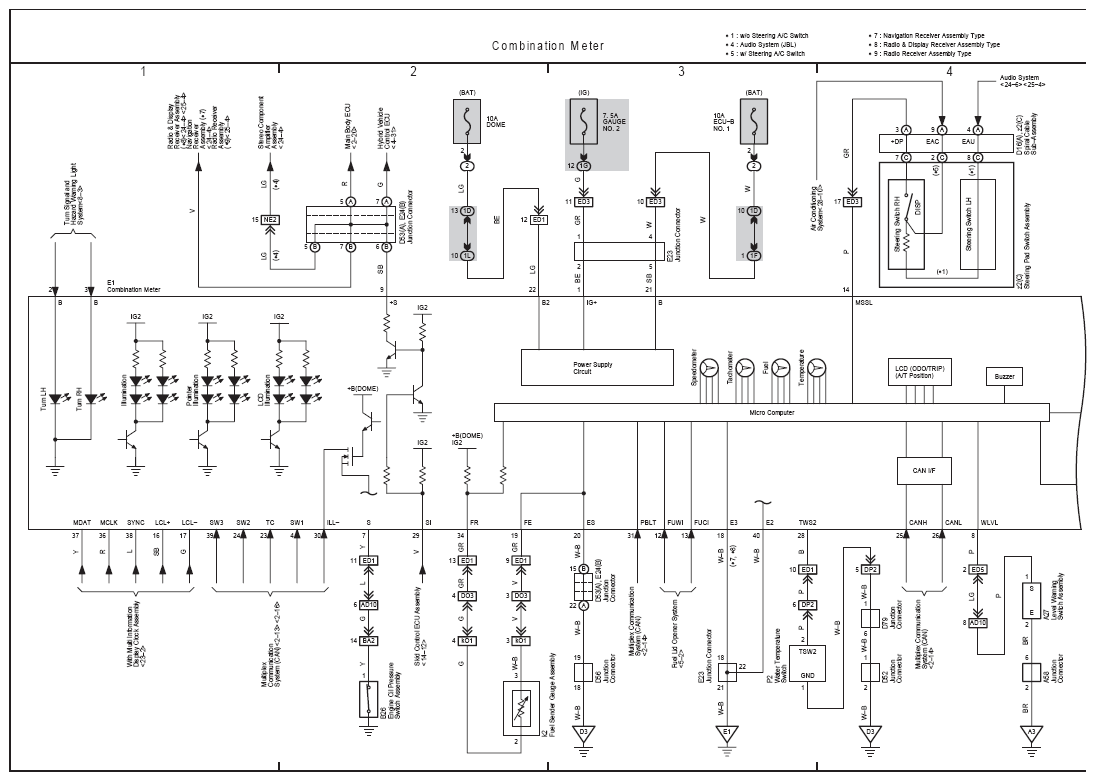

Fig 1: Combination Meter Electrical Wiring Diagram (1 Of 2)
G09098367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

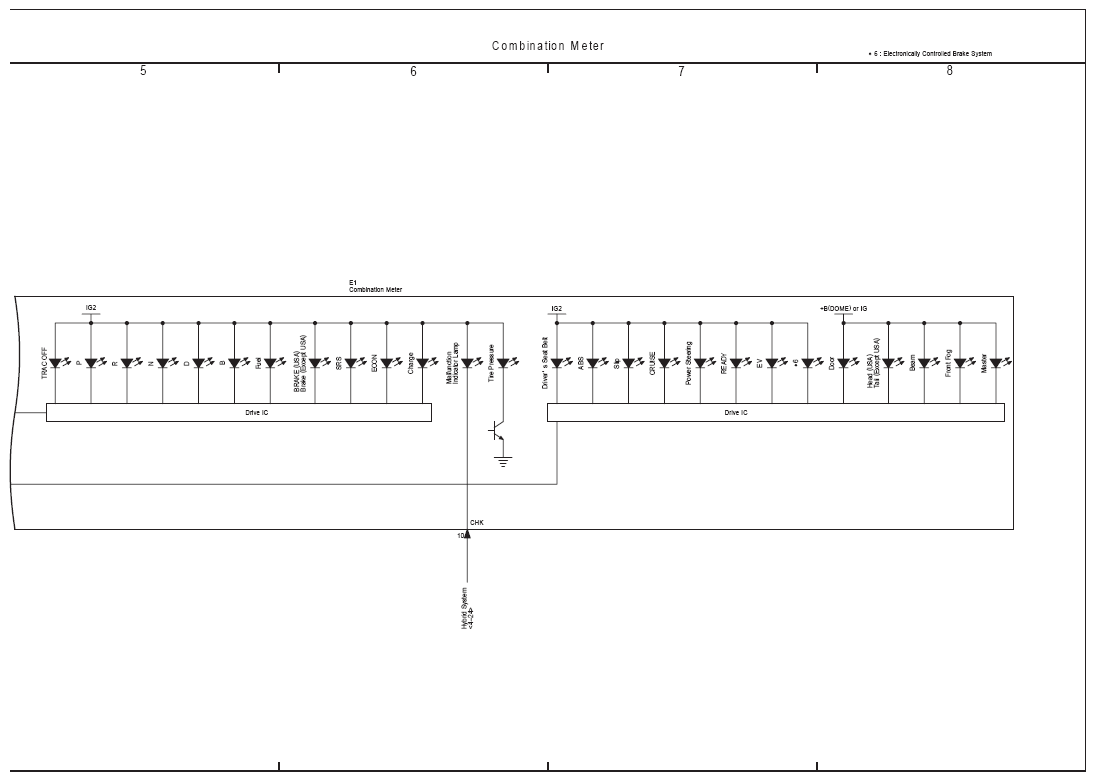

Fig 2: Combination Meter Electrical Wiring Diagram (2 Of 2)
G09098368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
