OEM Overall Electrical Wiring Diagram (Hybrid)
>>
Overall Electrical Wiring Diagram
>>
Automatic Glare-Resistant EC Mirror Wiring Diagram
Automatic Glare-Resistant EC Mirror Wiring Diagram

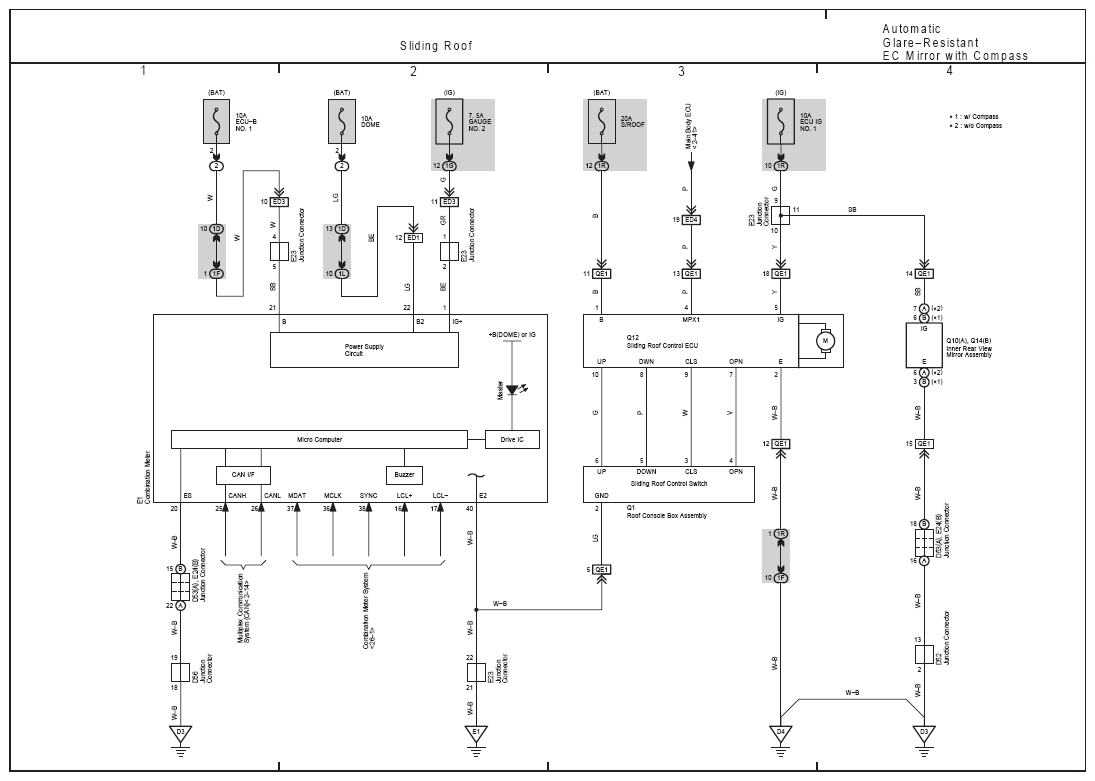

Fig 1: Automatic Glare-Resistant EC Mirror Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
