Audio, Navigation And Parking Assist (Rear View Monitor With Navigation And JBL) Wiring Diagrams

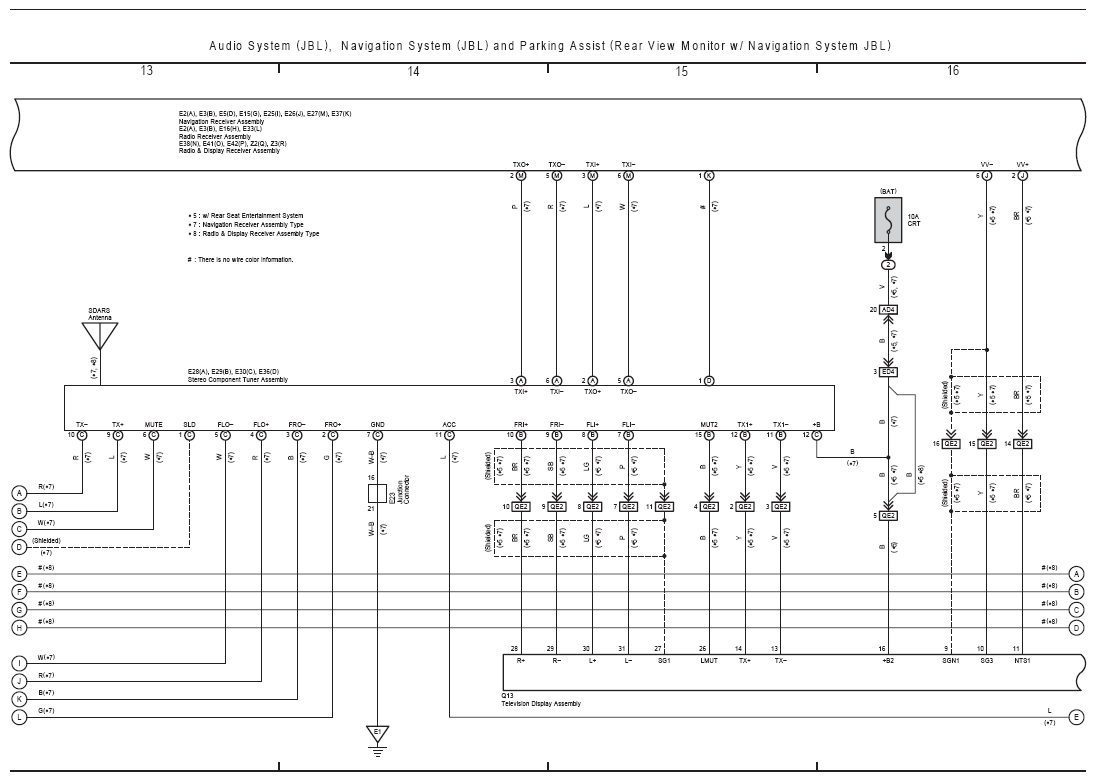

Fig 1: Audio, Navigation And Parking Assist (Rear View Monitor With Navigation And JBL) Electrical Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

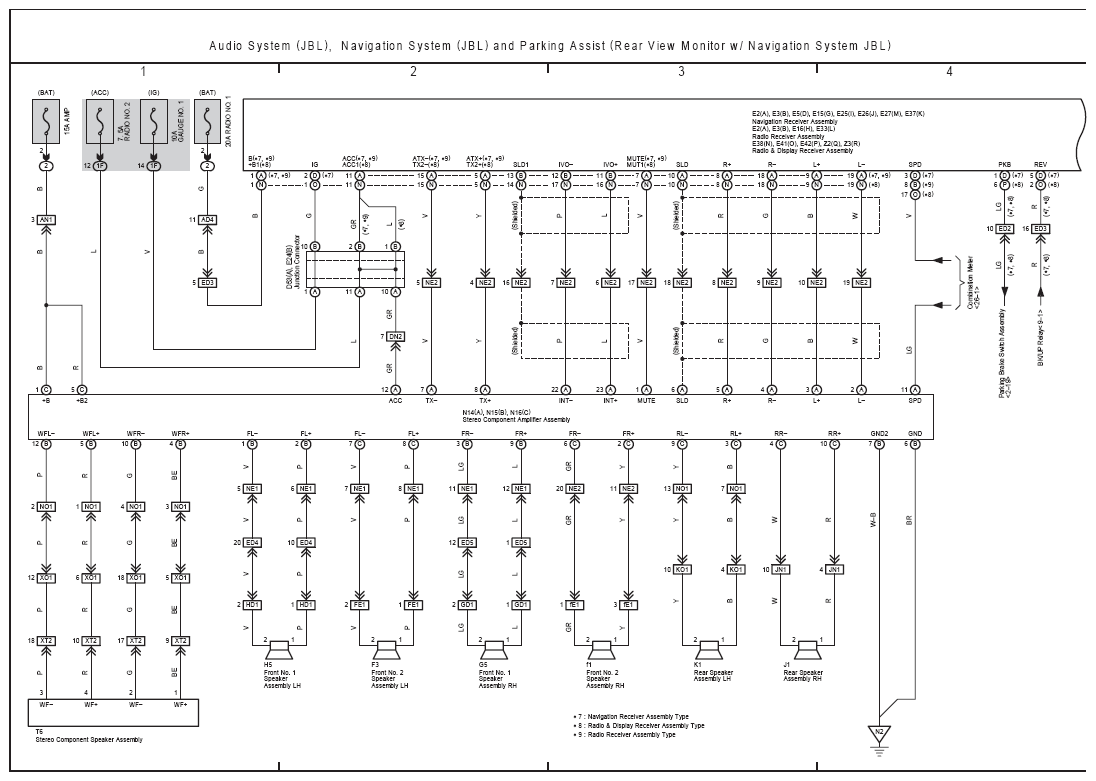

Fig 2: Audio, Navigation And Parking Assist (Rear View Monitor With Navigation And JBL) Electrical Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

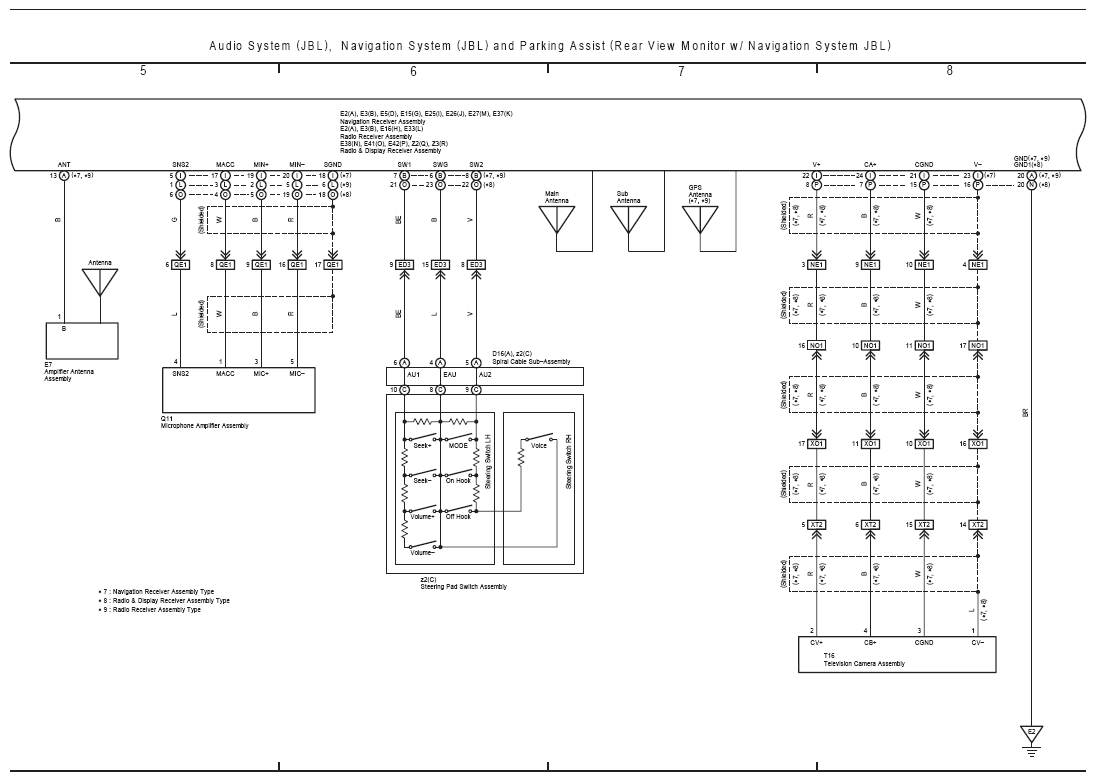

Fig 3: Audio, Navigation And Parking Assist (Rear View Monitor With Navigation And JBL) Electrical Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

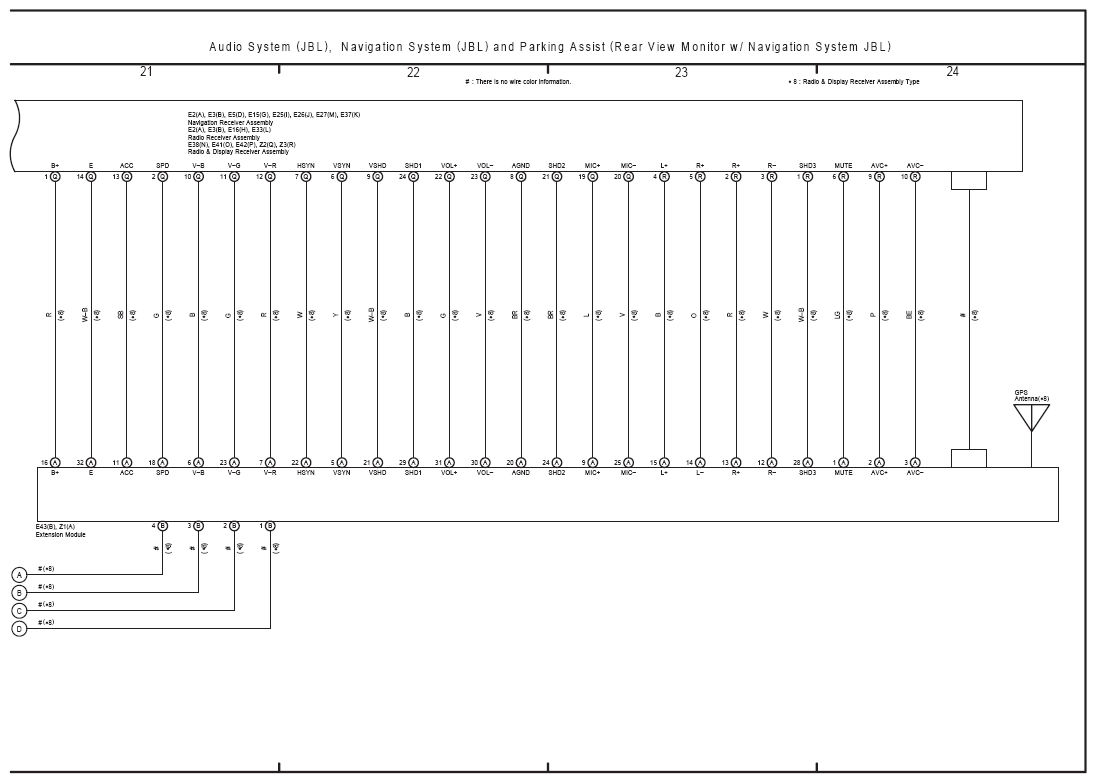

Fig 4: Audio, Navigation And Parking Assist (Rear View Monitor With Navigation And JBL) Electrical Wiring Diagram (4 Of 6)

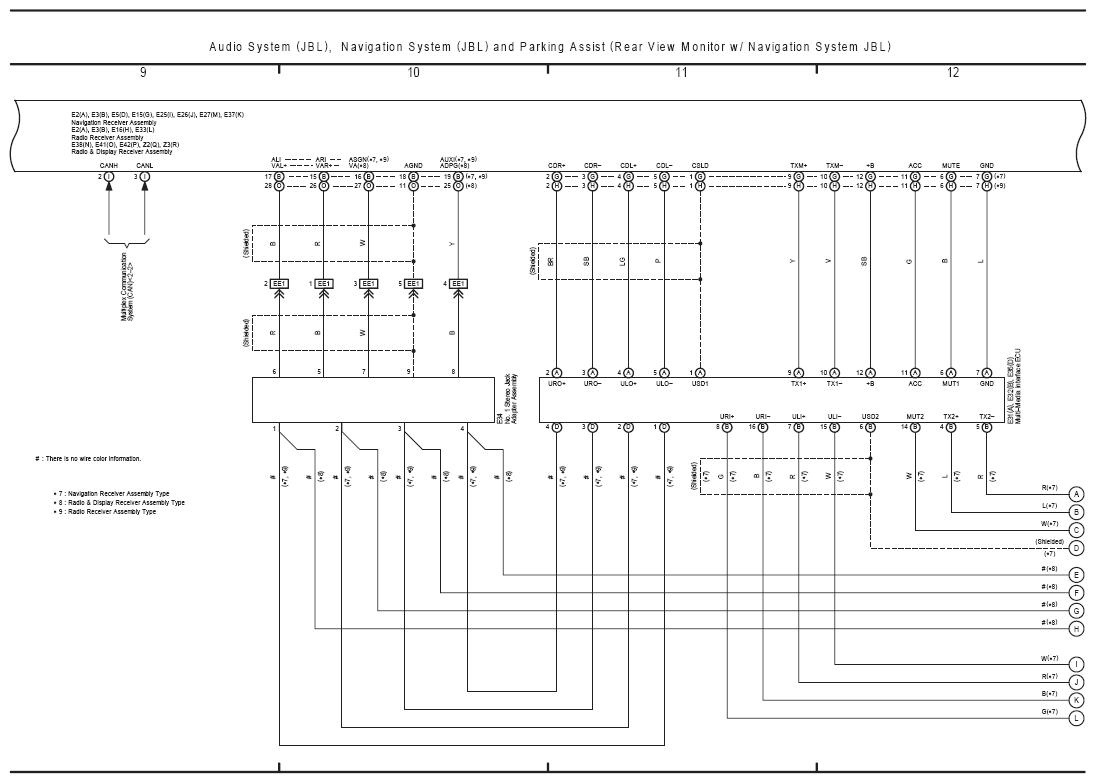

Fig 5: Audio, Navigation And Parking Assist (Rear View Monitor With Navigation And JBL) Electrical Wiring Diagram (5 Of 6)

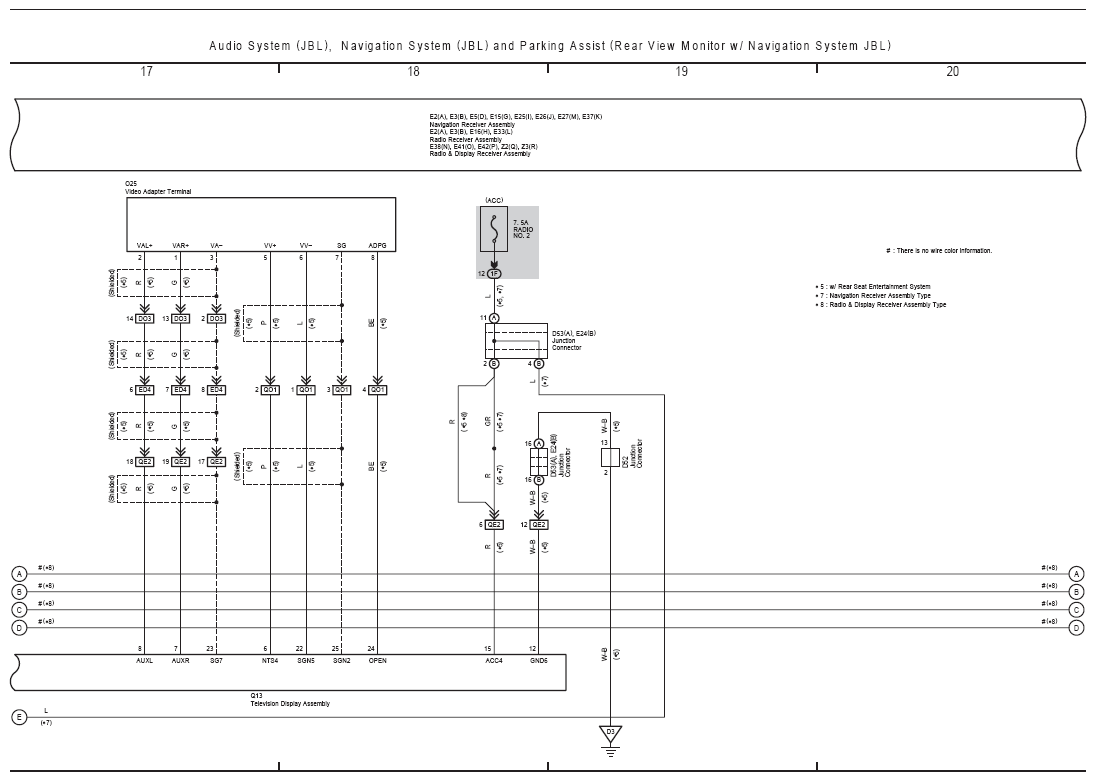

Fig 6: Audio, Navigation And Parking Assist (Rear View Monitor With Navigation And JBL) Electrical Wiring Diagram (6 Of 6)
