Audio And Parking Assist (Rear View Monitor With Extension Module Except JBL) System Wiring Diagrams

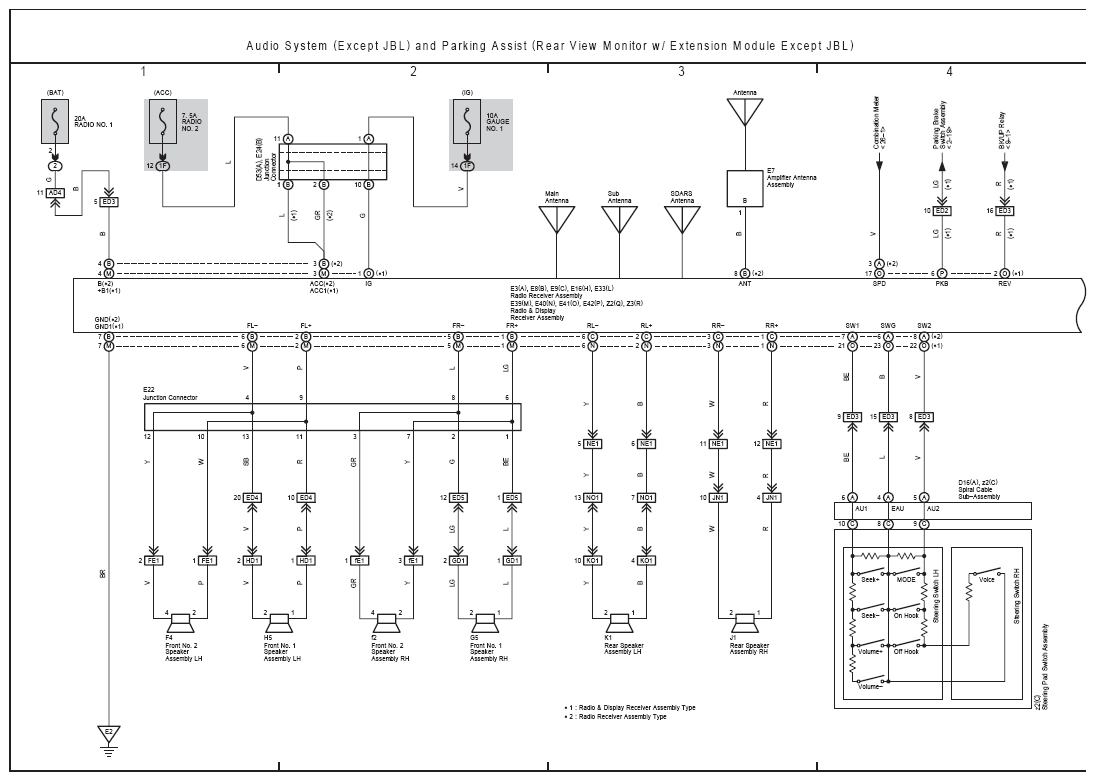

Fig 1: Audio And Parking Assist (Rear View Monitor With Extension Module Except JBL) System Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

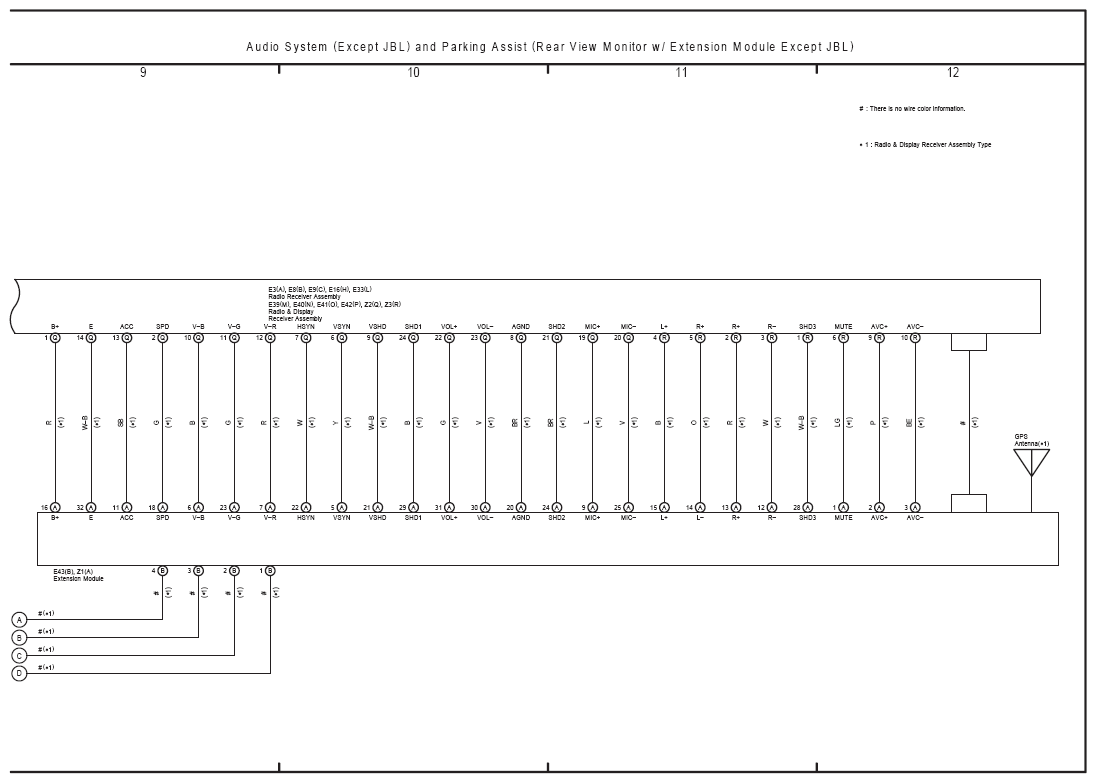

Fig 2: Audio And Parking Assist (Rear View Monitor With Extension Module Except JBL) System Electrical Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

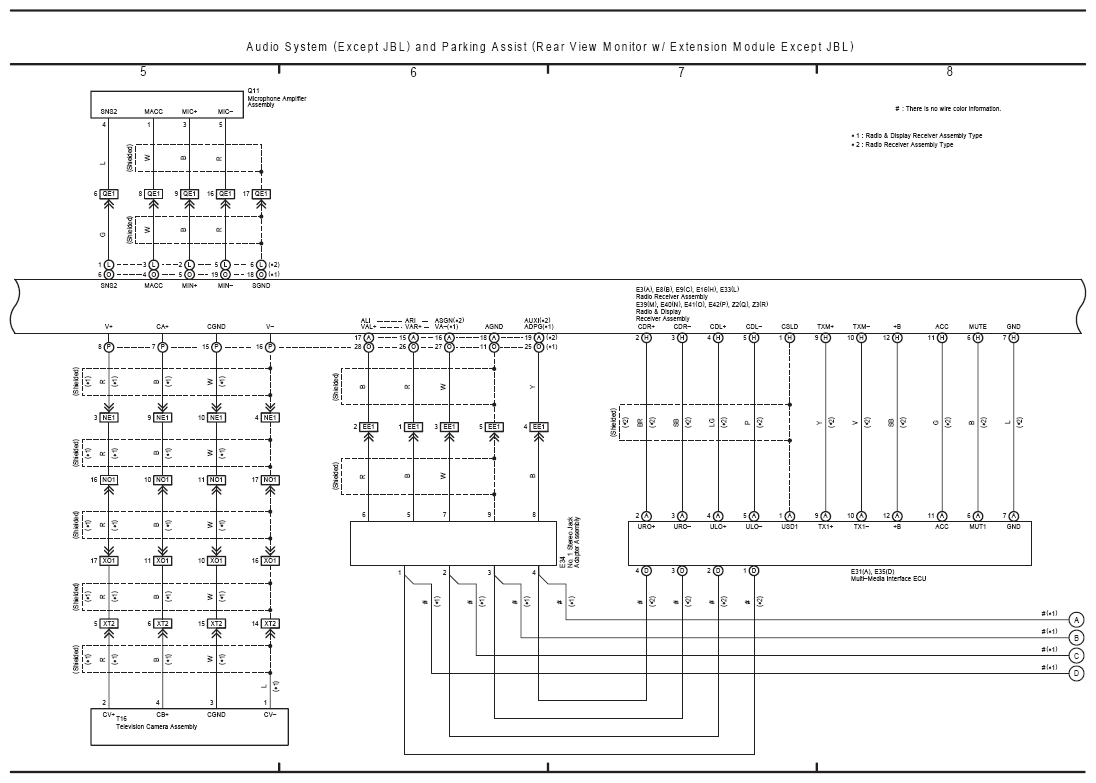

Fig 3: Audio And Parking Assist (Rear View Monitor With Extension Module Except JBL) System Electrical Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
