SRS Wiring Diagrams

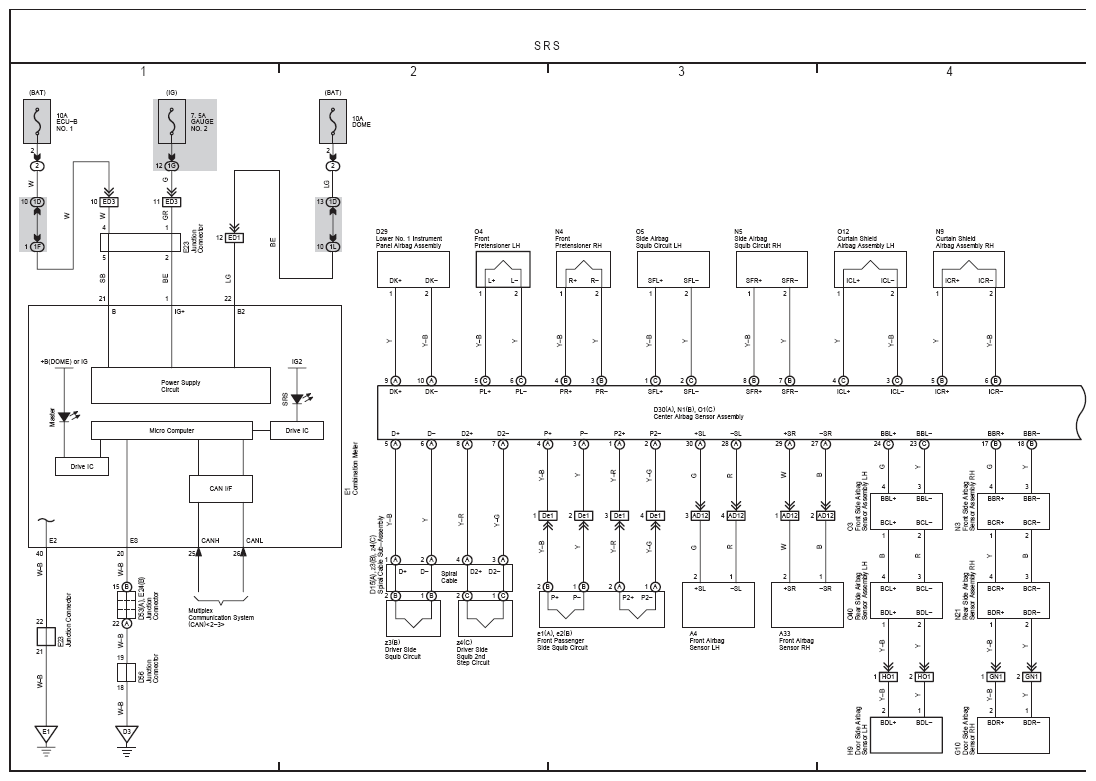

Fig 1: SRS Electrical Wiring Diagram (1 Of 2)
G09099193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

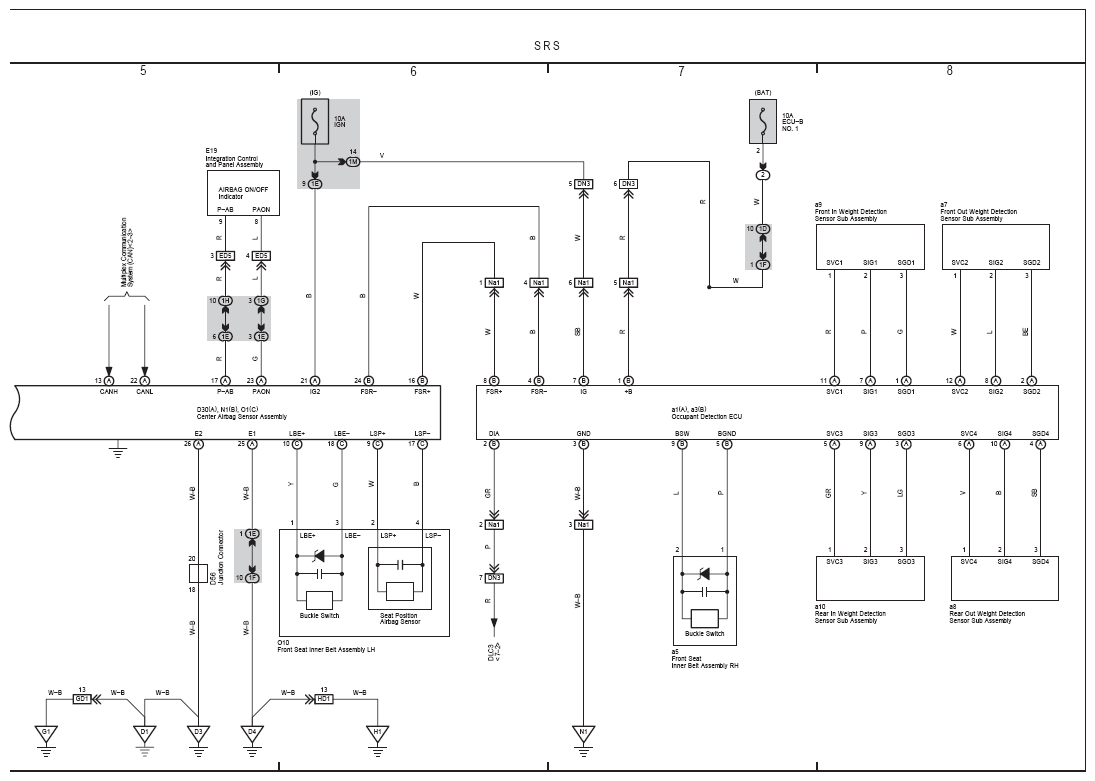

Fig 2: SRS Electrical Wiring Diagram (2 Of 2)
G09099194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
