Remote Control Mirror Wiring Diagram

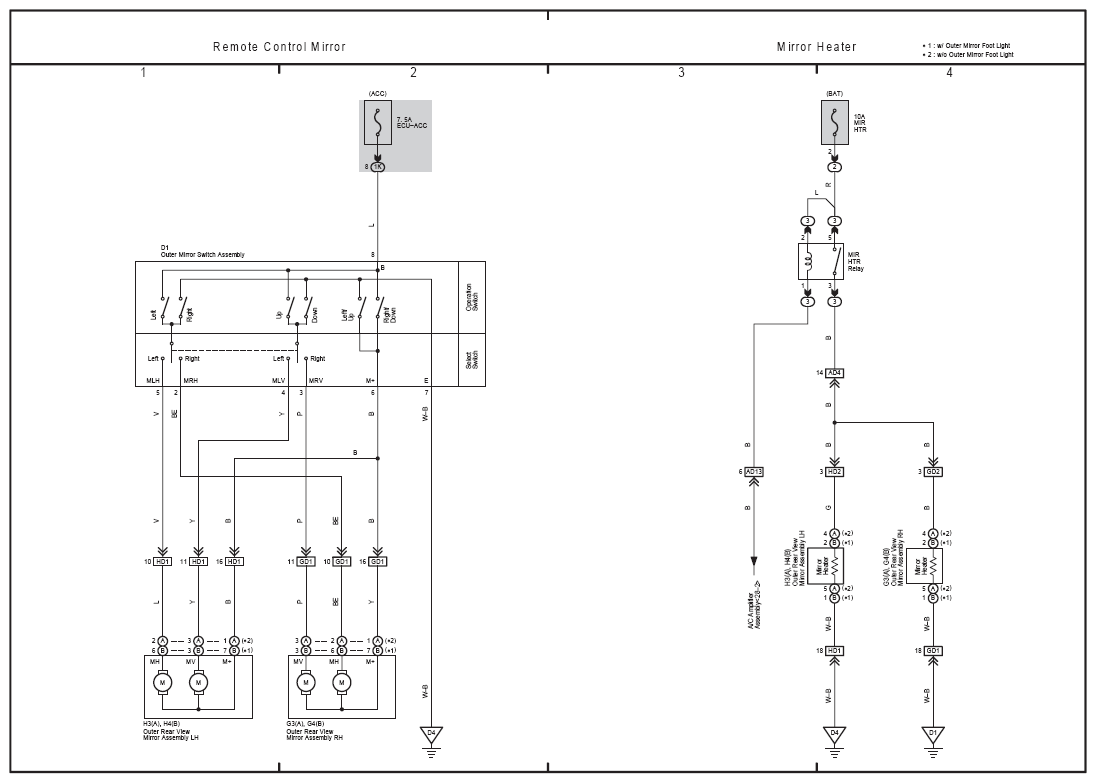

Fig 1: Remote Control Mirror Electrical Wiring Diagram

G09099200

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
