Power Source Wiring Diagrams

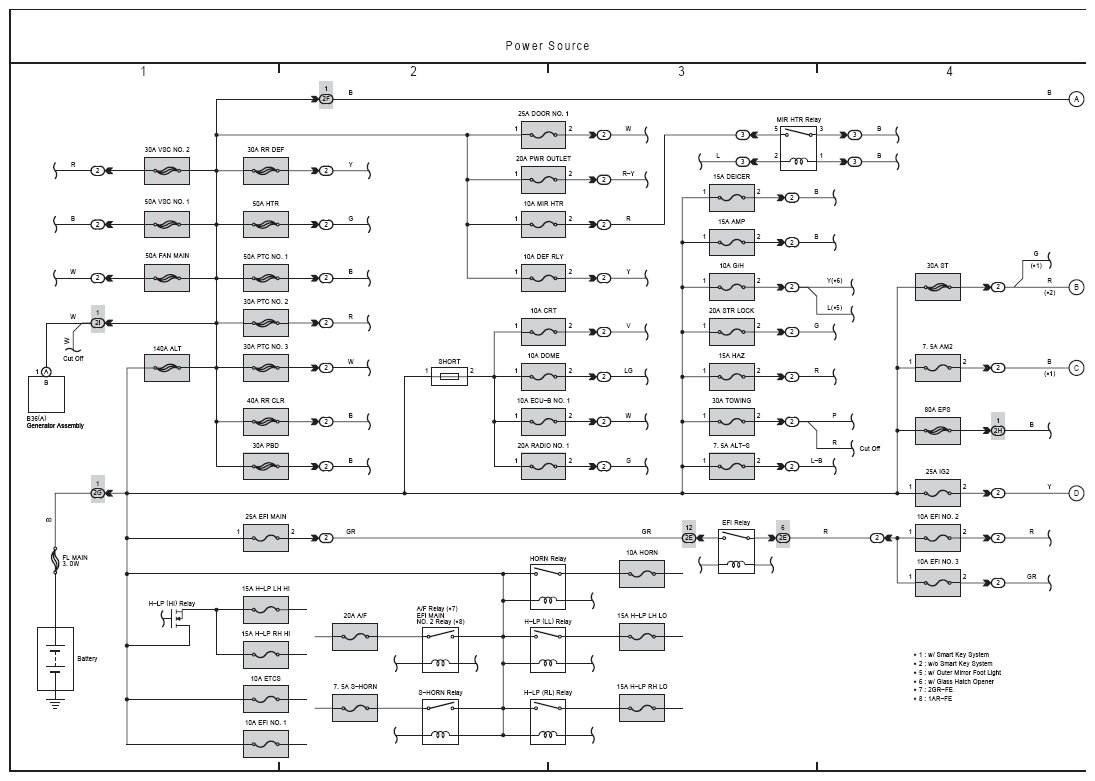

Fig 1: Power Source Electrical Wiring Diagram (1 Of 2)
G09099155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

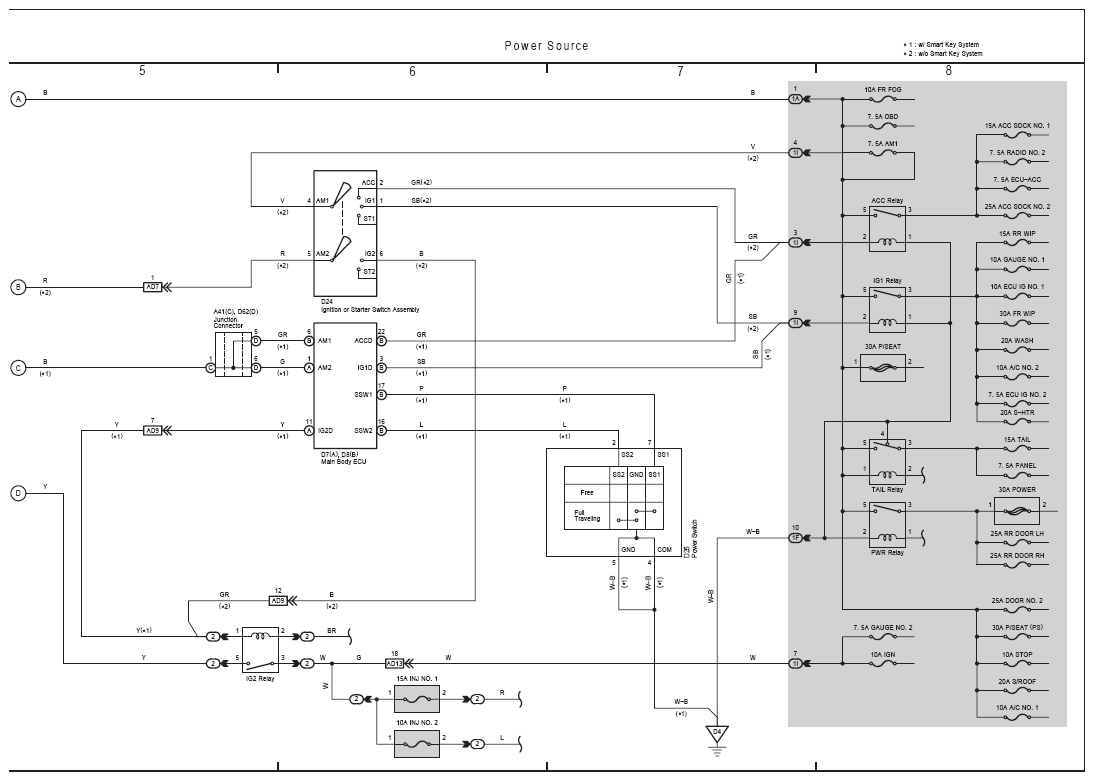

Fig 2: Power Source Electrical Wiring Diagram (2 Of 2)
G09099156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
