Overall Electrical Wiring Diagram
>>
Power Seat (Driver's Seat) Power Back Door Wiring Diagram
Power Seat (Driver's Seat) Power Back Door Wiring Diagram

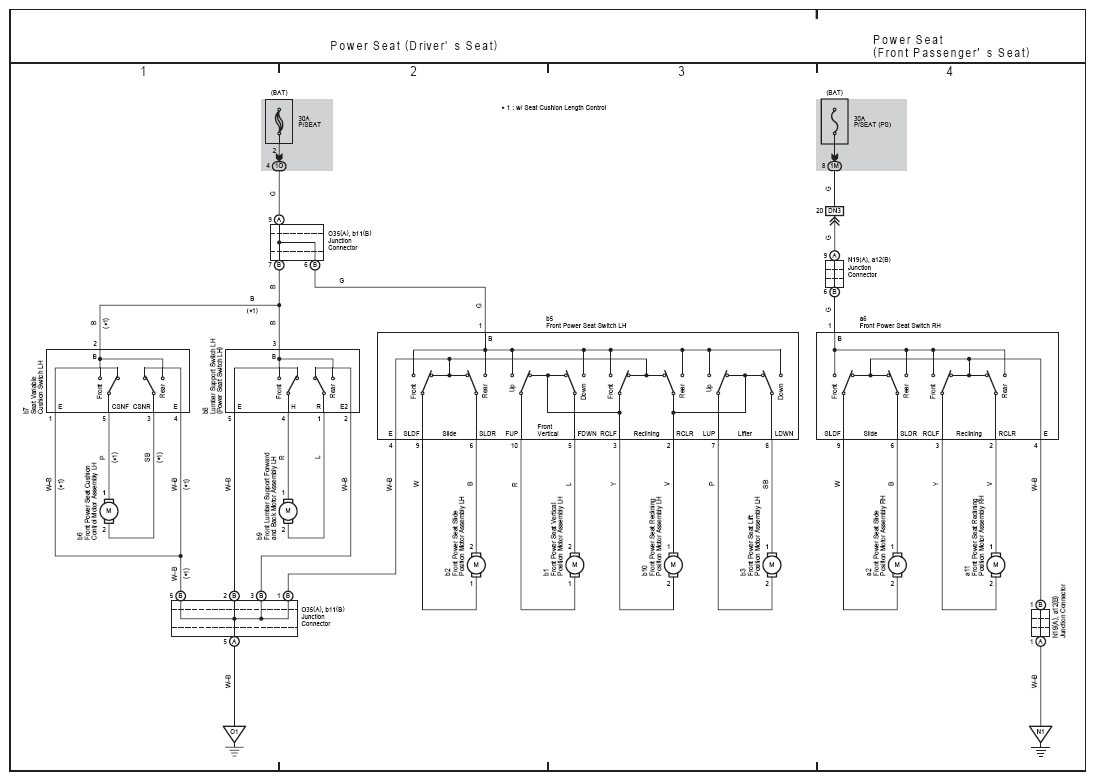

Fig 1: Power Seat (Driver's Seat) Power Back Door Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
