Power Outlet (12V) Wiring Diagram

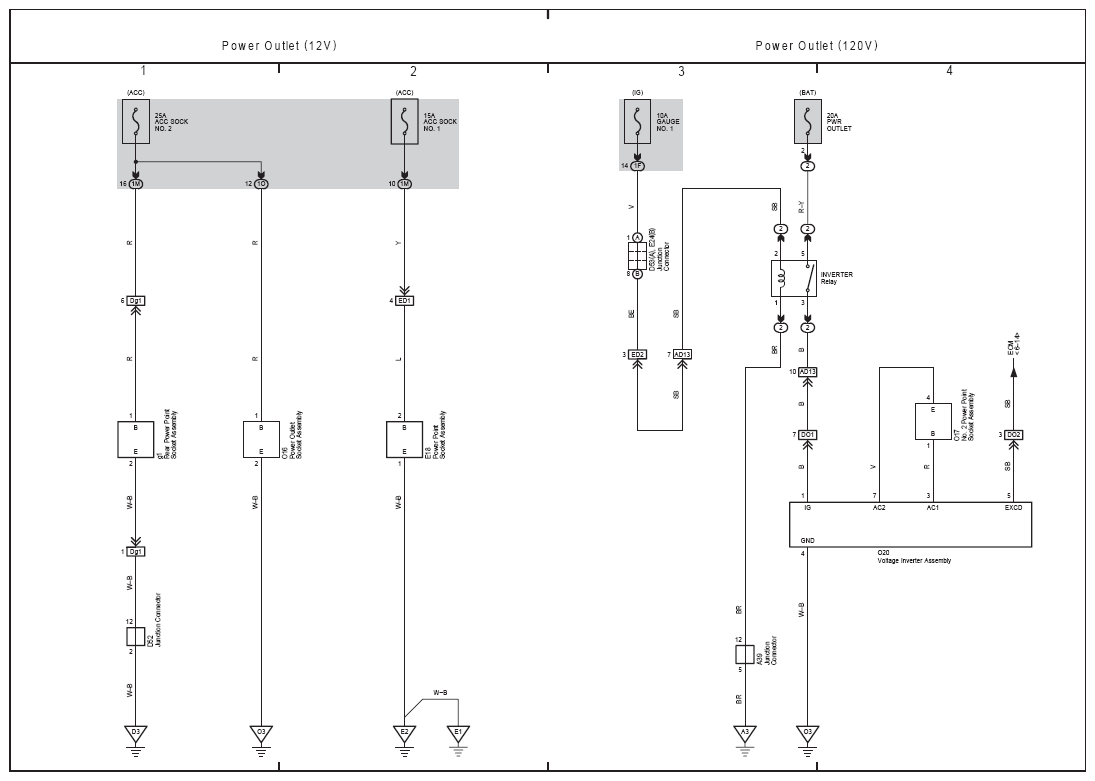

Fig 1: Power Outlet (12V) Electrical Wiring Diagram

G09099190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
