Multiplex Communication System Wiring Diagrams

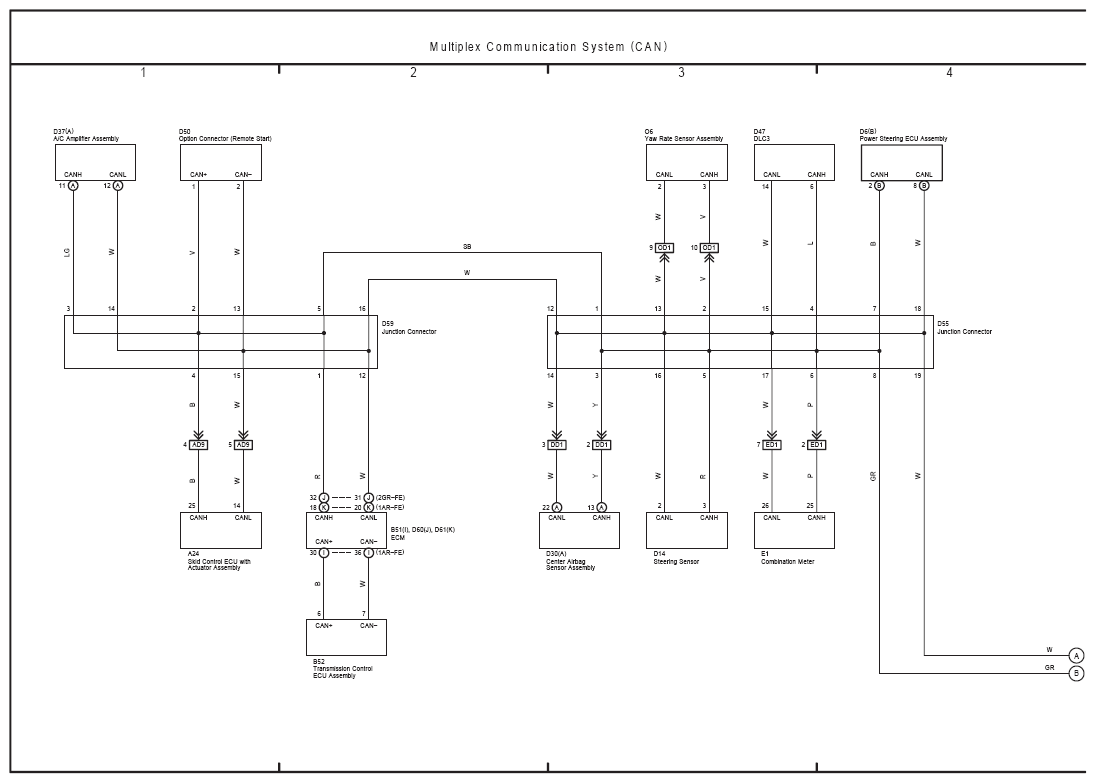

Fig 1: Multiplex Communication System Electrical Wiring Diagram (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

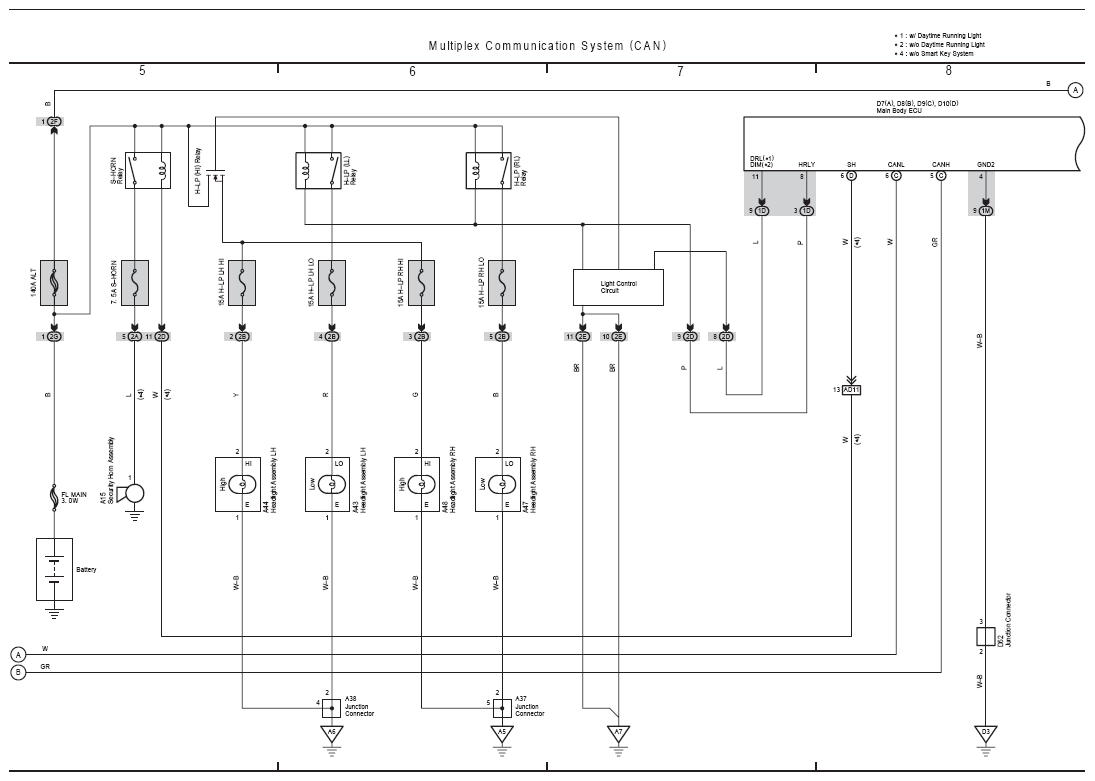

Fig 2: Multiplex Communication System Electrical Wiring Diagram (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

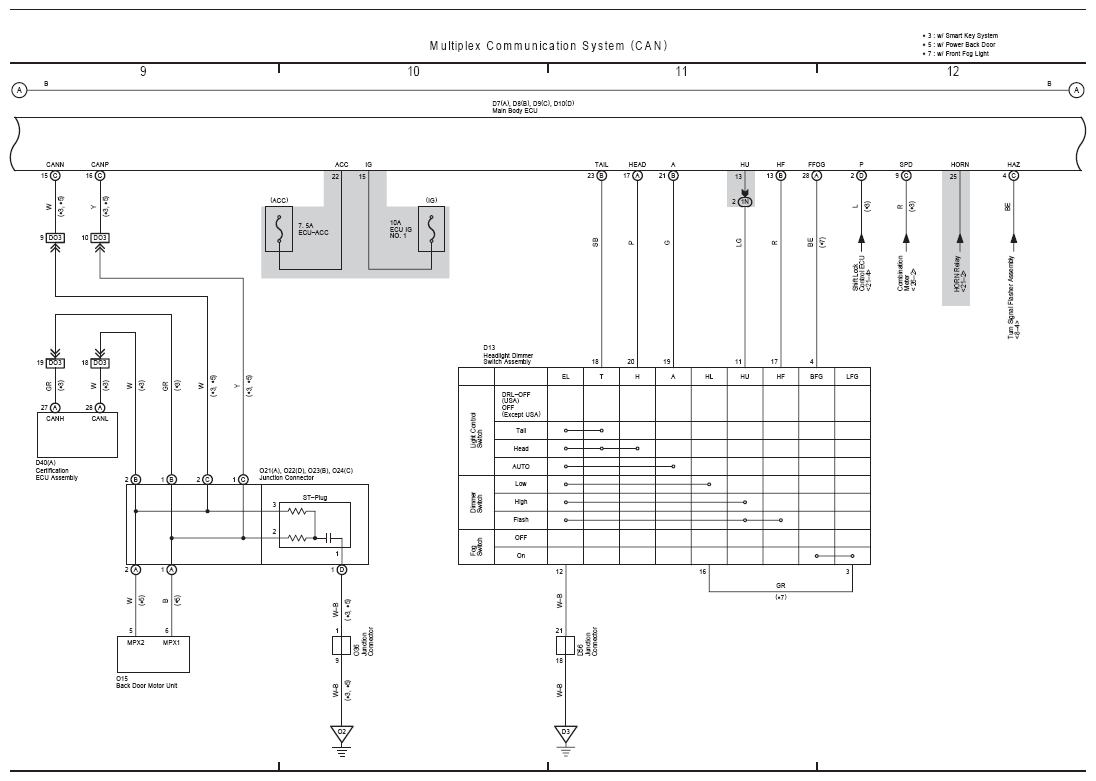

Fig 3: Multiplex Communication System Electrical Wiring Diagram (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

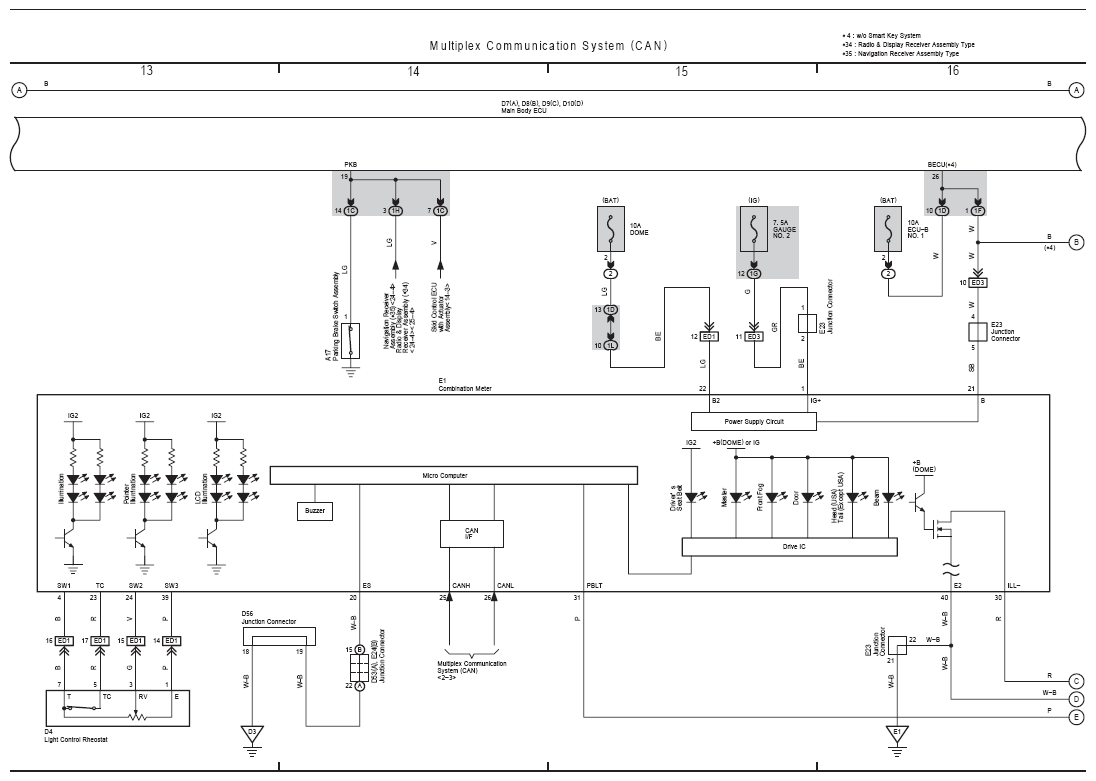

Fig 4: Multiplex Communication System Electrical Wiring Diagram (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

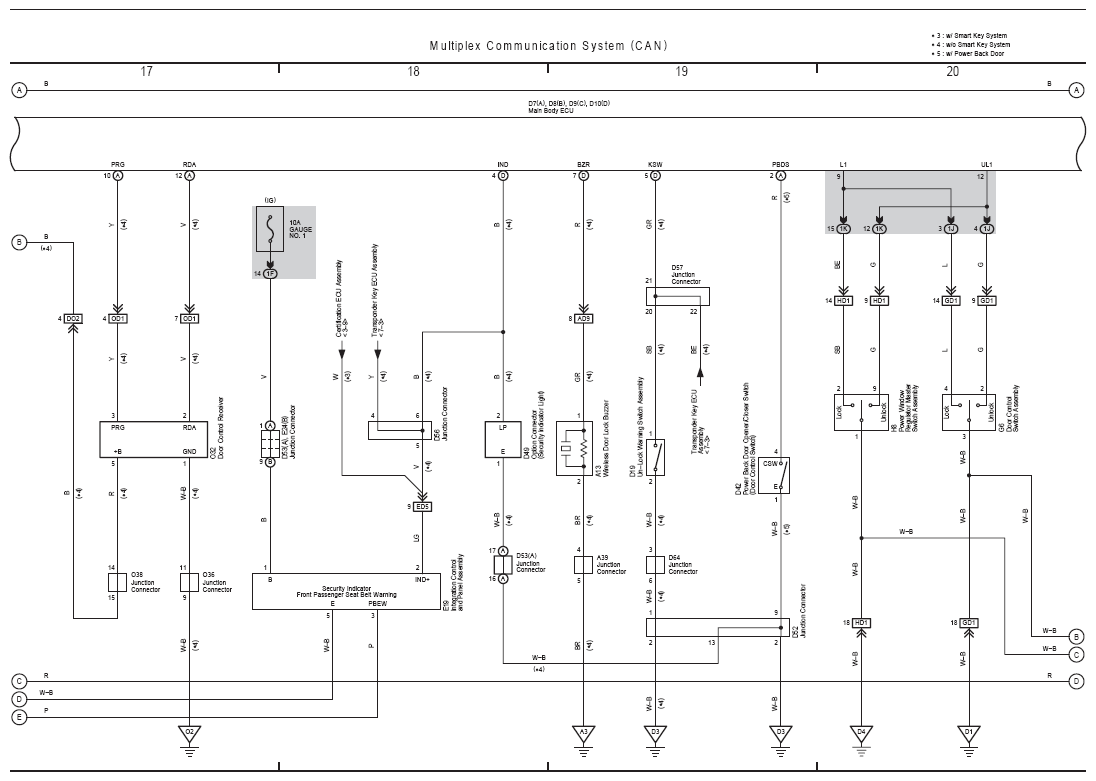

Fig 5: Multiplex Communication System Electrical Wiring Diagram (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

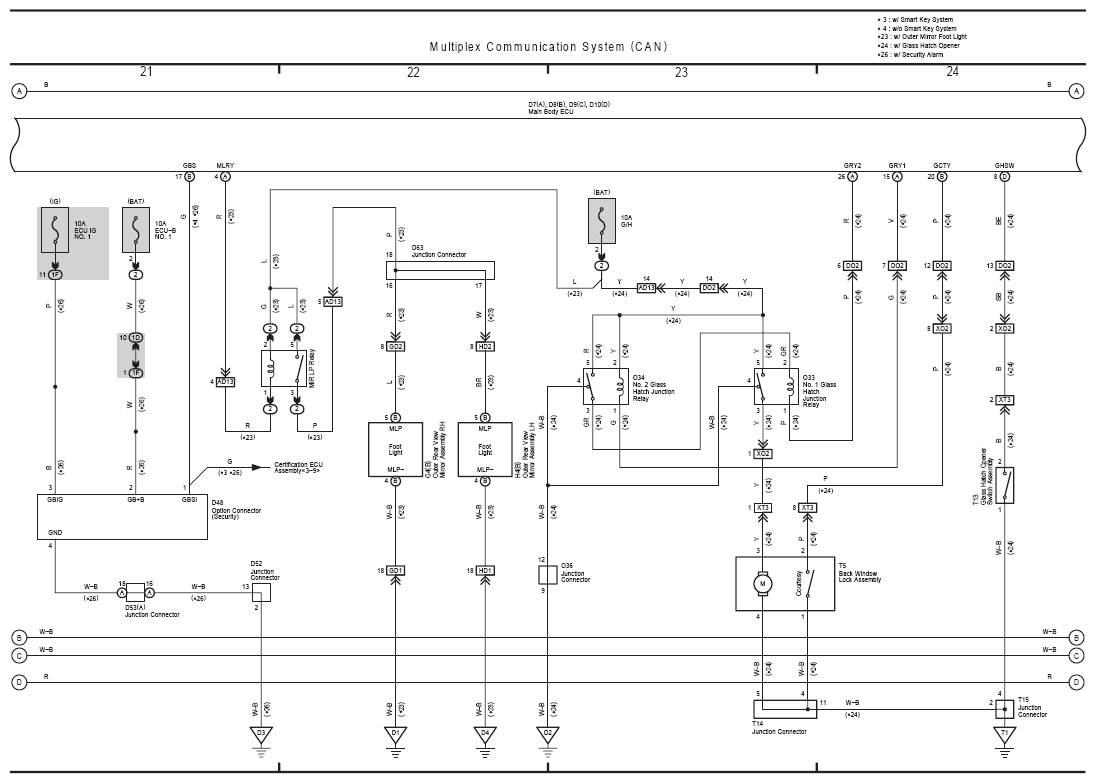

Fig 6: Multiplex Communication System Electrical Wiring Diagram (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

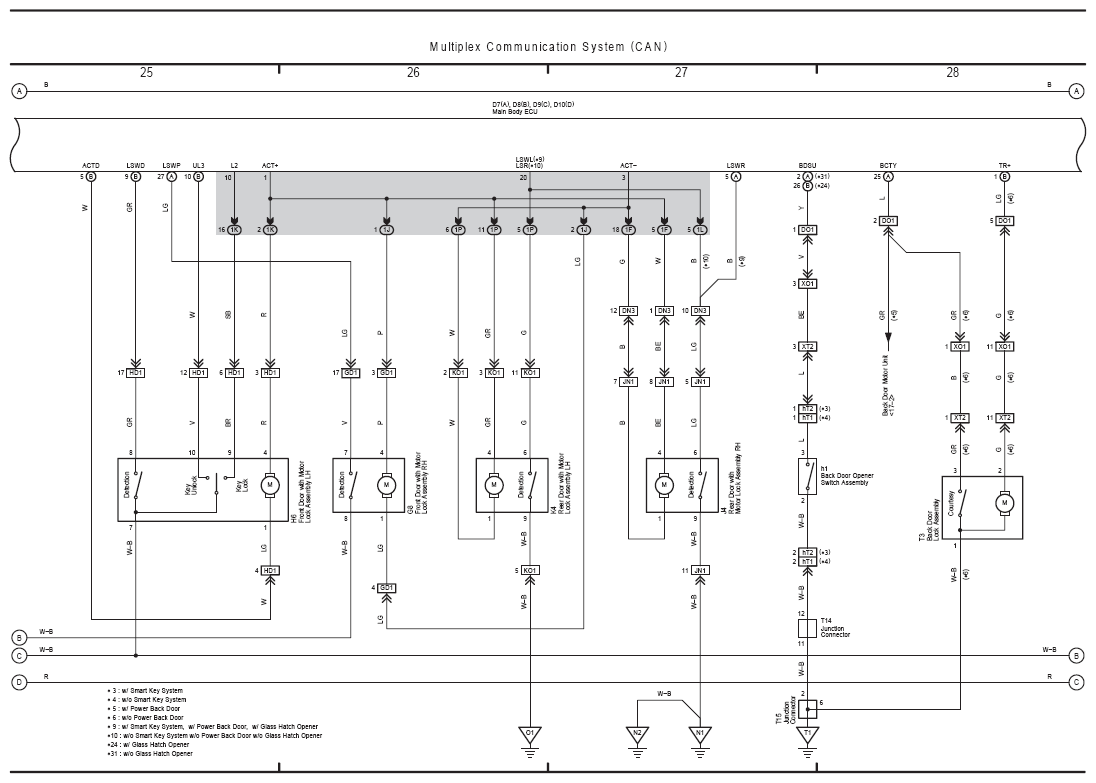

Fig 7: Multiplex Communication System Electrical Wiring Diagram (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

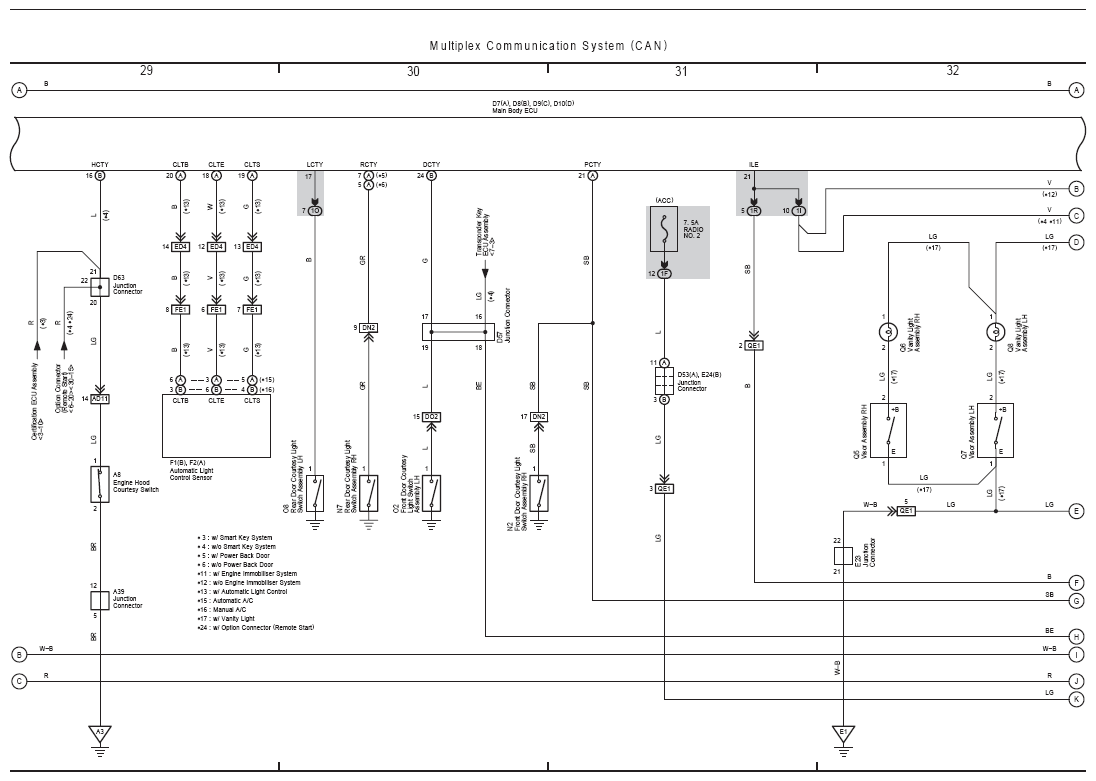

Fig 8: Multiplex Communication System Electrical Wiring Diagram (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

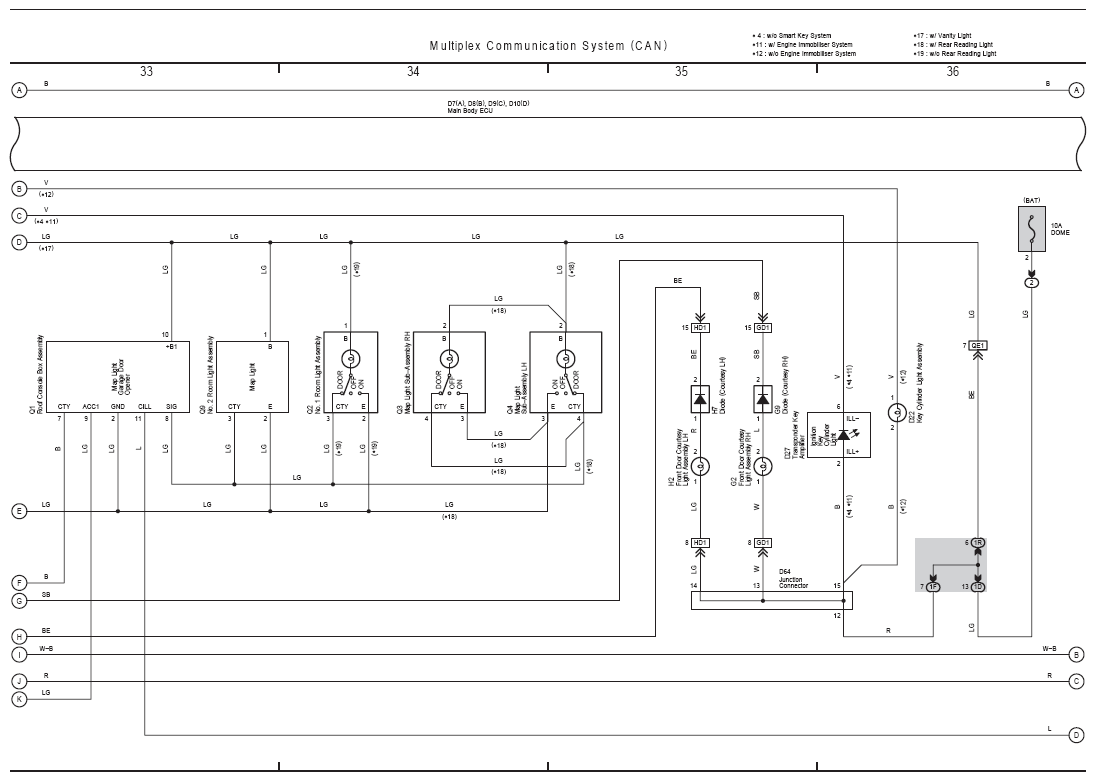

Fig 9: Multiplex Communication System Electrical Wiring Diagram (9 Of 13)

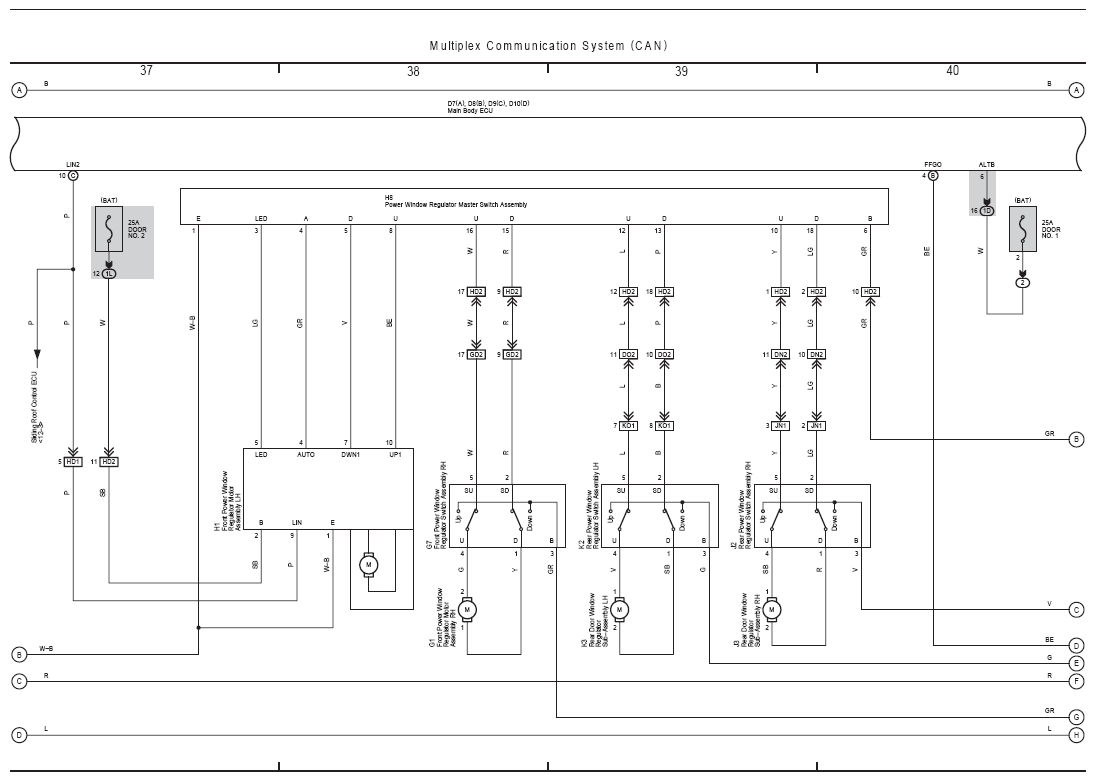

Fig 10: Multiplex Communication System Electrical Wiring Diagram (10 Of 13)

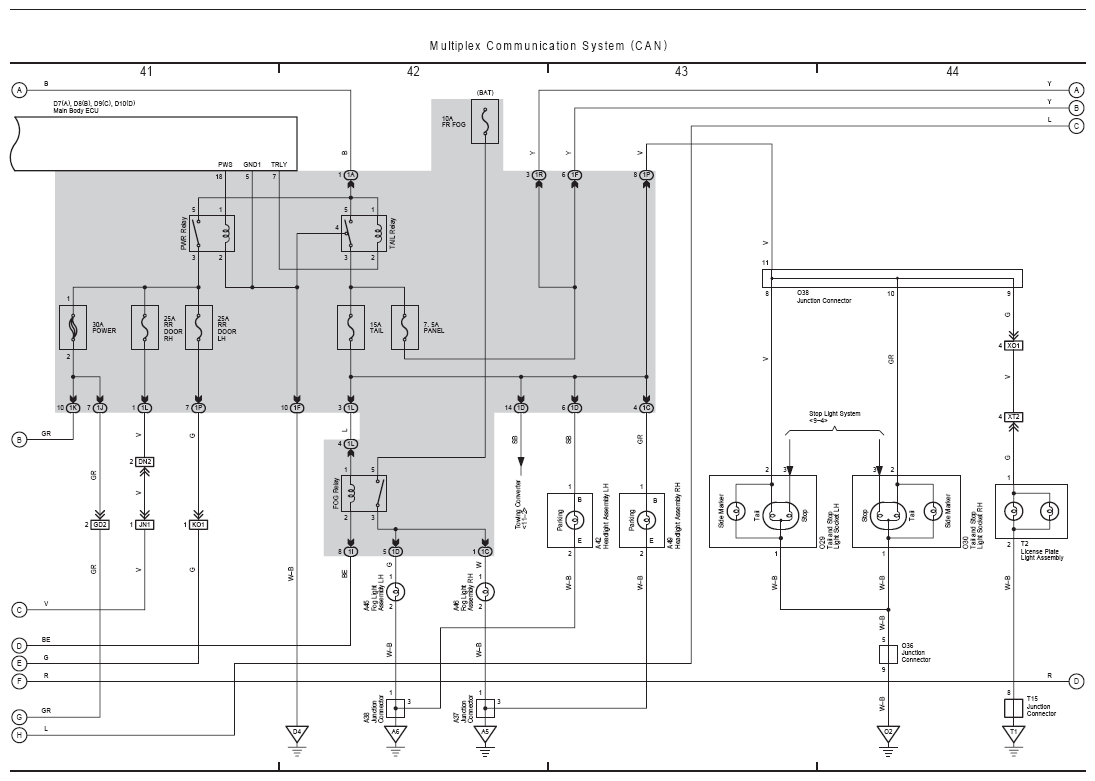

Fig 11: Multiplex Communication System Electrical Wiring Diagram (11 Of 13)

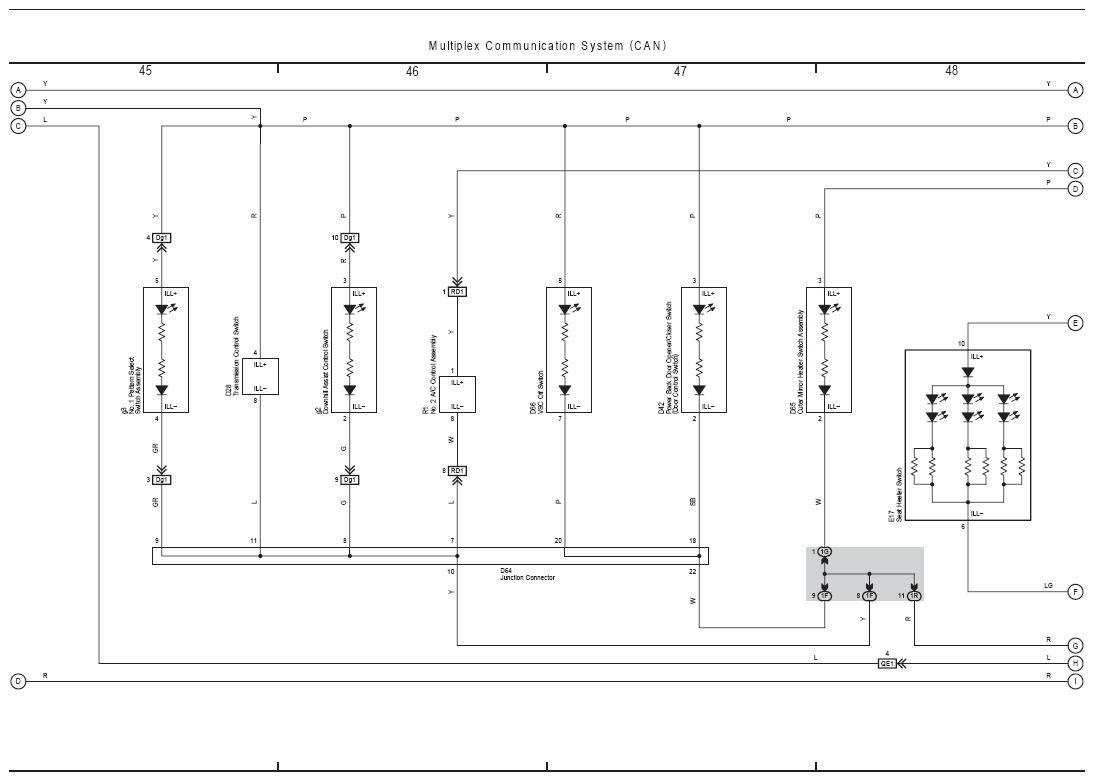

Fig 12: Multiplex Communication System Electrical Wiring Diagram (12 Of 13)

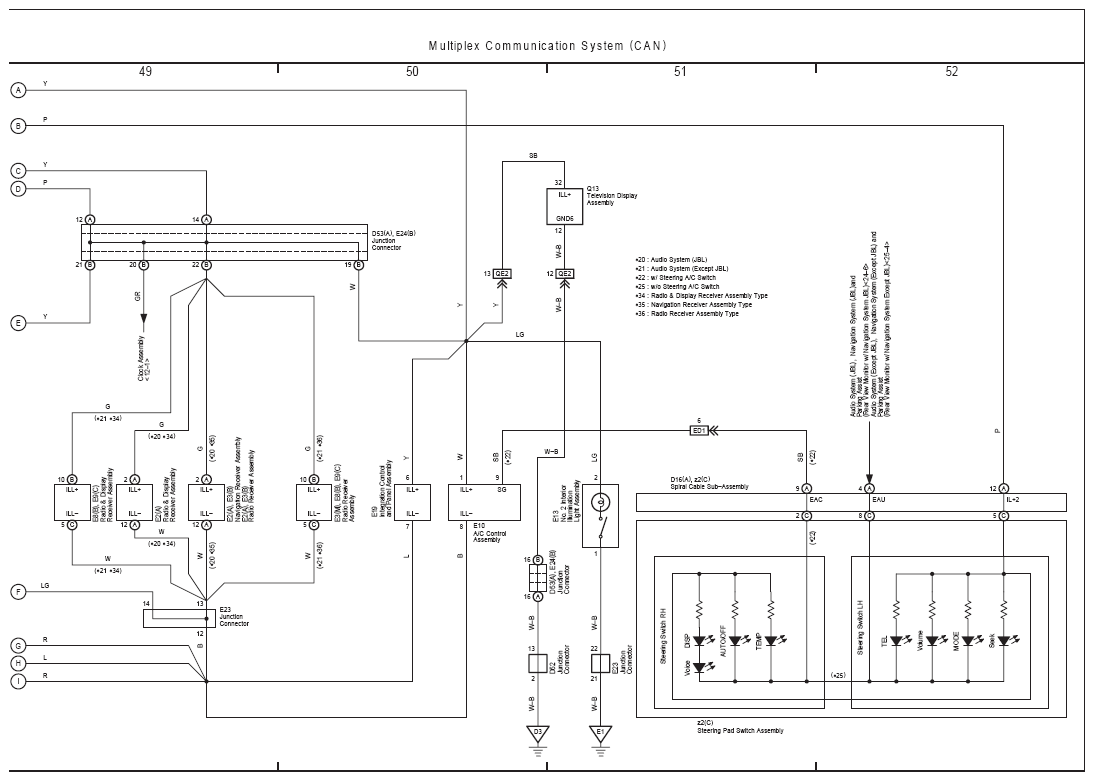

Fig 13: Multiplex Communication System Electrical Wiring Diagram (13 Of 13)
