Ignition (2GR-FE) Wiring Diagram

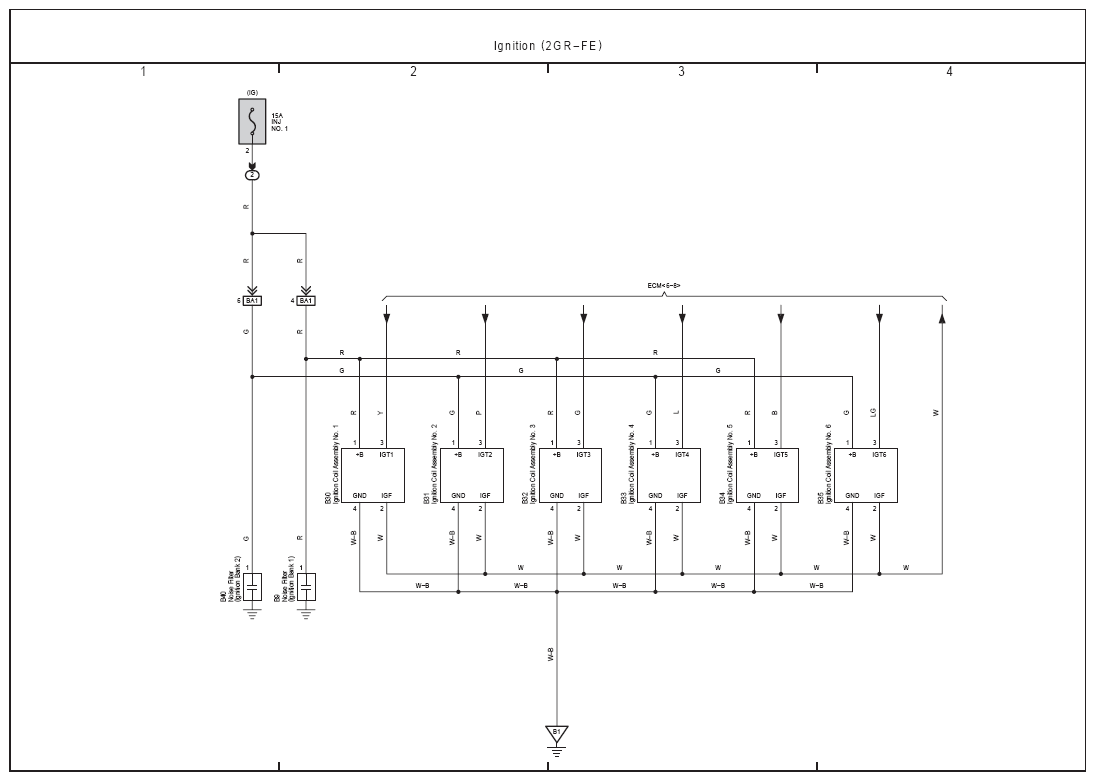

Fig 1: Ignition (2GR-FE) Electrical Wiring Diagram

G09099176

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
